Lovato three-pole disconnector for photovoltaic 40A 3P 800V GA040D
LOV GA040D
8013975180143
Lovato three-pole disconnector for photovoltaic installations, direct control execution complete with black handle, 40 Amps.
€23.44
€23.44
Tax included
Tax included
Items Available: 294
: 55
Frequently bought together
Features:

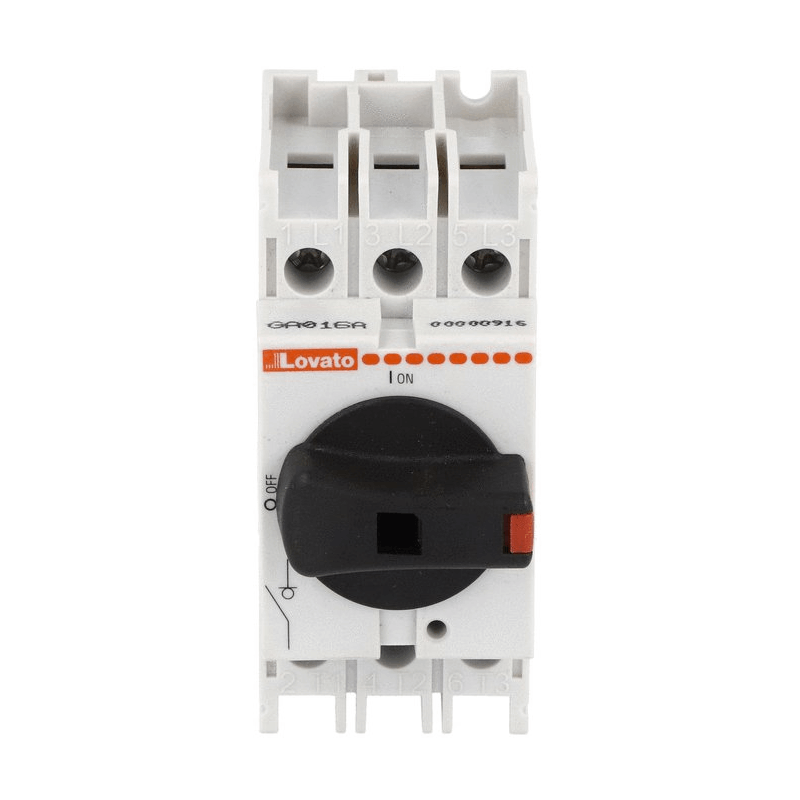

- Disconnect switch complete with black handle
- Conventional current Thermal in free air 40A
- Rated operating current poles in series 3 poles 500V 12A
- up to 40A (1000VDC), 32A (1200VDC), 25A (1500VDC)
- modular design
- jumpers for connecting poles in series supplied as standard with GD... series disconnect switches.
- available executions: direct control - door lock control. Use a switch with direct control and purchase extension and handle separately
- 35mm omega profile mounting or screw mounting
- Padlockable in position 0 without the use of accessories
Usage characteristics:
- rated insulation voltage for GA...D and GD... Ui: 1000V (pollution degree 3)
- Rated insulation voltage for GD... Ui: 1500V (pollution degree 2)
- rated impulse withstand voltage Uimp: 8kV
- mechanical endurance: 100,000 maneuvers GA040D 10,000 maneuvers GD...
- degree of protection: IP20
Approvals and compliance:
- Approvals obtained: EAC for GA...D; cULus according to UL60947-4-1/CSA C22.2. no. 60947-4-1 for GA040D and GAX42040D versions
- Compliant with standards: IEC/EN 60947-3, IEC/EN 60947-1, UL60947-4-1
There are no reviews
Data sheet
- Voltage: 800VAC
- Poles: 3P
- Degree of protection: IP20
- Amps: 40A
- Circuit Protections: Disconnectors
- Operating voltage: AC
