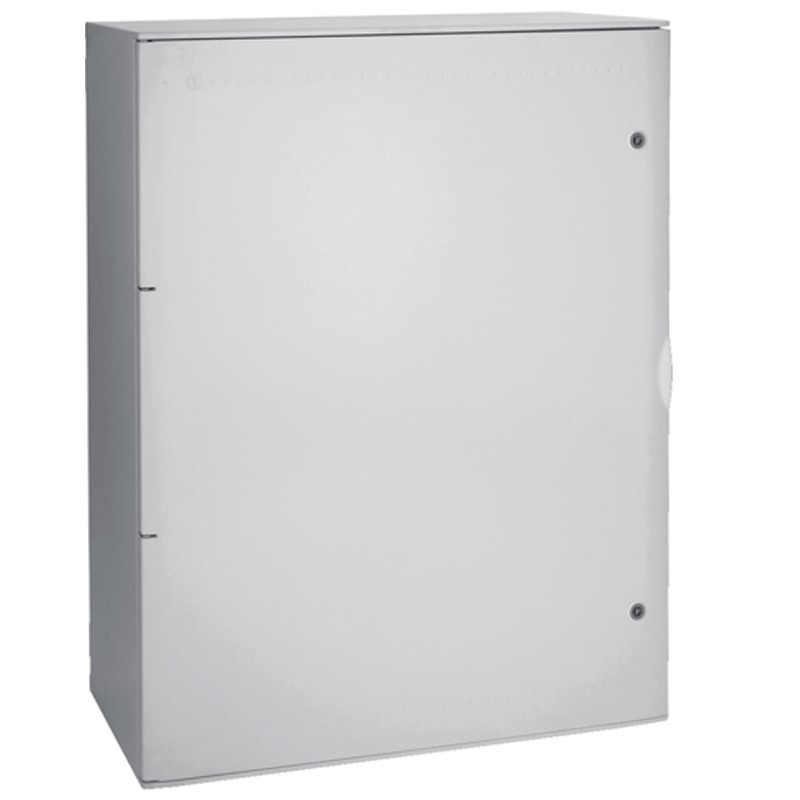

Bocchiotti Pedro blind box in fiberglass 190 modules IP66 B04608


IBO B04608 8015892046083

Bocchiotti VTR 07 blind fiberglass panel, Pedro line, with the following characteristics

  • 190 modules (on five rows)
  • Degree of protection of the enclosure IP66
  • Impact resistance degree IK10
  • Colour: grey RAL 7035
Request info about this product

Bocchiotti Pedro blind box in fiberglass 190 modules IP66 B04608

€793.30
€793.30

Bocchiotti Pedro blind box in fiberglass 190 modules IP66 B04608

€793.30
Tax included
klarna Pay in installments with Klarna
qty

Bocchiotti Pedro blind box in fiberglass 190 modules IP66 B04608

€793.30

Buy it within and receive it from Thursday, 4 July
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Bocchiotti series (Pedro line)
  • Protruding fixing mode
  • Compatible with DIN rail mounting
  • Type of door lock with triangular male key
  • Interlockable no
  • Door Lock Number 2
  • Cover type Blind door
  • Keyed lock
  • Single door leave
  • Cover type Door
  • Transparent cover or no door
  • Colour grey RAL 7035
  • Material Glass-fibre reinforced polyester
  • Surface treatment untreated
  • Depth 355 mm
  • Inside depth 319 mm
  • Height 1056.2 mm
  • Width 810 mm
  • Width in units of division 38
  • Thickness of side wall material 2 mm
  • Suitable for outdoor use yes
  • Mounting plate included no
  • Lockable yes
  • Number of keys 2
  • Number of profiles 5
  • Can be upgraded yes
  • Reference standards EN 60670-24
  • European WEEE Directive not affected
  • Impact resistance grade IK10
  • Degree of protection of the enclosure IP66
  • Insulation protection class II
  • Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
  • Halogen-free yes
  • Ultraviolet resistant yes
  • Operating temperature -25...60 °C

Data sheet

Type:
Switchboards
Degree of protection:
IP66
Model:
Blind Door
