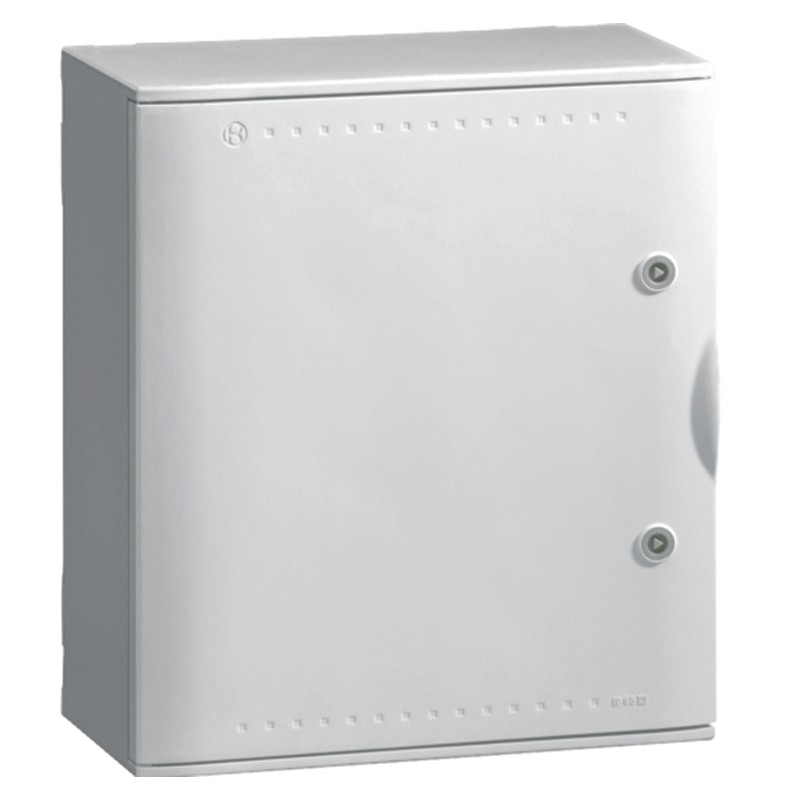

Bocchiotti Pedro blind box in fiberglass 36 modules IP66 B04602
IBO B04602
8015892533729
Bocchiotti VTR 02 blind fiberglass panel, Pedro line, with the following characteristics
- 36 modules (on three rows)
- Degree of protection of the enclosure IP66
- Impact resistance degree IK10
- Colour: grey RAL 7035
Bocchiotti Pedro blind box in fiberglass 36 modules IP66 B04602
€121.26
€121.26
Tax included
Tax included
Items Available: 150
: 54
Features:
- Bocchiotti series (Pedro line)
- Protruding fixing mode
- Compatible with DIN rail mounting
- Type of door lock with triangular male key
- Interlockable no
- Door Lock Number 2
- Cover type Blind door
- Keyed lock
- Single door leave
- Cover type Door
- Transparent cover or no door
- Colour grey RAL 7035
- Material Glass-fibre reinforced polyester
- Surface treatment untreated
- Depth 178 mm
- Inside depth 148 mm
- Height 428.2 mm
- Width 325 mm
- Width in units of division 12
- Thickness of side wall material 2 mm
- Suitable for outdoor use yes
- Mounting plate included no
- Lockable yes
- Number of keys 2
- Number of profiles 3
- Can be upgraded yes
- Reference standards EN 60670-24
- European WEEE Directive not affected
- Impact resistance grade IK10
- Degree of protection of the enclosure IP66
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free yes
- Ultraviolet resistant yes
- Operating temperature -25...60 °C
Data sheet
- Type:
- Switchboards
- Degree of protection:
- IP66
- Model:
- Blind Door
