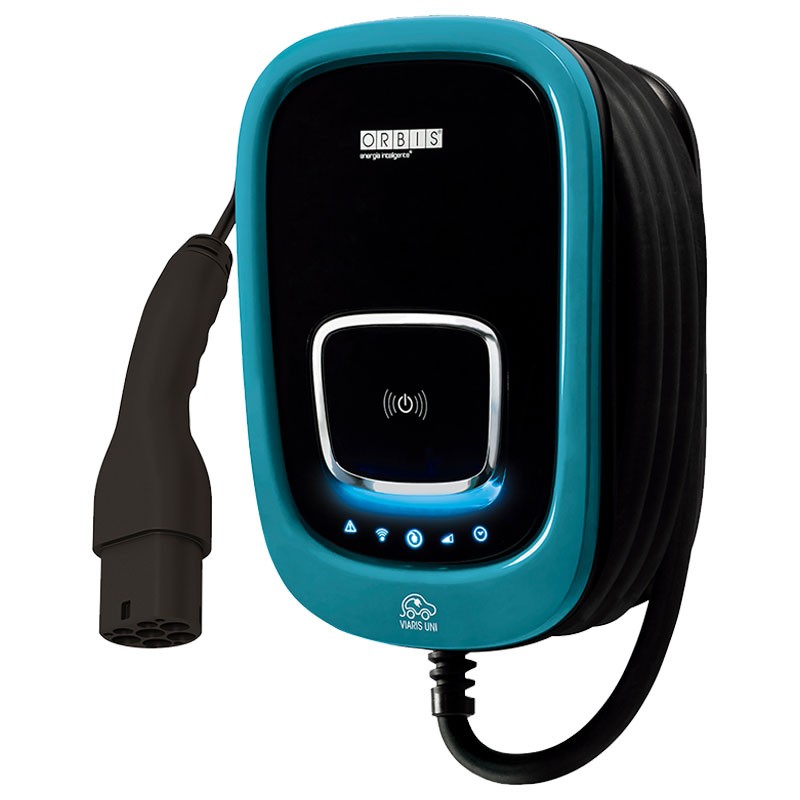

Orbis Viaris 22KW three-phase Wallbox charging station with cable and T2 socket OBU7A000112
ORB OBU7A000112
8426709116996
Wallbox Orbis Charging station VIARIS UNI CT222:
- Station power: 22 kW 3x32A
- Power supply 3×230/400 VAC (three-phase)
- Included cable length 5 meters
- Connector type T2 according to EN 62196-2
- WIFI communication built-in
- RFID reader
Accessory for single or double sided support to purchase separately codes: OB900500/OB900505
Orbis Viaris 22KW three-phase Wallbox charging station with cable and T2 socket OBU7A000112
€1,138.94
€1,138.94
Tax included
Tax included
Items Available: 1
Frequently bought together
VIARIS UNI intelligent charging stations allow the electric vehicle (VE) to be connected to the AC power supply network and recharged in MODE 3. A special power supply system equipped with specific connectors, where a pilot control is present which, through a "universal" communication system between the station and the vehicle, guarantees a safe charging process for the user and avoids damage to the vehicle battery system.
Suitable for use in private areas such as garages for single-family homes or condominiums, offices, hotels, etc., VIARIS UNI recharging stations are equipped with a robust casing, designed for indoor installation and wall mounting. VIARIS UNI allows you to keep everything under control with the light indicators, which at any time inform about the operating status of the charging station. A series of optional accessories completes the functionality of the equipment, such as the energy meter and Ethernet communication.
As standard, the VIARIS UNI charging station is equipped with an integrated device that ensures that the power supply is interrupted in the event of DC fault currents greater than or equal to 6 mA.
Standard features
- Charge modulator based on instantaneous household consumption. The power demand is adjusted to obtain the charge in the shortest possible time, without exceeding the contracted power.
- WIFI communication
- App for managing recharging and controlling energy consumption. The application also allows to remotely update the station
- Touch sensor for charging activation / deactivation
- RFID reader for charge activation / deactivation
- Integrated device that ensures the interruption of the power supply in case of a direct current fault current higher than 6 mA according to CEI 64-8 V5 2019 02
- Input for external control (home automation control)
- Relay output for air extractor control
- Hourly programming for use in different time slots.
Station interoperability:
- The stations implement the standard MQTT communication protocol, which allows remote control and visualization of the charging system and, in turn, facilitates integration with other management platforms
- Compatibility with management platforms via OCPP-J 1.6 protocol over MQTT.
Features:
- Station power: 22 kW 3x32A
- Power supply: 3×230/400 VAC (three-phase)
- Frequency: 50Hz
- Charging mode: Mode 3 according to EN 61851-1
- Output with cable + connector: Flexible cable length 5 m - Connector Type 2 according to EN 62196-2
- WiFi communication: Present (802.11 b/g/n)
- Ethernet communication: Absent
- Touch sensor ON/OFF loader: Present
- RFID reader ON/OFF loader: Present
- MID Counter: Absent
- Station status LED signaling: Present multicolor
- Charging status LED indication: Available multicolor
- Operating temperature: From -30 °C to +50 °C
- Housing material: High-strength PC
- Degree of protection housing: IP 54
- Mechanical degree of protection: IK10 according to EN 62262
- Connector degree of protection: IP 44
- Installation: Wall mounting
- Weight: 6 kg
There are no reviews
Data sheet
- Type:
- Electric Vehicles Charging
- Power:
- 22 KW
- Model:
- With cable
- Connection:
- Three-phase
