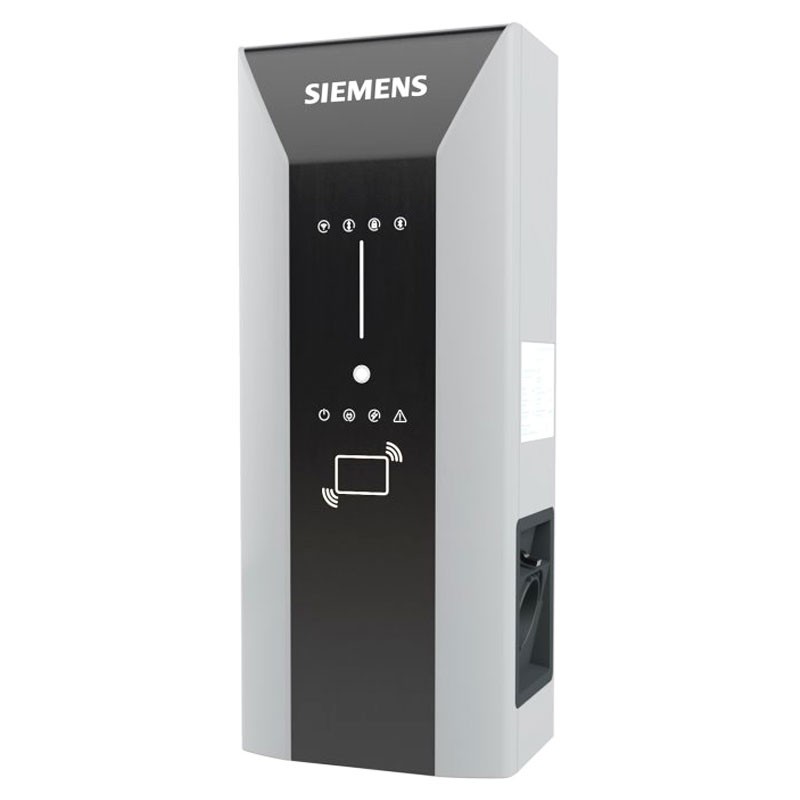

Siemens 7.4KW Wallbox electric vehicle recharger with T2 single-phase WIFI socket 8EM13102EH040GA0
SIE 8EM13102EH040GA0
Electric Vehicle Charging Wallbox Siemens VersiCharge AC Child:
- Charging Mode 3
- Connection to vehicle T2 socket
- Single phase power supply
- AC power output 7.4KW
- Interfaces: Ethernet, Wi-Fi, Modbus RS-485, Modbus TCP/IP.
€742.25
€742.25
Tax included
Tax included
Items Available: 6
: 3
Benefits tailored to your needs:
- Monitoring and control via Siemens Desigo and third-party systems
- Modbus TCP and RTU communication
- Intelligent load management and monitoring
- Suitable for both indoor and outdoor environments (IP56)
- Guaranteed safety
- Tested EV interoperability
- Remote upgrade capability
- Integrated and accurate revenue measurement
- Intelligent and easy-to-use interface
- Quick setup using the Mobile App for iPhone and Android.
Compatibility with all common electric vehicles and applicable charging standards, ease of use, and convenience features such as delayed and scheduled charging provide customers with many benefits.
Features:
Features:
- Charging mode Mode 3
- Vehicle connection Type 2 socket
- Single-phase AC output power: 7.4 kW
- Environment Indoor and outdoor
- Mounting options Wall and pole mount, see accessories
- Touch button Time delay, return to full power level
- Charging status LEDs Power on, delay time, low charge level, authentication
- Communication / status LEDs Connected / not connected during operation / signal strength during commissioning
- Parent / Child Up to 24 child units per parent unit for combined communication with backend
- Load management Via OCPP or Modbus.
Communication:
- Ethernet, Wi-Fi, Modbus RS-485, Modbus TCP/IP interfaces
- User authentication RFID card (local whitelist, MiFare), plug-and-charge ready acc. to ISO 15118 (OTA upgradeable)
- Configuration via VersiCharge mobile app or VersiCharge PC Tool
- Backend protocol OCPP 1.6, upgradable to OCPP 2.0
- Software upgrade Possible via remote update
Electrical design:
- Single-phase supply voltage: 230 V 50 Hz
- Rated current settings 10/13/16/20/32 A
- Single-phase cable cross-section: 10 mm2
- Network type TT / TN
- Energy metering Accurate MID revenue metering
- 30 mA AC ground fault detection
- DC leakage detection 6 mA DC
- RCCB/ FI Not integrated
- Voltage protection Integrated
- Overcurrent protection Current + 10% above configured threshold, min. +2 A / 5 seconds
- Operating altitude 2,000 m
General design
- IP and IK rating IP 56, IK10
- Dimensions (HxWxD) 446 mm x 180 mm x 158 mm
- Weight with socket: 1 2.9 kg
- Environmental conditions Operating temperature: -30°C - + 50°C, storage temperature: -40°C - + 60°C, 98% non-condensing
- Colors Metallic silver (Pantone 10077), black.
Certificates and standards:
- CE Certifications
- Standards: EN IEC 61851-1, EN IEC 61851-21-2, EN IEC 60068-2-52, EN IEC 61000-6-1, EN 61000-6-3, EN IEC 61000-6-4, EN 330 330, EN 300 328, EN 301 511, EN 301 893, IEC 62955.
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
