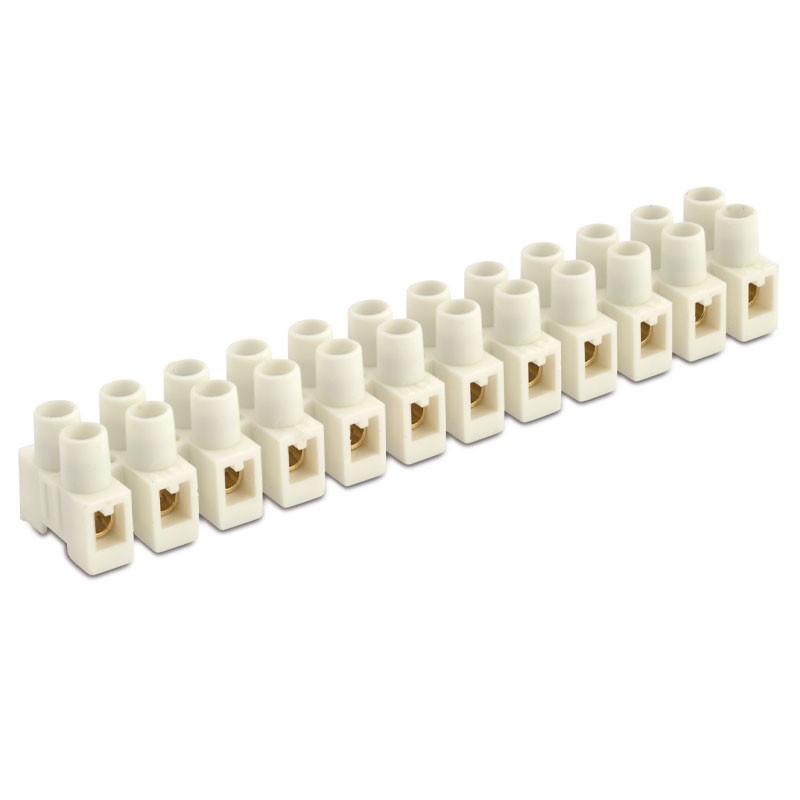

BM MAMMUT 16 mm 12-pin terminal block 9203

Bm
BMM 9203 8013629492035

BM Series 920 polypropylene multiple terminal block with the following features:

  • 12 poles
  • Insulating body: polypropylene (PP)
  • Color: natural
  • Conductive body: brass
  • Captive screws made of: galvanized steel
  • Self-extinguishing level: EN 60335-1: 2002+A2:2006 (para. 30.2.3), EN 60695-2-10 at 850 °C, EN 60695-2-11
  • Conductor type: rigid and flexible
  • Max operating temperature: 85 °C
  • Test voltage: 2500V
  • Rated voltage: 450V
  • Test current: 76 amperes
  • Stripping length: 8.5 mm
  • Screw: M4 - 0.7
  • Degree of protection: IP20
  • Cross section: 16 mm²
Do you have questions about this product or did you not find what you were looking for? Ask us!

BM MAMMUT 16 mm 12-pin terminal block 9203

€3.64
€3.64

BM MAMMUT 16 mm 12-pin terminal block 9203

€3.64
Tax included
Items Available: 237
Further availability of the manufacturer

BM MAMMUT 16 mm 12-pin terminal block 9203

€3.64

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot
  • Reference Standards: EN 60998-1: 2004, EN 60998-2-1: 2004, EN 60335-1: 2002 + A2: 2006 (Sec. 30.2.3), IEC/EN 60695-2-11

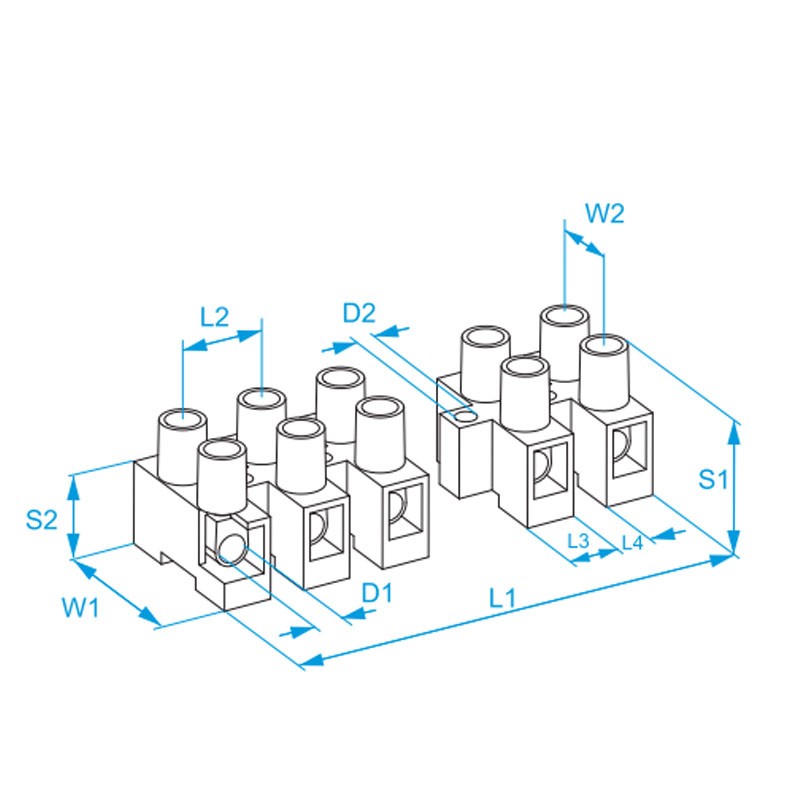

  • Dimensions: L1 (mm) L2 (mm) L3 (mm) L4 (mm) W1 (mm) W2 (mm) S1 (mm) S2 (mm) D1 (mm) D2 (mm): 175.5 15 10.5 4.4 25.3 11 22.5 13 6 4.1
