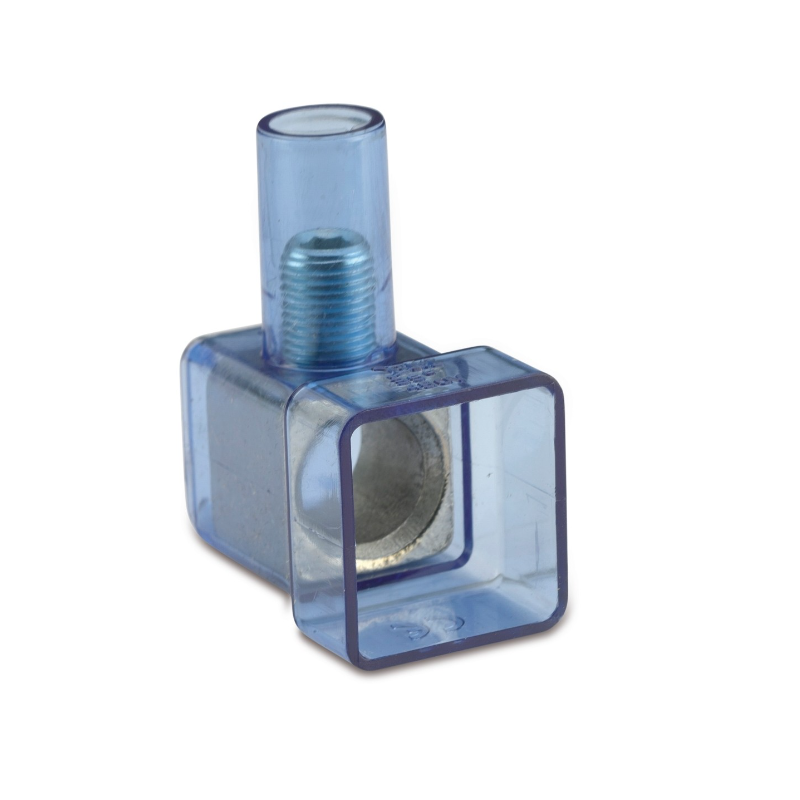

Transparent cap BM clamp 25 mm single 9960

Bm
BMM 9960 8013629499607

BM terminal with transparent cap, with the following characteristics:



  • Voltage: 450V
  • Test current: 101 Amps
  • Cross-section: 25 mm
  • For floating connections
  • Insulating body: transparent polycarbonate (PC) UL 94 V0
  • Conductive body: brass
  • Galvanised steel captive screws
  • Self-extinguishing level: EN 60335-1: 2002+A2:2006 (para. 30.2.3), EN 60695-2-10 at 850 °C, EN 60695-2-11
  • Conductor type: rigid and flexible
  • Max. operating temperature: 85 °C
  • Degree of protection: IP00
  • Reference standards: EN 60998-1: 2004, EN 60998-2-1: 2004
