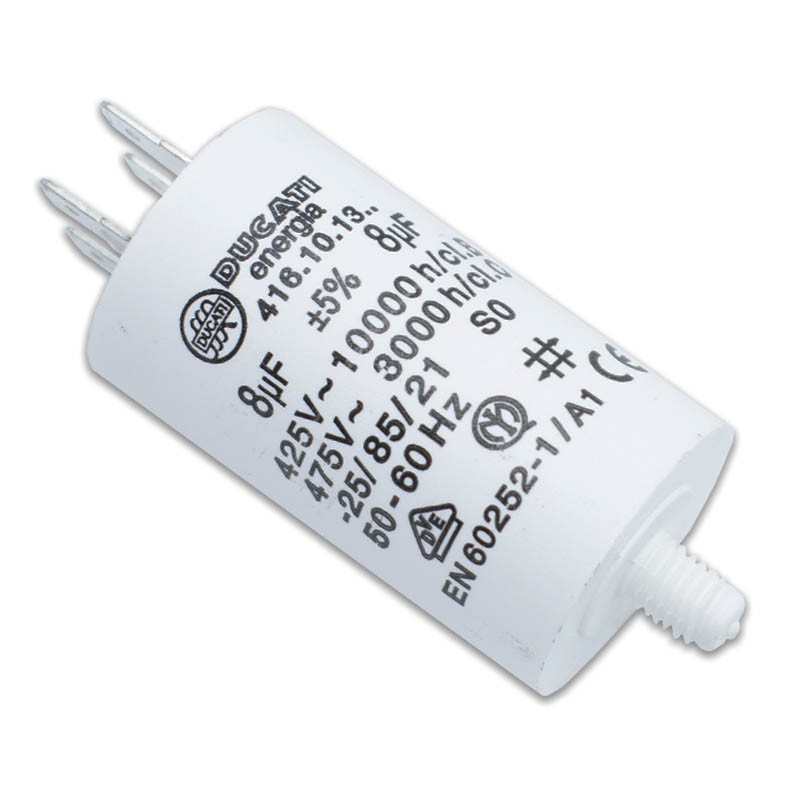

Ducati 450V 8 UF Capacitor with Double Faston Tailpiece 416101364.CU
DUC 416101364.CU
Ducati capacitor with the following characteristics:
- Voltage: 450V 8 UF
- Double Faston Tails
- Dimensions: 32x55mm
- Material: Polypropylene
- Application: for motors, in regime.
Ducati 450V 8 UF Capacitor with Double Faston Tailpiece 416101364.CU
€3.61
€3.61
Tax included
Tax included
Items Available: 118
: 27
The dielectric is made of polypropylene film, and the armatures are made of a very thin metal deposit obtained by vacuum evaporation. Case and cover are made of self-extinguishing plastic material: I capacitive element-sealed with polyurethane resin. The main features of these capacitor series are:
- Low-loss anti-inductive winding
- Self-healing properties that prevent short-circuiting
- Small size and low weight
- The capacitor is absolutely free from the risk of liquid leakage
- Safety class: P0
Characteristics:
- Capacitance tolerance : ± 5%
- Working frequency : 50 ÷ 60 Hz
- Individual test voltage : Between armatures : 2.15 Vn for 2 sec to ground 3KV for 2 sec.
- Loss angle tan ? : <20 104 @ 20°C V=Vn, 50Hz
- Enclosure : Self-extinguishing plastic housing and closure cover, grade V2 according to UL 94
- Terminals : "Faston" 6.3 mm single, double, 2.8 mm plug-in terminals, two-core cable, single-core leads
- Degree of protection : For execution with terminals: IP00, for executions with bipolar cable: IP55
- Terminal holder cover : Ball test (IEC 309-1): 125°C Glow wire test (IEC 695-2-1): 850°C Surface current resistance (IEC 309-1): 250V
- Threaded mounting tang : Maximum tightening torque: 5 N m
Data sheet
- Type:
- Capacitor
