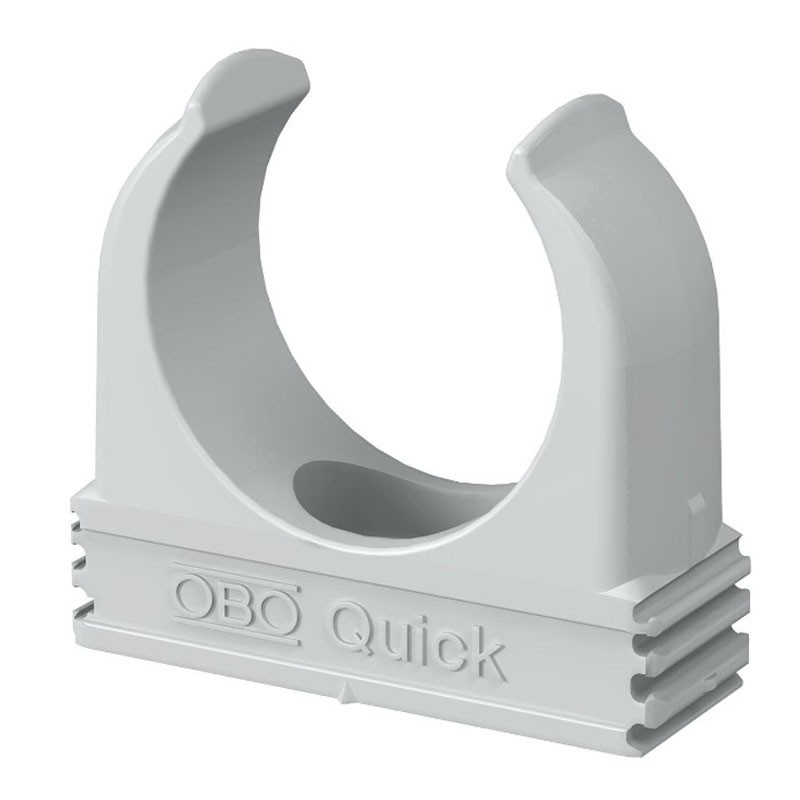

Obo Bettermann snap-on clips QUICK 2955 diameter 16mm 2149004
OBO 2149004
4012195583219
Obo Bettermann QUICK clips/staples, with the following characteristics:
- Type: 2955 M16
- Size: M16
- Color: light gray RAL 7035
- Material: polypropylene
- Material abbreviation: PP
- Tensile force value: 75N
- Fastening type: threaded hole
- Breaking load: 0.08 kN
- Flameproof: according to VDE 0471/DIN 695 part 2-1, test temperature 650°C
Minimum saleable quantity: 100 pieces.
€0.04
€0.04
Tax included
Tax included
Items Available: 1700
: 240

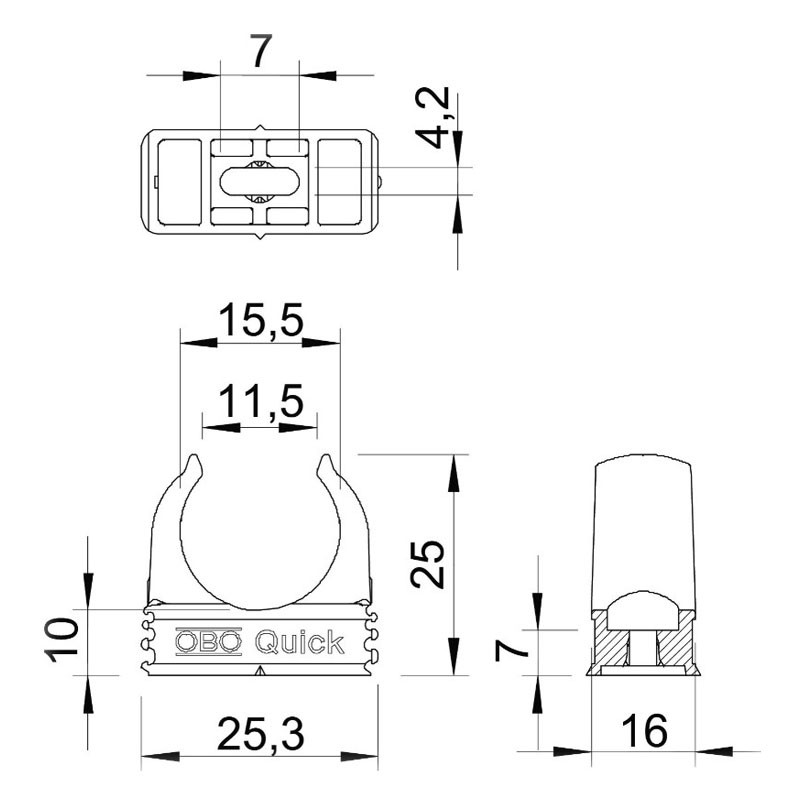

Dimensions:
- Dimension A 25.30 - 25.30 mm
- Dimension B 16 mm
- Dimension C 11.5 mm
- Dimension D 15.50 mm
- Dimension E 7.00 mm
- Dimension F 4.20 mm
- Dimension H 25.00 mm
- Dimension h 10.00 mm
Strengths:
- Suitable for all metric steel armored pipes, as well as light and heavy metric insulating pipes
- Suitable for mounting OBO Quick-Pipe
- Centering markings allow optimal pipe insertion and automatically rotate the collar to the correct position
- Universal mounting possible in series with OBO Multi-Quick and starQuick gaffet
- Long hole for side installation when mounting with wood screws and expansion plugs
- Size M16-M32 screwable on M6 thread
- Recommended fixing distance 50-60 cm, max. extraction value F at an ambient temperature of 20°C
buon prodotto... originale e ben imballato
Buon prodotto .................................
consigliato, ottimo rapporto qualità prezzo
Perfetto. Spedizioni veloci. Consigliatissimo
Data sheet
- Diameter: 16mm
- Type: Fixing clips
- Material: Polypropylene
