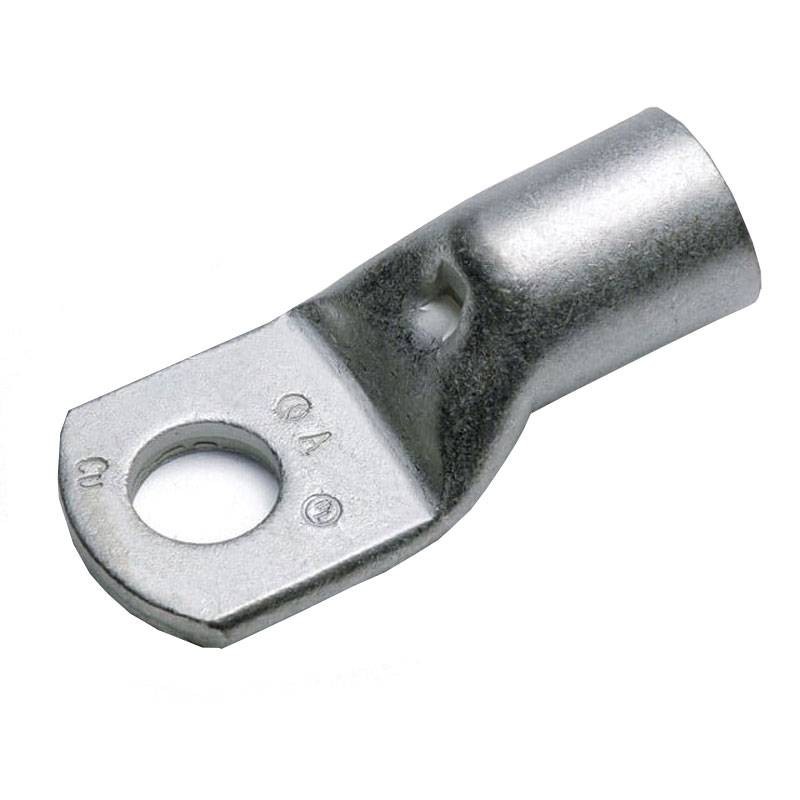

Lugs Cembre for copper conductors 10mmq diameter 8 A2-M8
CEM A2-M8
8016692038094
Lugs Cembre non-insulated for copper conductors nominal section of conductor 10mmq screw diameter 8 A2-M8
Lugs Cembre for copper conductors 10mmq diameter 8 A2-M8
€0.36
€0.36
Tax included
Tax included
Items Available: 1583
: 112
The cable lugs of series A-M are made from tube, copper electrolytic section such as to ensure a good electrical connection that an adequate resistance to traction. Are annealed and protected on the surface by tinning electrolyte.
Are made from tube of electrolytic copper Cu-OF CW008A according to the UNI EN 13600.
The annealing process optimizes the structural features of the material, which allows a compression easier and ensures the use of the lug in the presence of mechanical stresses of various nature.
The collar is provided with chamfer and hole inspection, for easy and correct introduction of the conductor; its length is also such as to make easy and precise placement within the matrix of the tool.
Each lug contains engraved:
- trademark and catalog number December
- nature and section of conductor (mm2)
- Diameter of screw (mm).
There are no reviews
Data sheet
- Diameter:
- 8mm
- Type:
- Terminal lugs
- Cross-Section:
- 10mmq
