Fischer Mesh Dowel 12X85K 00041901
FIS 00041901
8001132419014

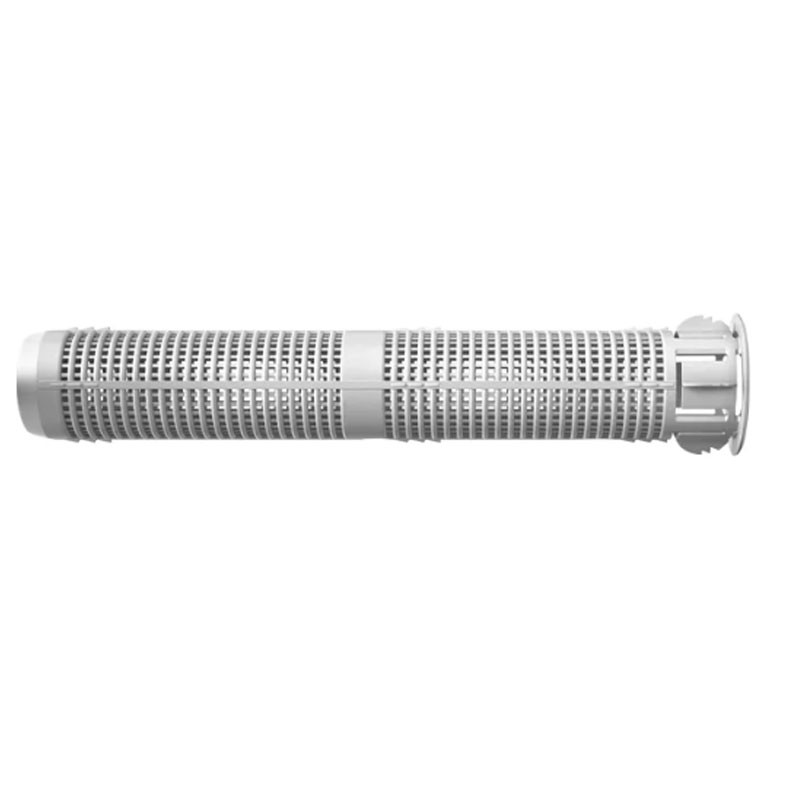

Fischer mesh anchor model 12X85K, with the following characteristics:
- Hole diameter 12 mm
- Suitable for: FIS A M6-M8
- Certifications: ETA-10/0383, ETA-15/0263
Fischer Mesh Dowel 12X85K 00041901
€0.41
€0.41
Tax included
Tax included
Items Available: 1116
: 152
Applications:

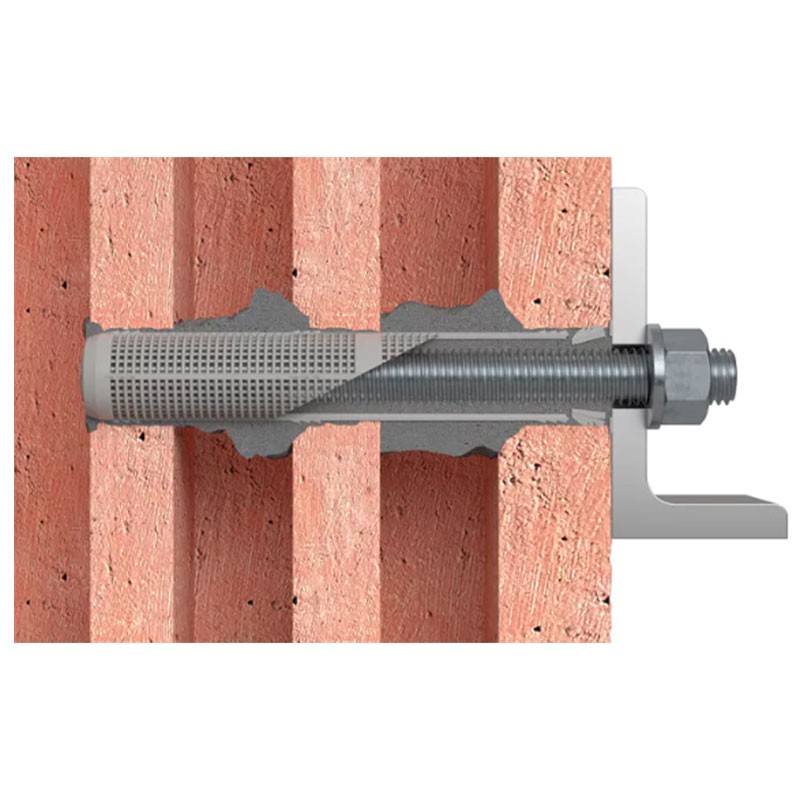

- The fischer FIS H K mesh d owel is the system component for the use of fischer injection resin in half-filled bricks in the field for through-hole installations. To do this, the mesh dowel is placed in the hole, and filled with injection resin starting from the bottom of the dowel. When the anchor bar is set, the resin is pressed through the mesh structure and then connected with the half-filled brick by undercut. This means that the load is distributed within the supporting material. Non-bearing layers can then be filled with the mesh dowel.
Advantages:
- Mesh structure of anchor sleeves lowers mortar consumption
- Mesh dowel enables optimal undercutting in half-filled brick masonry
- Centering lugs help fix the anchor bar with various diameters. This reduces complexity and simplifies storage
- Mesh anchor: no dropping for overhead installations
- European Technical Approval ETA
- The FIS HK nylon mesh anchor is the CE-certified solution for fastening on perforated supports.
- The dimensions of the holes ensure a calibrated outflow of the resin around the dowel.
- Once cured, the resin works with the undercut principle (makes contrast on the brick ribs of the perforated bricks).
- Resin injection should start from the bottom of the FIS HK nylon mesh dowel. Therefore, it is recommended to push the FIS MR PLUS mixing nozzle to the bottom of the FIS HK, injecting the resin evenly by pumping on the gun gradually and letting the nozzle slowly rise back to the surface in order to fill the whole dowel.
produit de qualité mais livraison trop longue
Il prodotto corrisponde alla descrizione, fischer 5
Data sheet
- Type:
- Dowels
- Installation:
- Bricks
