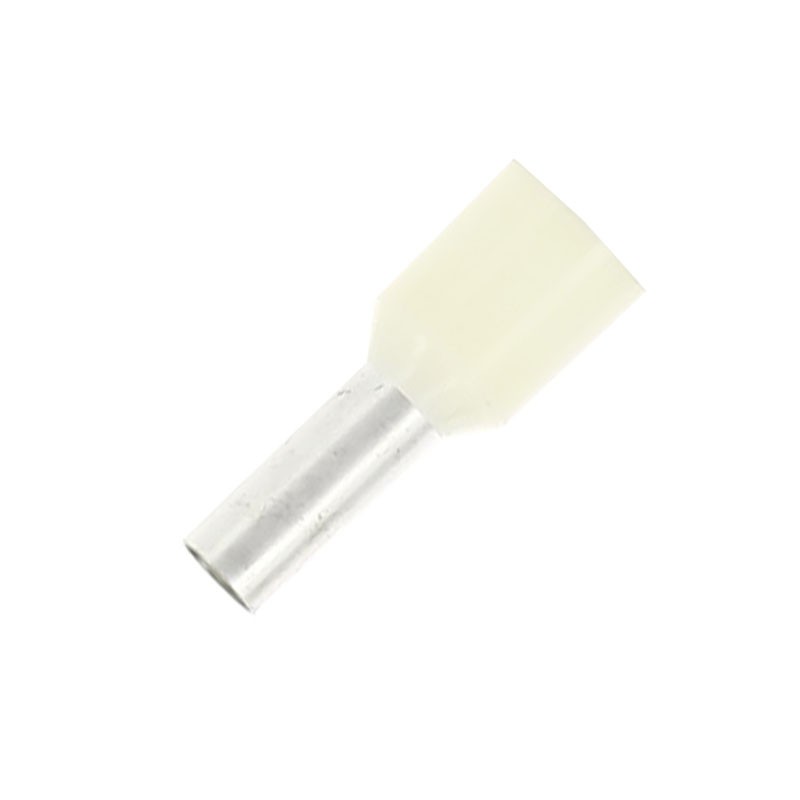

Cembre pre-insulated terminal tube 0.75mmq 8mm pieces 500 PKC7508
CEM PKC7508
8016692035352
Cembre pre-insulated end sleeve for flexible copper cables, nominal cross-section 0.75 sq. mm, length 8 mm, pack size 500 pieces. Colour White.
Cembre pre-insulated terminal tube 0.75mmq 8mm pieces 500 PKC7508
€0.01
€0.01
Tax included
Tax included
Items Available: 23000
: 3200
The tubes, the terminals of the series PKC are made of electrolytic copper, tin plated; thanks to their reduced dimensions, suitable to be used for securing flexible cables on the terminals where the available space is very limited.
The connectors are made from electrolytic copper Cu-DHP UNI 5649/1988
Features:
- Stiffness dieletttrica (KV/mm) : >16,5
- Volume resistivity (? cm) : >1013
- Temp.masisma of the year (°C) : 115-130
- Flammability (UL94) V2
- Density (g/cm3) : 1,14
- Absorption d H2O (%) : 1,5
- Resistance at break (N/mm2) : 77
- The connectors can also be stored at a minimum temperature not below - 40°C
- Halogen-free
- Minimum operating temperature -20 °C
- Maximum use temperature of 115 °C
- Maximum use temperature for short periods up to 130 °C
- Material (Body) Copper-ETP, tin plated electrolytically
- Material (Blouse partially insulation) Polyamide PA6.
There are no reviews
Data sheet
- Type:
- Bootlace Ferrules
- Cross-Section:
- 0.75mmq
