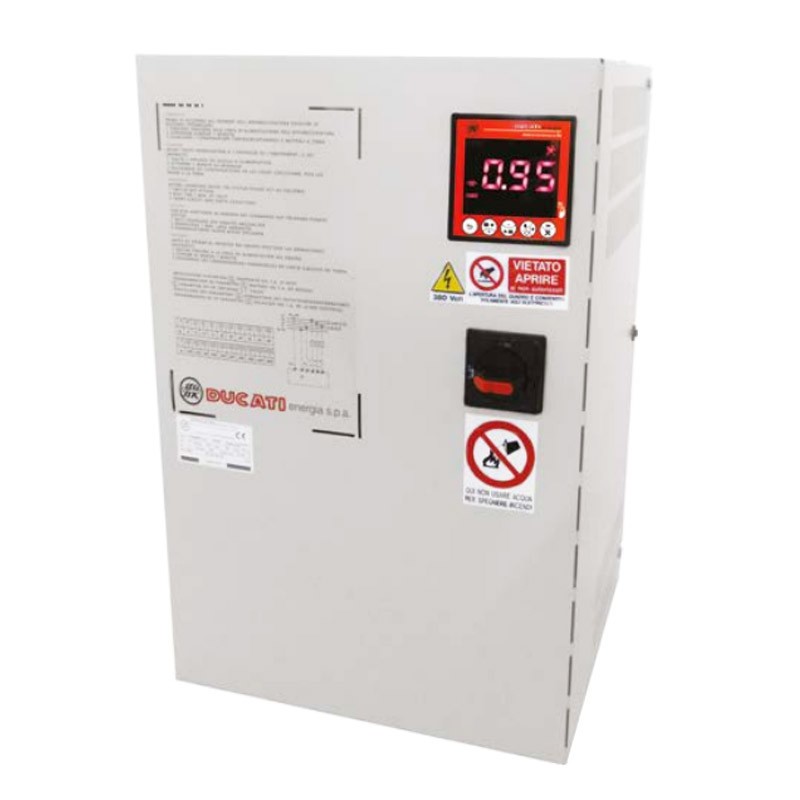

Unit power factor correction Ducati 200-M 90KVAR 415V 9 steps 415040075
DUC 415040075
Unit power factor correction automatic Ducati 200-M 90KVAR 415V 9 steps, Power battery pack 10 + 2 x 20 + 40 (kVAr), In the 121ST, In sec. 250A, Dimensions: Wxdxh 400x270x1000mm.
Unit power factor correction Ducati 200-M 90KVAR 415V 9 steps 415040075
€1,364.17
€1,364.17
Tax included
Tax included
Items Available: 1
Capacitors single-phase series MONO Long Life 4In metallized polypropylene, which are characterized by high ability to be able to work in systems with high harmonic currents. Rated voltage 415 V
Regulator digital microprocessor series rEvolution R5. NFC to exchange configuration and status information through the App DUCATI Smart Energy dedicated. Self-recognition of the direction and position of the TA, with the following reduction of the operations of the operator. Operation with cogeneration systems (e.g. photovoltaic)
Carpentry steel sheet painted with epoxy powders RAL 7035
Switch omni-polar with door interlock and the current nominal dimensioned 1.45 In according to CEI EN
Contactor suitable for capacitive loads with devices limiting the inrush current of power supply 230 V, 50-60 Hz
Features:
- Mains voltage (use) 400V
- Rated frequency 50 Hz
- Insulation voltage 690 V
- Natural Ventilation
- Installation For interior wall
- Degree of protection IP30
- Continuous Service
- Class temperature framework -5 +40 °C
- Power supply 3PH + PE (in addition to 80 kVAr)
- Cable entry From the top
- Internal links FS17
- Discharge devices Provided on each battery
- Fuses NH-00 GL
- Short-circuit current of 50 kA (influenced by upstream protection).
There are no reviews
Data sheet
- Type:
- Power factor correction unit
