Vimar Tab 5S Up Wifi Single-Family Video-Intercom Kit K40515.R

Vimar
VIW K40515.R 8007352745643

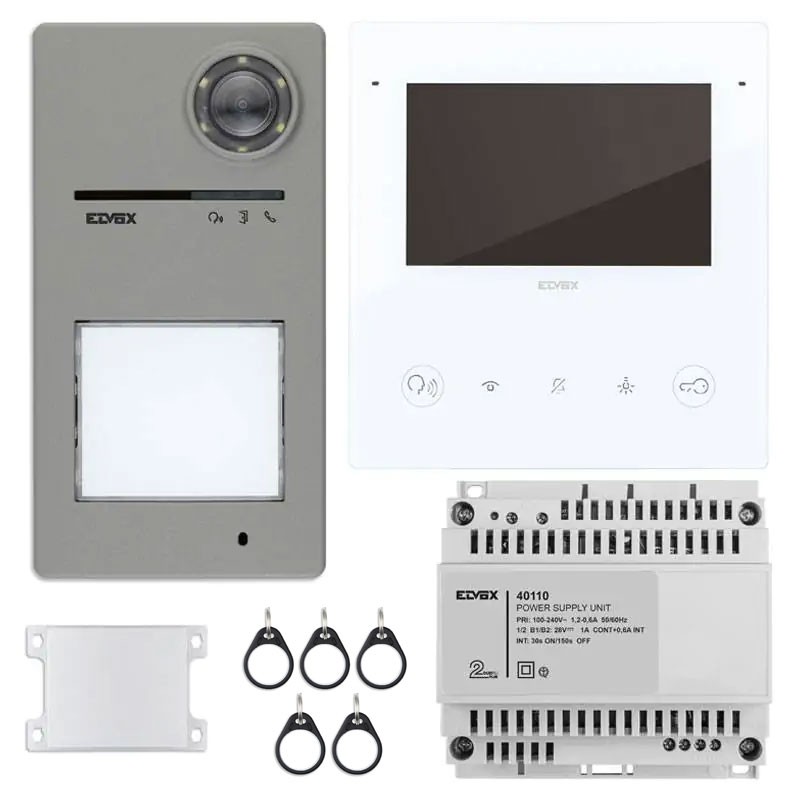

Vimar Tab 5S Up single-family video intercom kit integrated WIFI colour, 2-wire system and expandable up to four-family (with accessories not included), Kit consists of:



  • 1 Targa Roxie push-button panel arrangement 1 wall-mounted push-button (40170)
  • 1 Videointercom Tab 5S Up Wifi integrated LCD 5 in (40515)
  • 1 Power Supply 2 Wires+ 100/240V 1 out (40110)
  • 1 Single-family push-button kit for targa push-button panel 40171
  • Integrated access control with 5 Mifare RFID keys



The Roxie Targa Push Button Panel with accessories 40172 (two-button kit) and 40174 (4-button kit) can be expandable up to 4 separate calls (four-family).

  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!

Vimar Tab 5S Up Wifi Single-Family Video-Intercom Kit K40515.R

€526.45
€526.45

Vimar Tab 5S Up Wifi Single-Family Video-Intercom Kit K40515.R

€526.45
Tax included
Items Available: 4
Further availability of the manufacturer

Vimar Tab 5S Up Wifi Single-Family Video-Intercom Kit K40515.R

€526.45

Buy it within and receive it from Tuesday, 17 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Kit parts specifications:

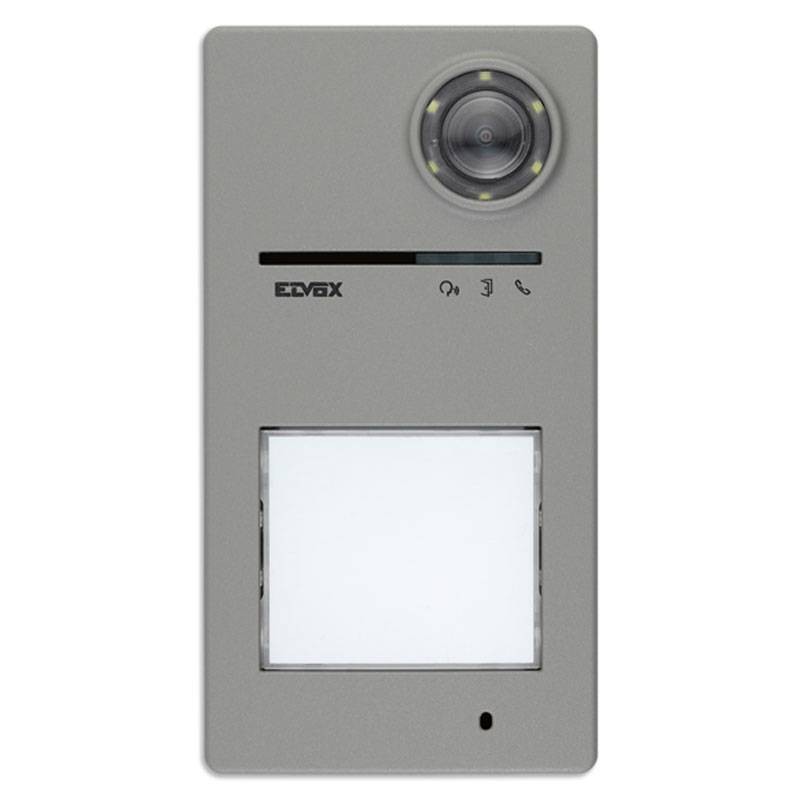

Pushbutton Panel Targa A/V 4P ac control:

  • Targa Roxie audio video Two-Wire Plus
  • Programmable by View Wireless app with standard Bluetooth technology
  • RFID Access Control

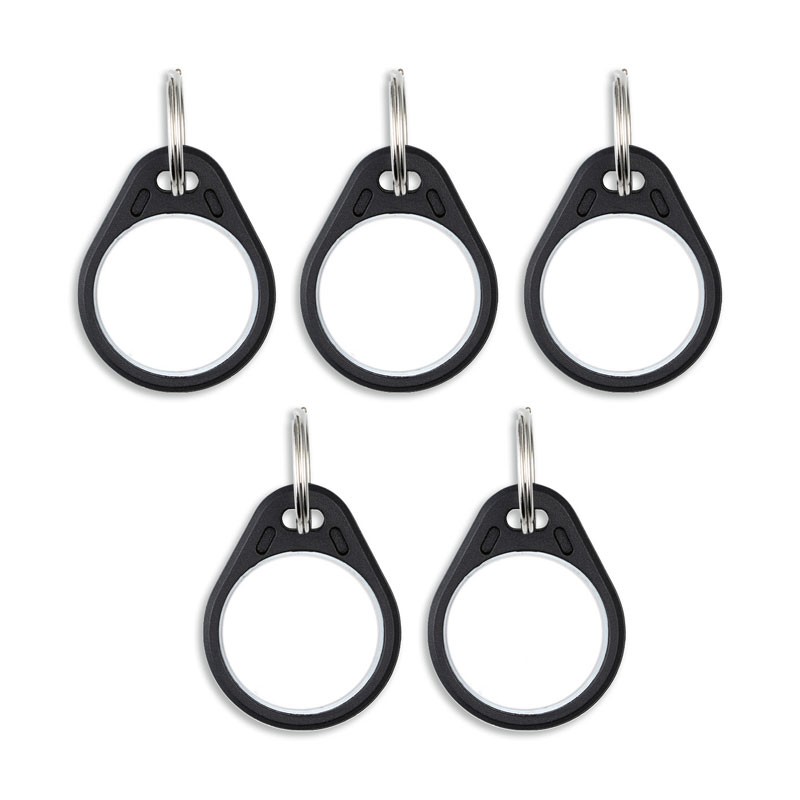

  • 5 Mifare RFID keys for Roxie 40170 access control plate
  • 130° wide-angle color camera
  • Provision for 4 white LED backlit call buttons with twilight lighting management
  • LED signaling of call status and lock operation
  • 1 external camera input
  • 1 input configurable as external door opener AC or door open button PA
  • 1 direct opening output for electric lock
  • 1 configurable SELV relay output NC or NO 48V 1A
  • Wall or semi-recessed installation (with dedicated accessory)
  • Dimensions: Width 100 mm - Height 190 mm - Thickness 32.5 mm



Videointercom 2F+ Wi-Fi Tab5S Up VV White:

  • Tab 5S Up handsfree wall-mounted videophone for Two-Wire Plus system
  • Built-in Wi-Fi for call repetition on smartphone with dedicated app
  • LCD 5 in color touch screen display 800x480 resolution, 15:9 ratio, capacitive touch-screen
  • Capacitive keypad for video intercom functions and intercom calls
  • Video answering machine
  • Teleloop for hearing aids
  • Possibility to recall the scenarios of the connected VIEW Wireless civil series from the video intercom
  • Bracket for mounting on rectangular or round box
  • Wall or semi-recessed installation
  • White colour
  • Connected thanks to integrated Wi-Fi
  • With View app more functions and better control
  • Multi-plant, multi-user and multi-system
  • Also suitable for renovations
  • With Teleloop, visual and audible alerts. Crystal-clear sound and visual feedback confirm activation of functions, making it easy to use even for people with low vision or hearing aids
  • Possibility to recall the scenarios of the connected VIEW Wireless civil series from the video door phone
  • Dimensions Width 148 mm - Height 158 mm - Thickness 24.4 mm

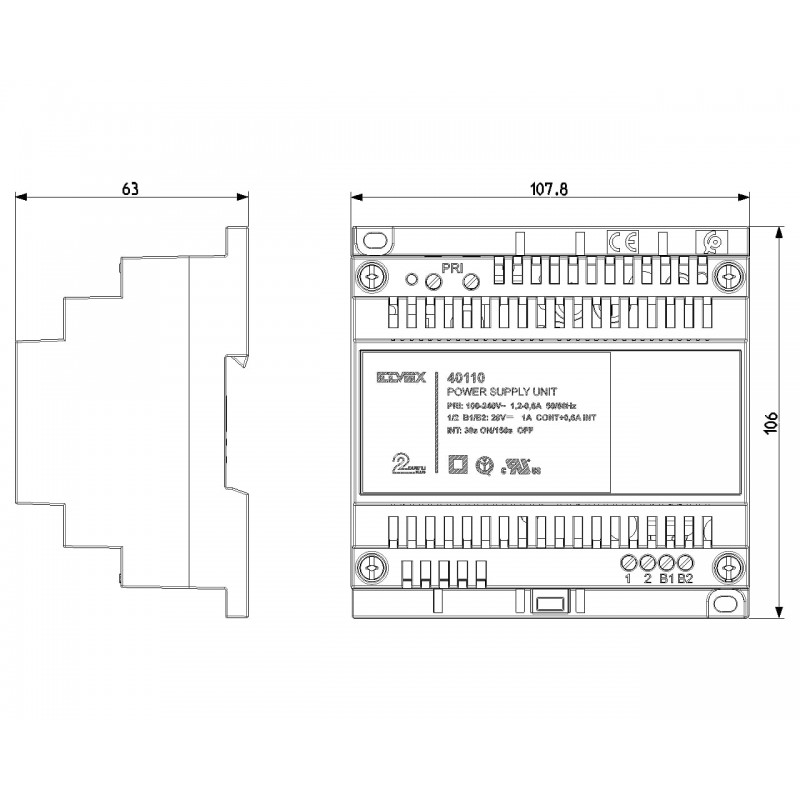

2F+ 100-240V 1 OUT 1.6A power supply:

  • Two-Wire video intercom power supply with 28 Vdc output.
  • Power supply 100-240 V~ 50/60 Hz
  • DIN-Rail Installation (60715 TH35)
  • Occupies 6 x 17.5 mm modules

There are no reviews

Data sheet

KIT:
Video Intercom Kits
Model:
Intercom function
RFID function
Single-family house
Tloop function
System:
2-Wire
WIFI:
Yes
