Elvox Video Door Phone Handsfree Tab Free 4.3 inch 2 Wires White 7558
VIW 7558
8013406310910

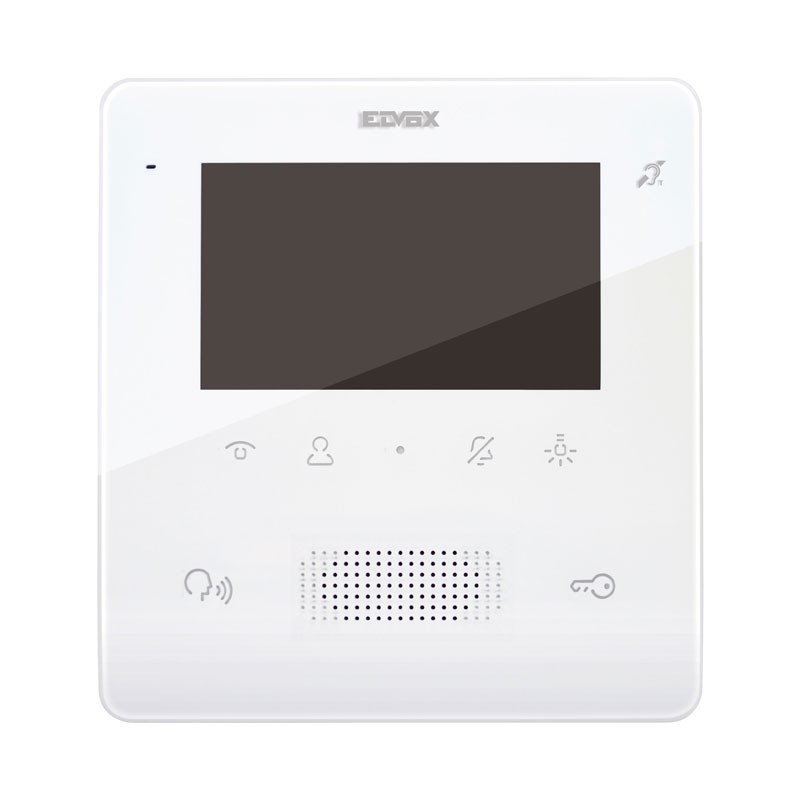

Elvox Tab Free video door entry monitor, wall-mounted for Two-Wire Plus system, 4.3" LCD colour display, capacitive keyboard for video door entry functions and programmable rapid call function, teleloop for hearing aids, bracket for mounting on rectangular or round box, white
€190.22
€190.22
Tax included
Tax included
Items Available: 103
: 5
Frequently bought together
Tab series video door entry monitor, wall-mounted speakerphone for Two-Wire Plus system with 4.3" LCD colour display, loudspeaker for call signalling, capacitive keyboard for intercom functions (lock release, auto switch-on, auxiliary services, volume, brightness and contrast adjustments and intercom calls).
It is possible to install a desktop version using the desktop base accessory 753A (available separately). Can be used by people with hearing aids.
Features:
- Mounting: wall-mounted, with metal bracket, on box: circular 2M (Vimar V71701), 3M (Vimar V71303, V71703) vertical and square British standard
- LCD display 4.3" 16:9, resolution 480x272 pixel
- Minimum level of video signal on the bus in reception: -20 dBm
- Capacitive touch keyboard with backlit symbols
- Power supply from BUS terminals 1, 2 - nominal voltage 28Vdc
- Absorption: in standby: 17 mA - maximum current: 280 mA
- Environmental class: Class A1 (indoor use)
- Protection IP30
- Operating temperature: -5 °C - +40 °C (indoor use)
- Electronic ringer with melody diversification (10)
- Door call input

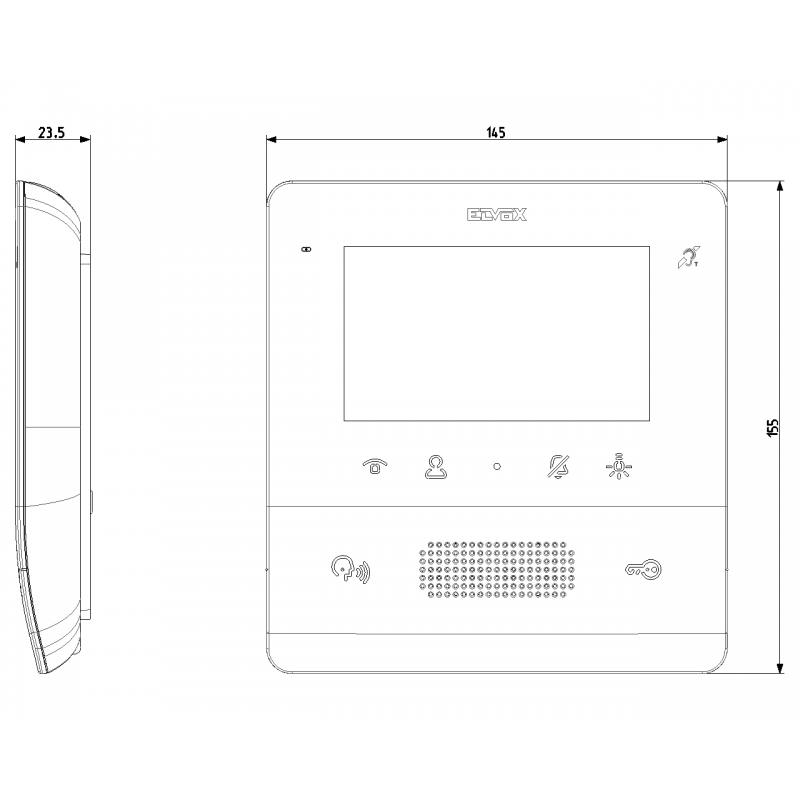

- Dimensions: 155 x 145 x 23.5 mm
- Dip switch for line impedance termination.
Acquistato per sostituire un vecchio modello con cornetta (chiesto preventivamente in Elvox la compatibilità dei modelli). Scollegato il vecchio e rifatto gli stessi collegamenti sul nuovo, nessun problema.
Data sheet
- Type: Video Intercoms
- Model: Intercom function
- System: 2-Wire
