Conical Extractor Set for Screws Usag 458 S8 U04580013
UTN U04580013
8010239039186
Usag 458 S8 Conical Extractor Set for Screws and Split Studs suitable for
- For the removal of broken screws or studs that do not offer a grip possibility
- Special high-alloyed chrome vanadium steel
- Satin and burnished execution

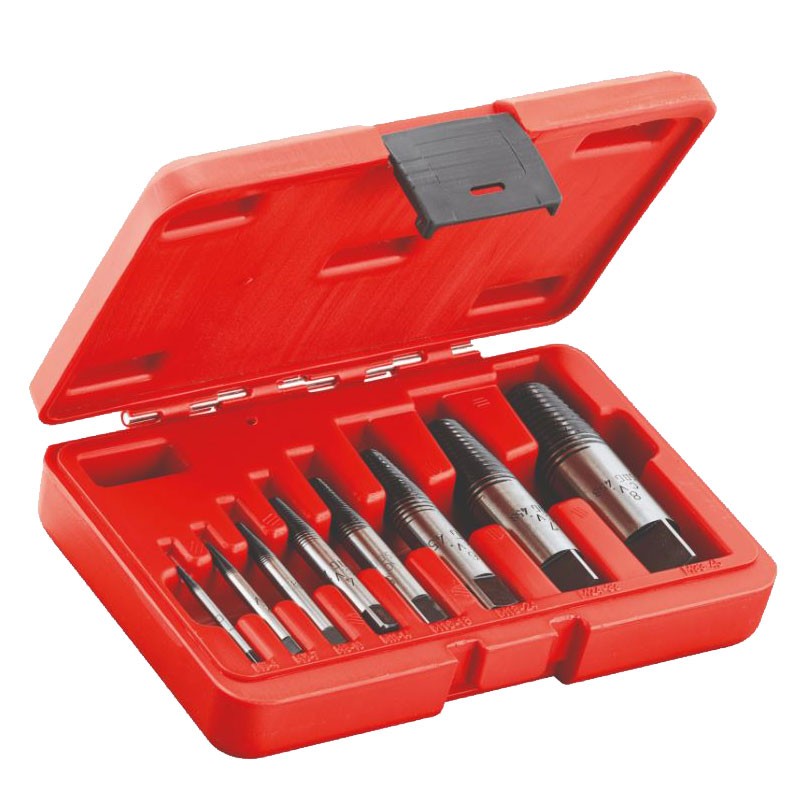

- Supplied in a plastic case.
Conical Extractor Set for Screws Usag 458 S8 U04580013
€50.10
€50.10
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
Package Contents Detail:
Conical extractors for broken screws and studs 458:

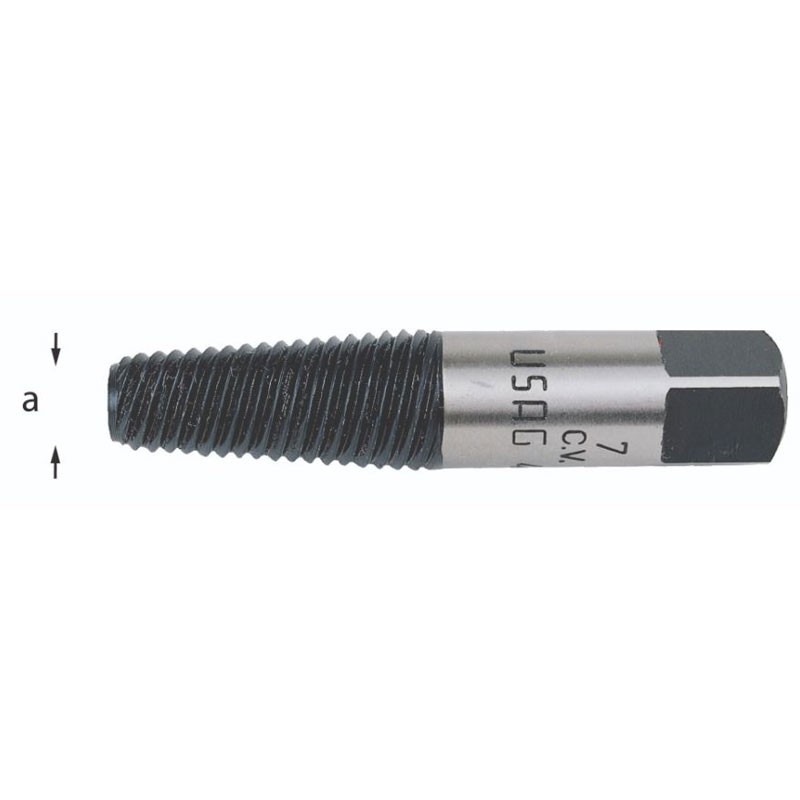

- Code U04580001 size 1, M 4÷5, hole diameter 3,25 mm, diameter 2,7 mm, size (a) 3 mm
- Code U04580002 size 2, M 6÷7, bore diameter 4.25 mm, diameter 3.9 mm, size (a) 3.3 mm
- Code U04580003 size 3, M 8÷10, bore diameter 5 mm, diameter 4.4 mm, dimension (a) 4.5 mm
- Code U04580004 size 4, M 11÷14, bore diameter 6.5 mm, diameter 5.3 mm, size (a) 5 mm
- Code U04580005 size 5, M 16÷18, bore diameter 8.5 mm, diameter 7 mm, dimension (a) 6.6 mm
- Code U04580006 size 6, M 18÷24, bore diameter 11.5 mm, diameter 9.4 mm, dimension (a) 9.3 mm
- Code U04580007 size 7, M 24÷33, bore diameter 15 mm, diameter 10.4 mm, size (a) 10.3 mm
- Code U04580008 size 8, M 33÷45, bore diameter 19 mm, diameter 13,8 mm, size (a) 14,3 mm.
Case size:
- LxWxH 205x143x47 mm
- Weight 720 gr.
There are no reviews
Data sheet
- Type:
- Conical Extractors
