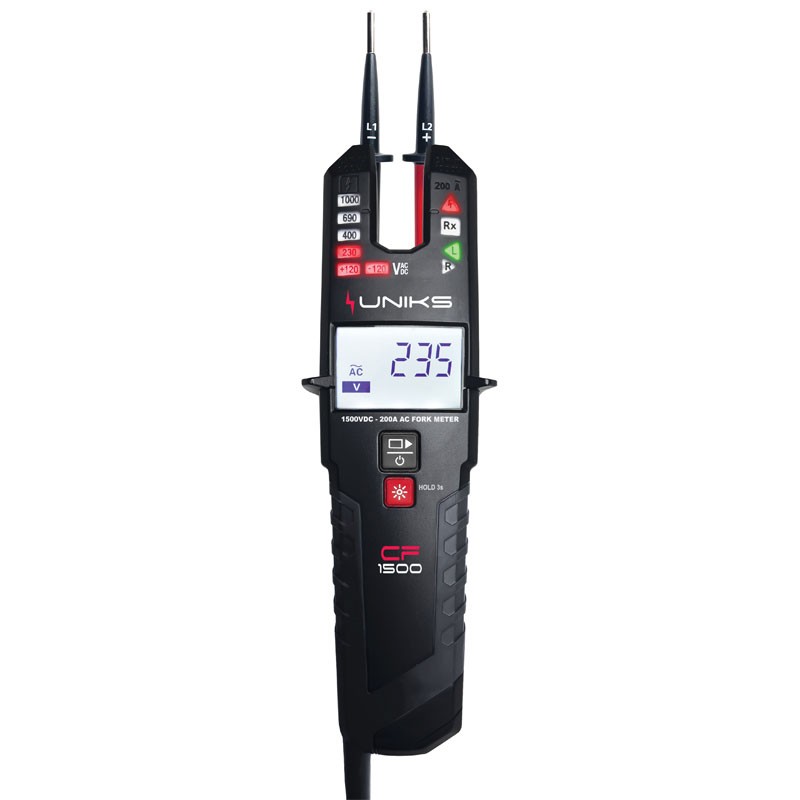

Uniks 2 Poles 1500V DC CF1500 fork clamp with multimeter

Uniks
UNK CF1500 8052461741833

Uniks 2 Poles 1500V DC is a two-pole tester (DUSPOL) with fork clamp for current measurements up to 200A AC that allows you to measure voltages up to 1500VDC making it ideal for voltage measurements in photovoltaic systems up to 1500VDC.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Uniks 2 Poles 1500V DC CF1500 fork clamp with multimeter
€289.37
€289.37

€289.37
Tax included
Items Available: 3
Further availability of the manufacturer
€289.37

Buy it within and receive it from Thursday, 20 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

CF1500 incorporates in a single product a fork clamp meter for current measurements and a two-pole multimeter (Duspol) for measurements of voltage, resistance, continuity, cyclic phase direction and more by means of two ready-to-use L1 and L2 test leads. Performs measurements of:

  • AC voltage up to 1000V and DC voltage up to 1500V (ideal for photovoltaic systems).
  • Current measurement up to 200A AC
  • Continuity and Resistance test
  • One tip phase finder
  • Test of the direction of rotation of the phases.

CF1500 is manufactured to meet EN61243-03:2014, CAT IV600V and CATIII 1000V safety standards.

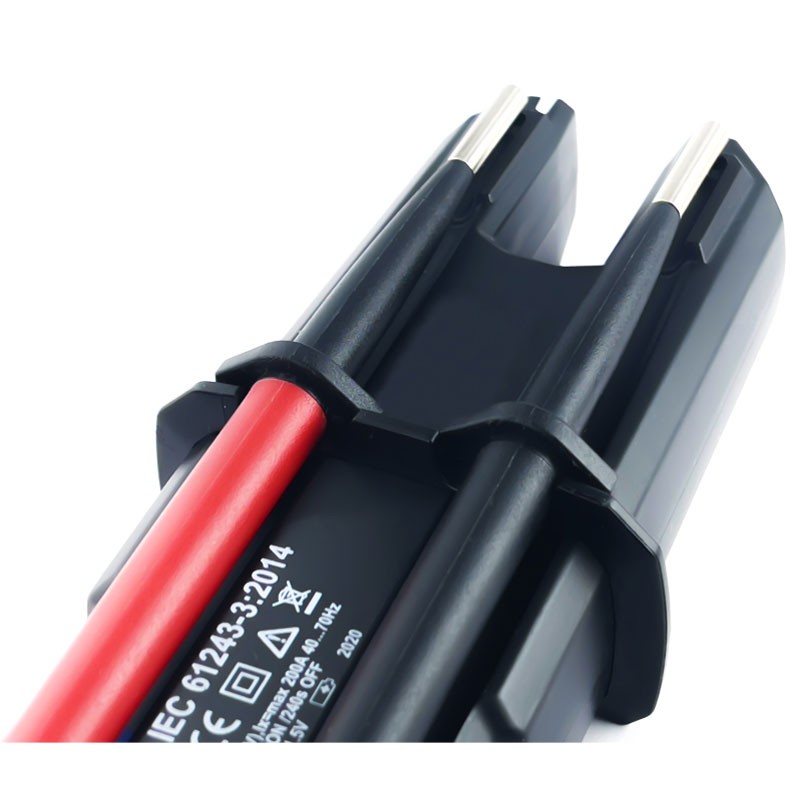

The LEDs placed on the fork allow to read quickly more information in a single measurement as voltage value , polarity , direction of rotation or an LCD display can give more detailed information about the measured value.

Reference standards:

  • EN: 61010-1
  • EN: 61243-3:2014.

Functions:

  • LED indicator of the presence of Voltage even with low batteries
  • AC voltage up to 1000V and DC voltage up to 1500V
  • Current up to 200A AC
  • Auto Range
  • Cyclic phase direction
  • Continuity
  • Resistance Measurement
  • NCV Phase finder
  • Vibration
  • Torch
  • LCD Display
  • Data Hold
  • Auto Power OFF
  • Degree of protection IP64
  • CAT IV 600V CAT III 1000V

Features:

  • DC voltage range 1500V accuracy ± 3.0% +3d
  • AC voltage range 1000V accuracy ± 3.0% +3d
  • Current AC range 0.1A ~ 200A accuracy ± 3.0% +5d
  • LED tolerance EN61243-3
  • LED Voltage 120/230/400/690/1000V
  • Continuity 0~500K? Buzzer
  • Frequency 1Hz ~ 800Hz ± 5.0% +5d
  • Resistance 0~100K? ± 5.0% +10d.

Accessories included in the package:

  • Canvas bag for transport
  • User Manual
  • 2x 1.5V AAA batteries.
