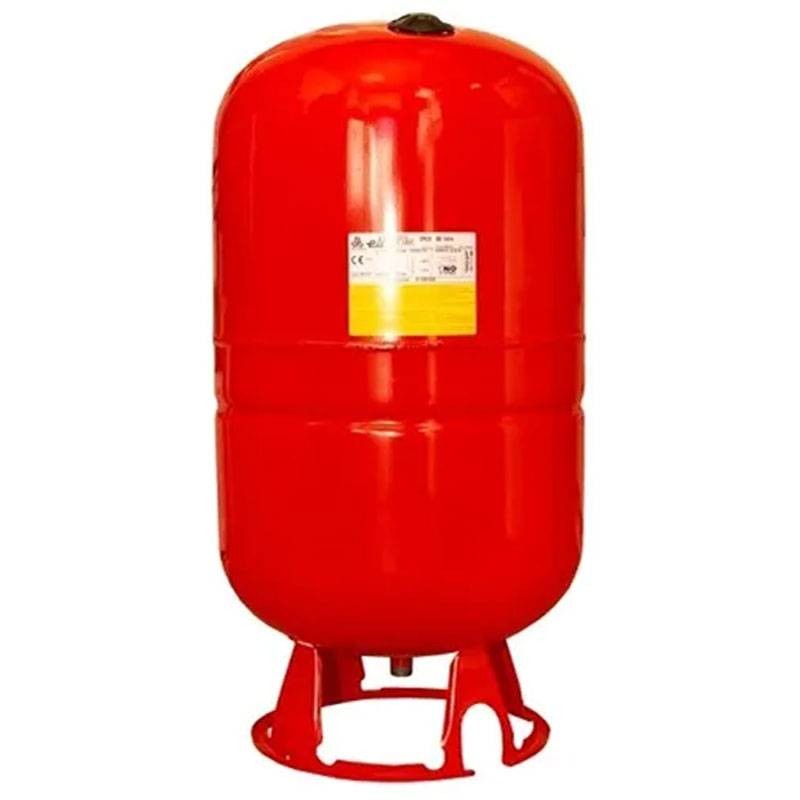

Elbi Erce 300-liter fixed diaphragm expansion vessel for heating A112L51
ELB A112L51
8019742011634
Elbi Erce 300 fixed-diaphragm expansion vessel for heating systems:
- 300-liter capacity
- Diameter 650 mm
- Height 1185 mm
- Connection height 105 mm
- Basement diameter 485 mm
- Water connection 1" inch GAS
The expansion tank is a device designed to absorb the change in volume of water, or other liquids, allowing the proper operation of a heating system in all its stages of operation.
Elbi Erce 300-liter fixed diaphragm expansion vessel for heating A112L51
€344.06
€344.06
Tax included
Tax included
Items Available: 7
: 2
This expansion vessel is a device designed to absorb the change in volume of water, or other liquids, allowing the proper operation of a heating system in all its phases of operation. Elbi manufactures all the membranes it mounts on its equipment, using only modern injection molding machines for production. All membranes are tested by the company's quality control department at the end of the production cycle.
Features:
- Sturdy construction made of top-quality steel, designed to last over time
- Long-lasting epoxy powder coating
- Fixed SBR rubber diaphragm with features to ensure better performance and longer service life (model AC-2: interchangeable butyl diaphragm)
- Declaration of conformity with the essential safety requirements of Directive 2014/68/EU.
- Models AC-2/ER5 are exempt from CE marking
- Maximum allowable pressure 10 bar
- Hydrostatic test pressure 14.3 bar
- Precharge pressure 1.5 bar
- Min./max. operating temperature Min./Max -10/+99 Degrees
- ERCE series heating expansion vessels comply with the requirements of Directive 2014/68/EU and are CE approved
- . ERCE series heating expansion vessels are guaranteed for 2 years
- Elbi ERCE series expansion vessels are suitable for operation with water or with water and glycol up to 50% content
There are no reviews
Data sheet
- Type:
- Expansion vessels
- Capacity:
- 300 Liters
