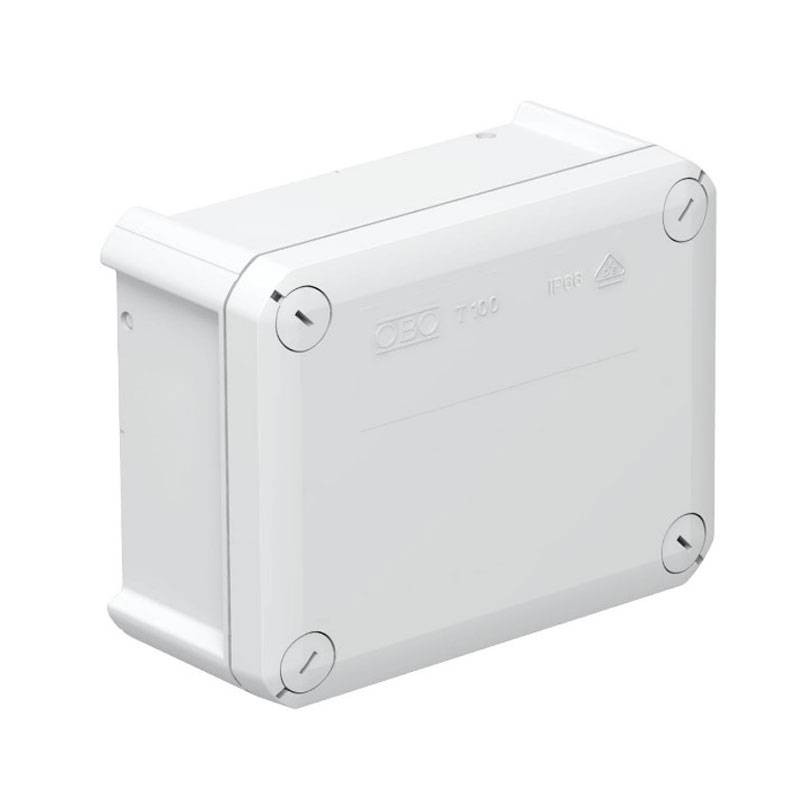

Obo outdoor smooth IP66 junction box 150x116x67 mm 2007255
OBO 2007255
4012195386636
Obo smooth outdoor junction box with the following features:
- Type: T 100 OE
- Material: polypropylene
- Color: light gray

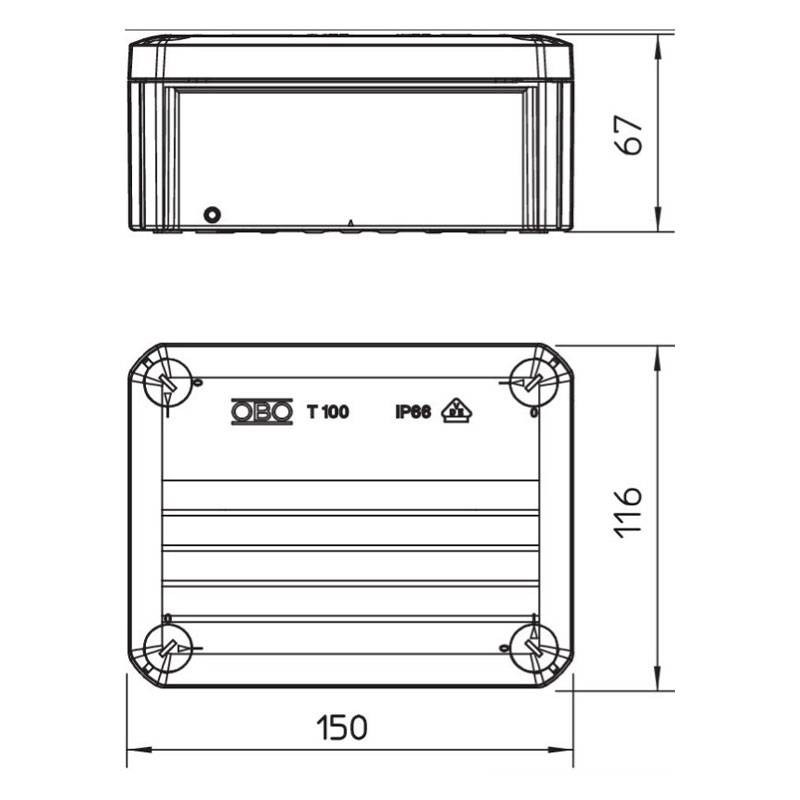

- Dimensions: 150x116x67 mm
- Internal dimensions: 136x102x57 mm
- Rated insulation voltage Ui: 500.00V
- Degree of protection: IP66
- Mounting type: ceiling/wall
- Flameproof according to VDE 0471/DIN 695 part 2-1, test temperature 750°C
Obo outdoor smooth IP66 junction box 150x116x67 mm 2007255
€5.09
€5.09
Tax included
Tax included
Items Available: 1687
: 802
Junction box for connecting cables and lines in indoor and protected outdoor environments. Rectangular shape without entrances. Suitable for wall and ceiling mounting and mounting on mounting plates. With the possibility of internal fixing and mounting on corner sections. Lid with quick closure, plumbable. Constructed of halogen-free materials. Junction box in accordance with DIN EN 60670. Flame-retardant to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK07 in accordance with DIN EN 50102.
All T-series cable junction boxes are UV-resistant. They are manufactured from polypropylene (a thermoplastic material) and have closed side walls. The necessary openings can be created in any position. EDK plug-in seals or cable glands with locknuts can be inserted into the openings to introduce cables. Junction boxes can be fixed on mounting plates through the openings in the bottom. Lid with marking field and possibility of sealing.
There are no reviews
Data sheet
- Type:
- Wall
- Shape:
- Rectangular
- Version:
- Standard
- Degree of protection:
- IP66
