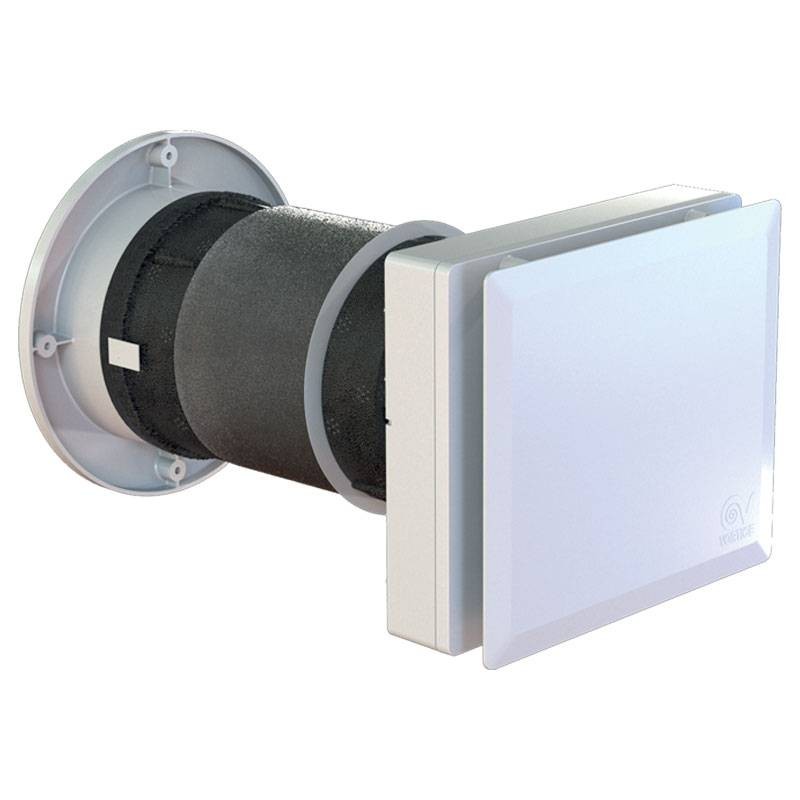

Vortice Heat Recovery Unit HRW 40 Mono Evo 0000012435
VOR 0000012435
8010300124353
Decentralized heat recovery ventilation unit Vortice HRW 40 Mono Evo, for installation in residential and commercial rooms of new buildings or subject to renovation for energy efficiency.
Ideal not only for ensuring proper air exchange, but also to prevent excess humidity in the room and the occurrence of mold on the walls.
Controls for switching on/off, adjusting the operating mode and selecting fan speeds, located on the machine.
Vortice Heat Recovery Unit HRW 40 Mono Evo 0000012435
€263.52
€263.52
Tax included
Tax included
Items Available: 24
: 14
Special features:
- Shockproof and anti-UV plastic resin structure
- Nominal diameter: 160 mm
- Ceramic type heat exchanger with hexagonal cells. High heat exchange efficiency (up to 90% at minimum air flow rate)
- High-efficiency EC fan motor; five operating speeds to maximize performance when needed or minimize noise and consumption
- Controls for on/off, operating mode adjustment and fan speed selection, located on the machine
Three different operating modes:
- Continuous ventilation with heat recovery: the product cyclically extracts and injects air to and from the room by recovering the energy stored in the heat exchanger
- Air extraction-only ventilation: stale air is extracted from the room
- Air supply-only ventilation: the product introduces fresh air into the room
- Two air filters, an IsoCoarse 65% and a coarser pre-filter for dust, both easily removed for washing them
- Saturated filter indicator light visible at the bottom of the chassis, immediately behind the front cover
- Mechanical air supply quick shut-off system integrated into the product chassis
- External rubber grille, which can be installed from the outside using dowels or inserted from the inside, through the hole in the wall, without resorting to external scaffolding
- Anti-insect mesh, which can be inserted into the duct from inside the room
- Possibility of slaving to remote sensors C-TEMP and C-HCS for automatic management of operation logic
Features:
- ISOCoarse 65% filter class
- Max absorbed current (A) 0.05
- Nominal Duct Diameter (mm) 160
- Frequency (Hz) 50-60
- Insulation II° class
- Weight (Kg) 3.30
- Max. power consumption (W) 5
- Max. ambient temp. continuous operation (°C) 30
- Voltage (V) 220-240
- Max recovery efficiency (%) 90
- Max flow rate at max speed (l/s) 11.1
- Max flow rate at max vel. (m³/h) 40
- Max flow rate at min vel. (l/s) 4.2
- Max flow rate at min vel. (m³/h) 15
- Sound power Lw
- dB (A) - max vel 49.3
- Sound power Lw dB (A) - min vel 36.5
- Sound power Lw dB(A) - med vel 42.9
- Max pressure at max vel (mmH2O) 4.8
- Max pressure at max vel (Pa) 47
- Max pressure at min vel. (mmH2O) 1.7
- Max pressure at min vel. (Pa) 17
- Sound pressure Lp dB (A) 3m - max vel 31.8
- Sound pressure Lp dB (A) 3m - med vel 25.4
- Sound pressure Lp dB (A) 3m - min vel 19
There are no reviews
Data sheet
- Type:
- Heat recovery units
