Elicent centrifugal aspirator 230v 537m3/h diameter 148 2AX1599


ELI 2AX1599 8016510039012

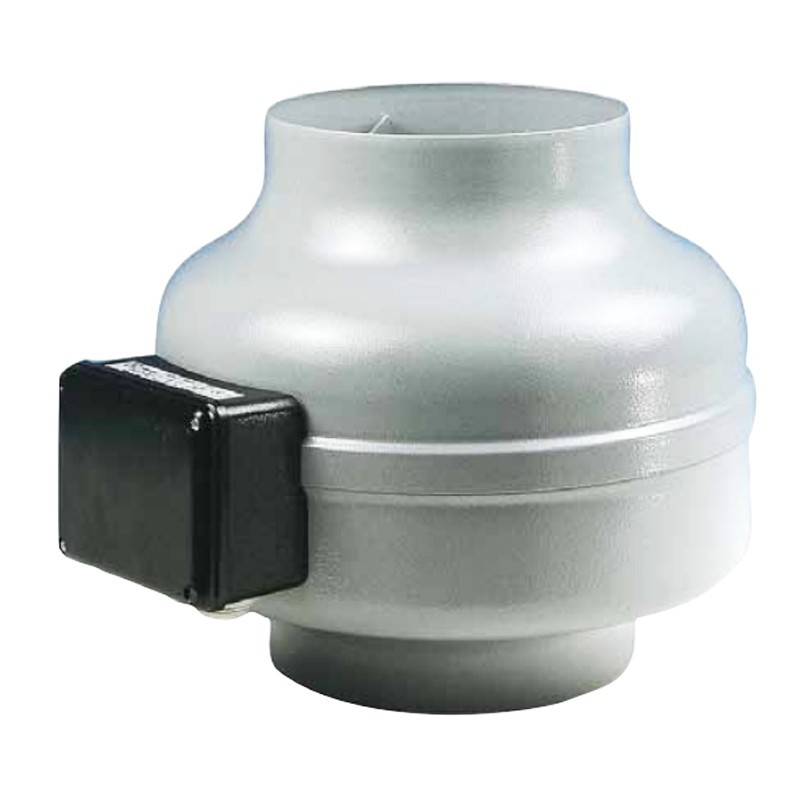

Air and odour extractor fan Elicent model AXC 150B centrifugal duct model, complete with brackets, Application in environments such as: public places, offices, gaming rooms, shops, houses, gyms, locker rooms, laboratories, bars, restaurants, canteens, hoods (with filter), etc.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Elicent centrifugal aspirator 230v 537m3/h diameter 148 2AX1599

€181.89
€181.89

Elicent centrifugal aspirator 230v 537m3/h diameter 148 2AX1599

€181.89
Tax included

Elicent centrifugal aspirator 230v 537m3/h diameter 148 2AX1599

€181.89

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days

Due to its construction and performance characteristics, the AXC series can be used horizontally or vertically at any point in the pipeline. The air sucked in must not be dusty or corrosive.

Features:

  • Centrifugal duct fans
  • Installation in line with the pipeline
  • Brackets and fixing brackets supplied as standard
  • Suitable for clean air with max temperature 60°C
  • IMQ Certificates
  • Protected against splash water (IPX4)
  • Backward blade fan
  • Static and dynamic balancing according to ISO 1940 standards
  • Epoxy powder coated steel structure
  • Galvanized steel flow rectifiers
  • Single-phase motor (230V-50Hz) with long life bearings with thermoprotector
  • Ventilation unit suitable for continuous duty
  • Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU.

Technical characteristics:

  • Piping diameter 150 mm

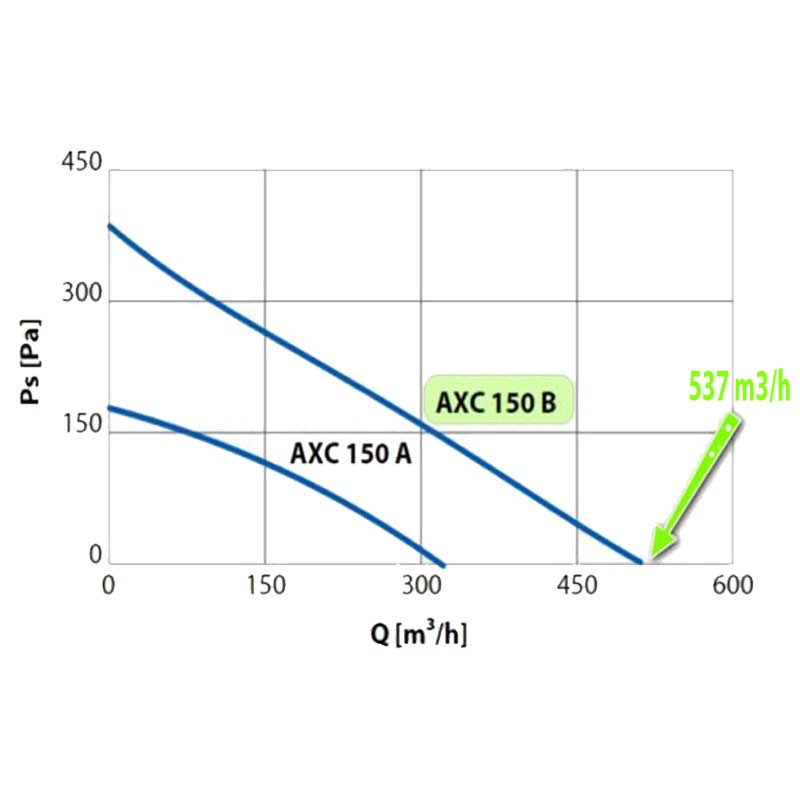

  • Max. flow rate 537 cubic meters/h
  • Pressure Max 406 Pa
  • Voltage at 50 Hz 230V
  • Absorbed Current 0.37 A
  • Power 80 W
  • Speed 2450 RPM/1'
  • Sound Pressure (at 3 meters) 39 db (A) ( Lp(A) at 3 m in free field 230V/50Hz)
  • IPX4 degree of protection
  • Max temperature 60 C°.

Data sheet

Diameter:
150
Type:
Centrifugal fans
