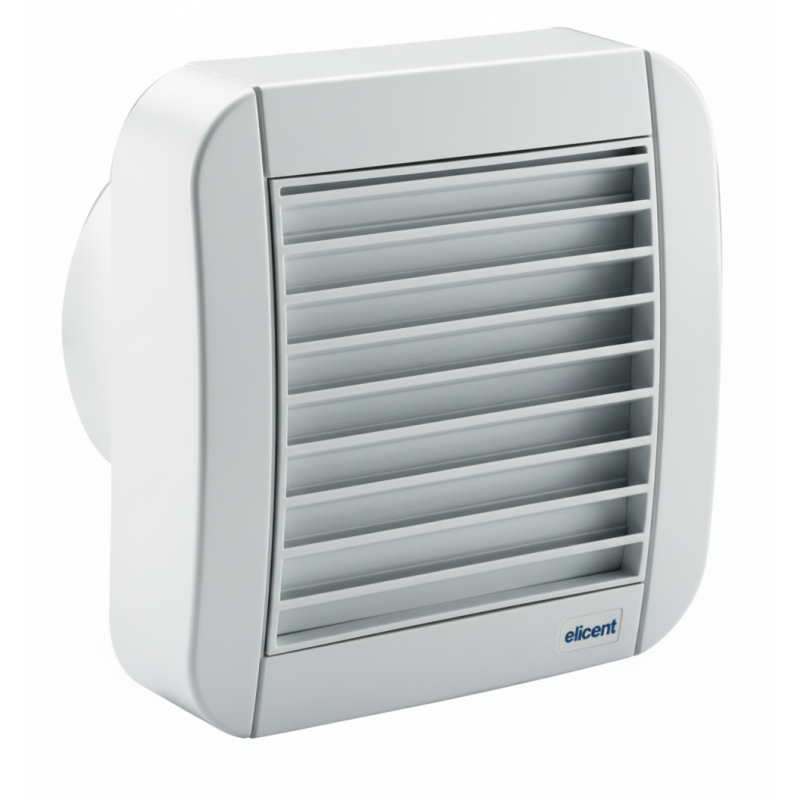

Elicent ECO GG Axial fan with Wings Diameter 120 2MU6201
ELI 2MU6201
8016510018482
Air and odour extractor fan Elicent model ECO LINE 120 GG helical direct expulsion with FEELS that can be opened and closed by gravity, for air extraction in small and medium environments such as: bathrooms, toilets, closets, kitchens, cellars, laundries, etc.
Elicent ECO GG Axial fan with Wings Diameter 120 2MU6201
€56.16
€56.16
Tax included
Tax included
Items Available: 6
: 1
Particularly suitable in environments where splash water protection is required as indicated in current standards (CEI 64-8). The ECO LINE series appliances are helical vacuum cleaners suitable for direct ejection or in short ducts.
Features:
- Helical exhaust fans for direct external ejection
- Wall or ceiling installation
- Accessories for glass installation
- Protected against water splashes (IPX4)
- Complies with CEI EN 60335-2-80, B.T. 2006/95/EC, EMC 2004/108/EC.
- Made in double insulation do not require earthing.
- 230V-50 Hz induction motor with thermal protection suitable for continuous duty
- Self-lubricating Long Life bushings that ensure durability and constant silence over time.
- Structure made of high quality antistatic technopolymers
- The front part, more subject to dust accumulation, is easily removable and washable thanks to the total absence of electrical parts.
- Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU.
Technical characteristics:
- Gravity Grid
- Max. flow rate 155 cubic meters/h
- Pressure Max 39 Pa
- Power 15 W
- Sound Pressure (at 3 meters) 42 db (A)
- IPX4 degree of protection
Data sheet

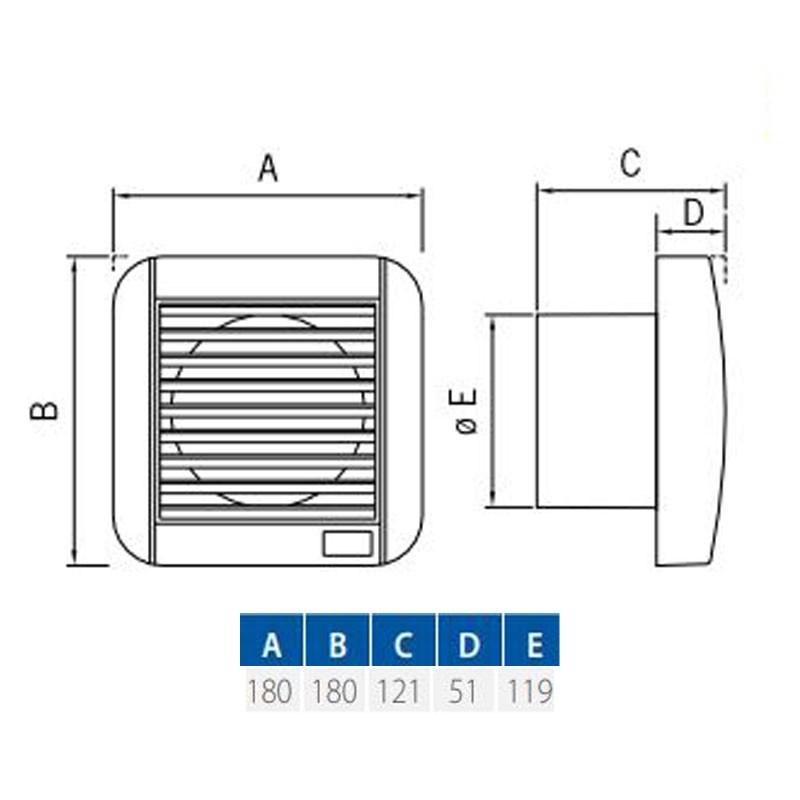

- Diameter:
- 120
- Type:
- Axial fans
- Functions:
- Flaps automatic
