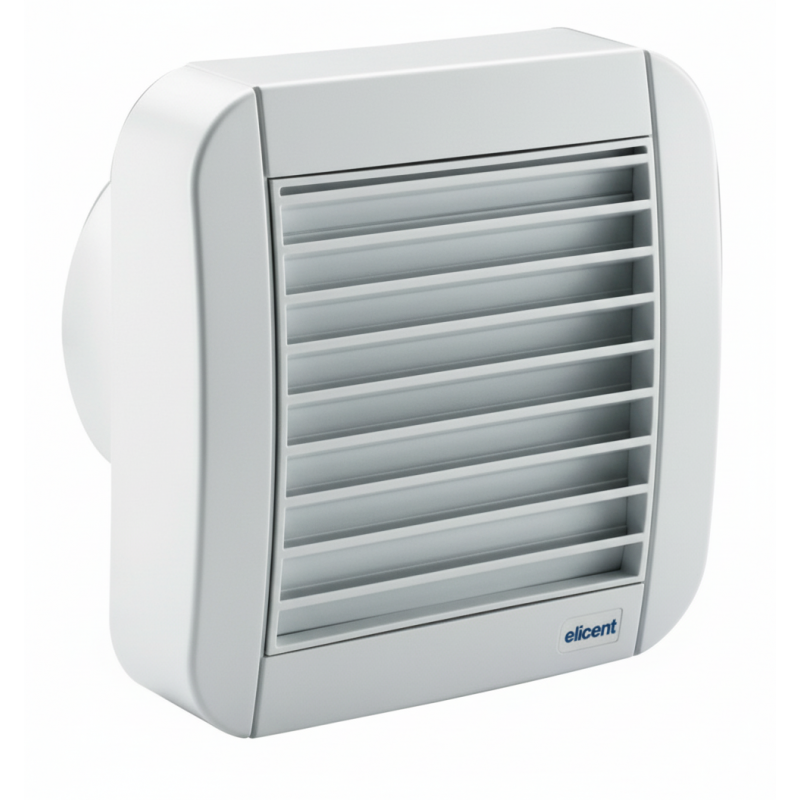

Elicent Axial fan with Timer and Wings Diameter 100 2MU6004
ELI 2MU6004
8016510018321
Air and odour extractor fan Elicent model ECO 100 GG helical direct expulsion with adjustable electronic timer 3-25 minutes and fins that can be opened and closed by gravity, for small and medium environments such as: bathrooms, toilets, storage rooms, kitchens, cellars, laundries, etc...
Elicent Axial fan with Timer and Wings Diameter 100 2MU6004
€66.60
€66.60
Tax included
Tax included
Items Available: 1
Particularly suitable in environments where splash water protection is required as indicated in current standards (CEI 64-8). The ECO LINE series appliances are helical vacuum cleaners suitable for direct ejection or in short ducts.
Features:
- Helical vacuum cleaners for direct external ejection
- Wall or ceiling installation
- Accessories for glass installation
- Protected against splash water (IPX4)
- Complies with CEI EN 60335-2-80, B.T. 2006/95/EC, EMC 2004/108/EC.
- Made of double insulation, they do not require earthing
- 230V-50 Hz induction motor with thermal protection suitable for continuous duty
- Self-lubricating Long Life bushings that ensure long life and constant silence over time
- Structure in high quality antistatic technopolymers
- The front part, more subject to dust accumulation, is easily removable and washable thanks to the total absence of electrical parts.
- Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU.
Technical characteristics:
- Gravity system grid
- Max flow rate 80 cubic meters/h
- Pressure Max 26 Pa
- Power 11 W
- Sound Pressure (at 3 meters) 39 db (A)
- IPX4 degree of protection
- Version with adjustable electronic timer that delays the switch-off of the appliance from 3 to 25 minutes.
Installation facile malgré l'absence de notice en français, bon produit .
the installation and connection explanations are very bad and the motor does not work at all. No explanation in the language of my country (French) and no help for the assembly.
Ottimo prodotto tutto quello che cercavo ad un prezzo imbattibile
Voto DIECI ECCELLENTE un'aspiratore Elicent elicoidale con timer e alette diametro 100 devo mi piace sia per la sua silenziosità che dal suo aspetto esteriore.
Buoni tempi di evasione dell'ordine e di consgna
Data sheet
- Diameter:
- 100
- Type:
- Axial fans
- Functions:
- Timer
