Vortice Axial fan diameter 100 11145
VOR 0000011145
8010300111452

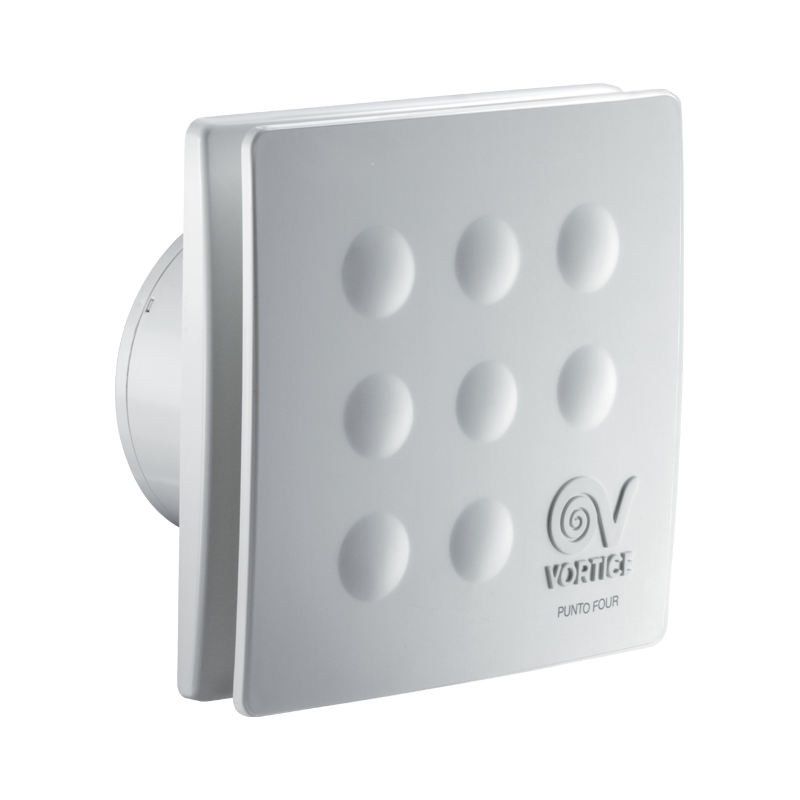

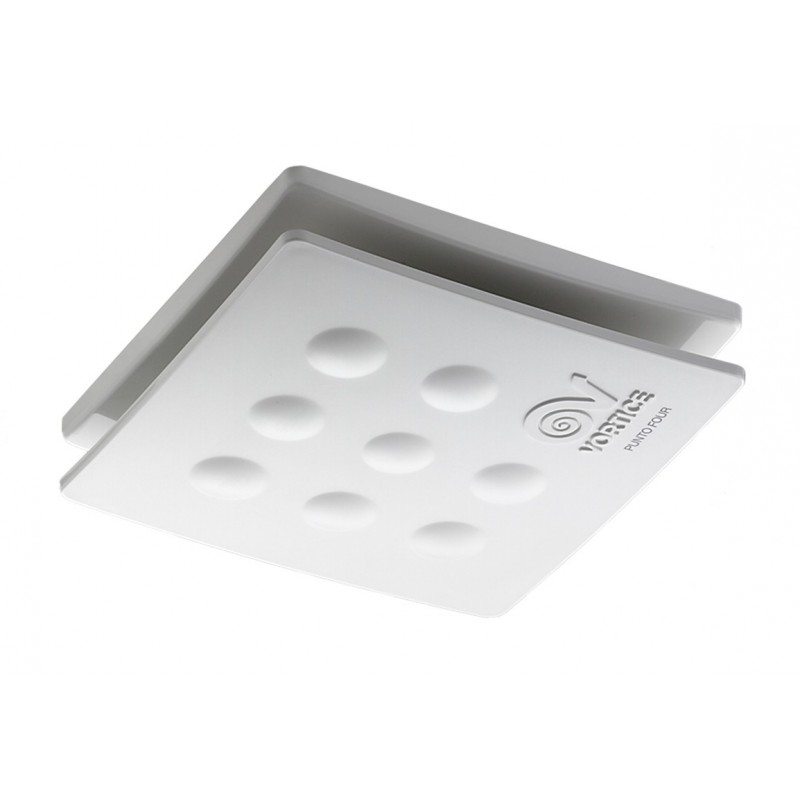

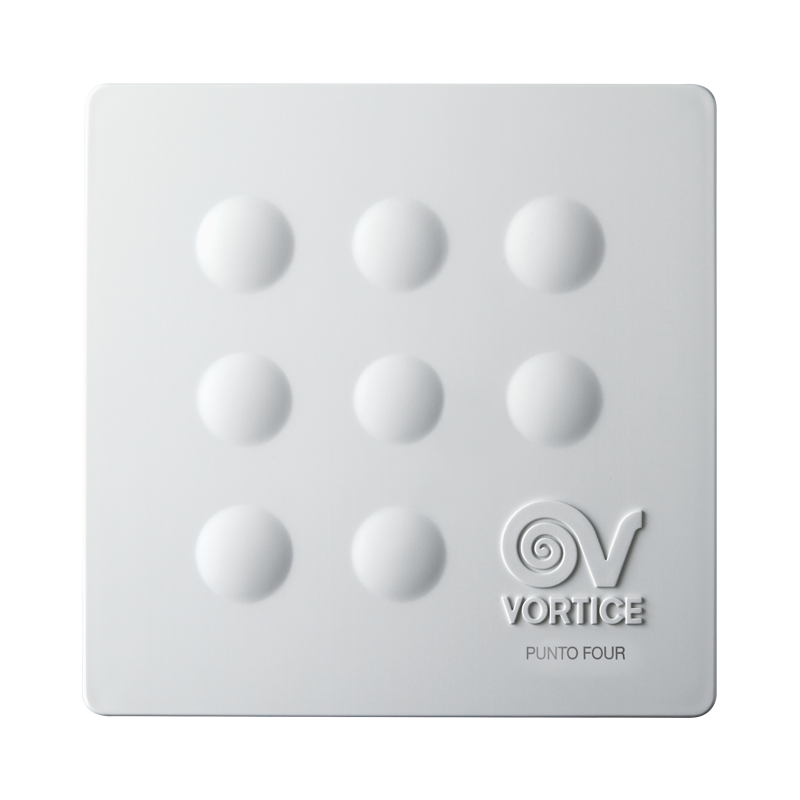

Vortice Axial fan model MFO 100/4", wall application, White colour, Rated diameter 100 mm.
Vortice Axial fan diameter 100 11145
€67.30
€67.30
Tax included
Tax included
Items Available: 43
: 16
Frequently bought together
Features:
- UV resistant plastic resin construction resistant to ageing due to sun exposure ("UV resistant")
- Rated diameter 100 mm
- Thermally protected motor, with shaft mounted on self-lubricating bushings, combined with a helical impeller in thermoplastic material with wing profile blades
- Maximum flow rate 85 m3/h
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulator.
Technical specifications:
- Current consumption max (A) 0.09
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Weight (Kg) 0.555
- Power consumption max (W) 15
- Max. ambient temperature continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate (l/s) 24
- Max flow rate (m³/h) 85
- Max pressure (mmH2O) 3
- Max pressure (Pa) 29
- Sound Pressure Lp [dB (A)] 3m 33.1 db
Prodotto conforme alla descrizione. Ottimi prezzi
Aspiratore ottimo! Spedizione e servizi perfetti!
Estetica Ok. Ma pensavo fosse un po piu performante.
Ottimo.
Data sheet
- Diameter:
- 100
- Type:
- Axial fans
