Vortice Centrifugal Duct Vacuum Cleaner 125 for outdoor use 16092
VOR 0000016092
8010300160924

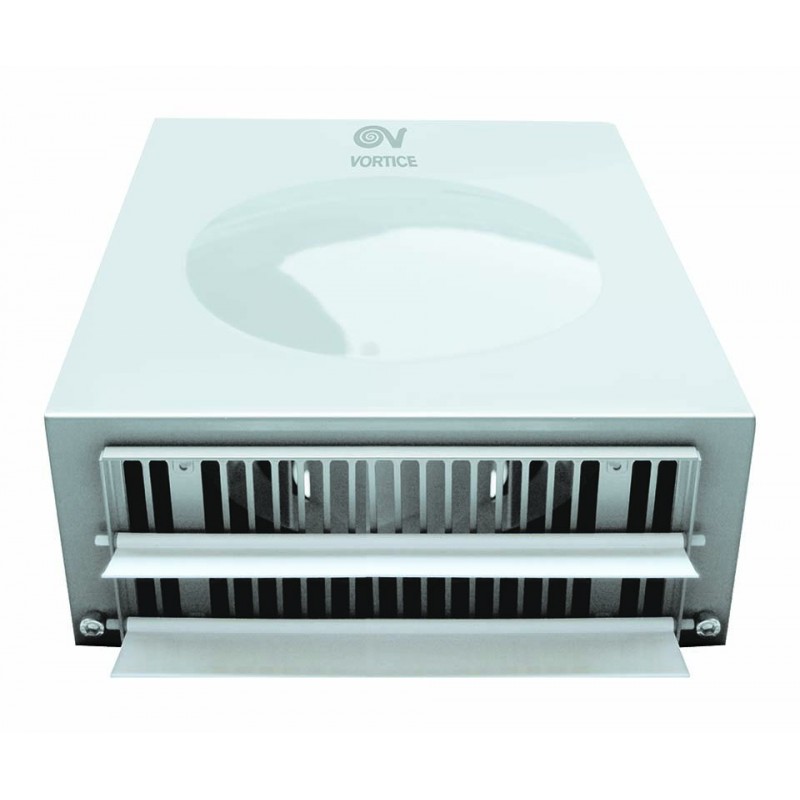

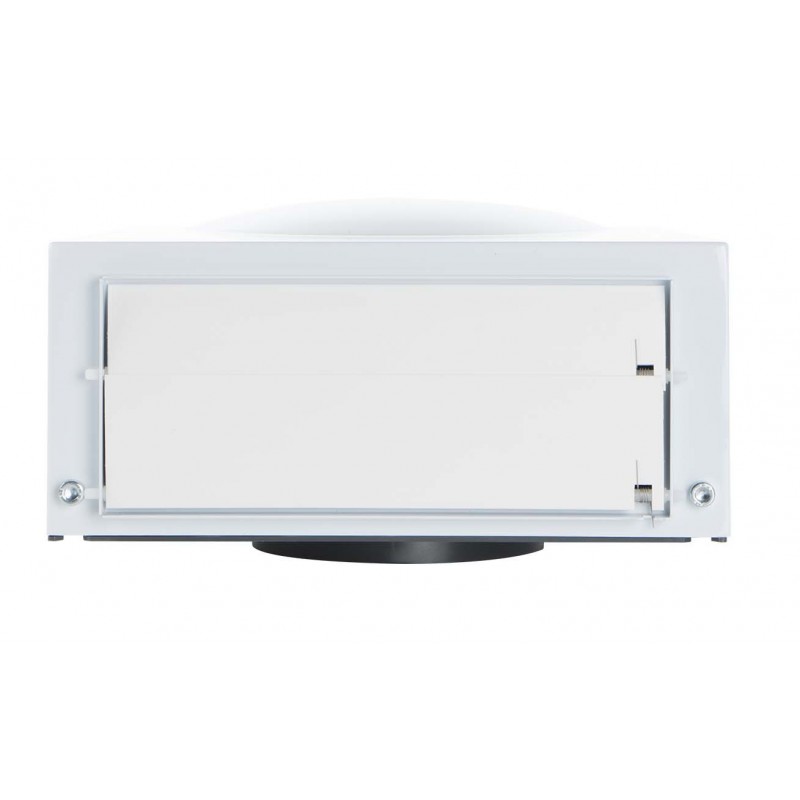

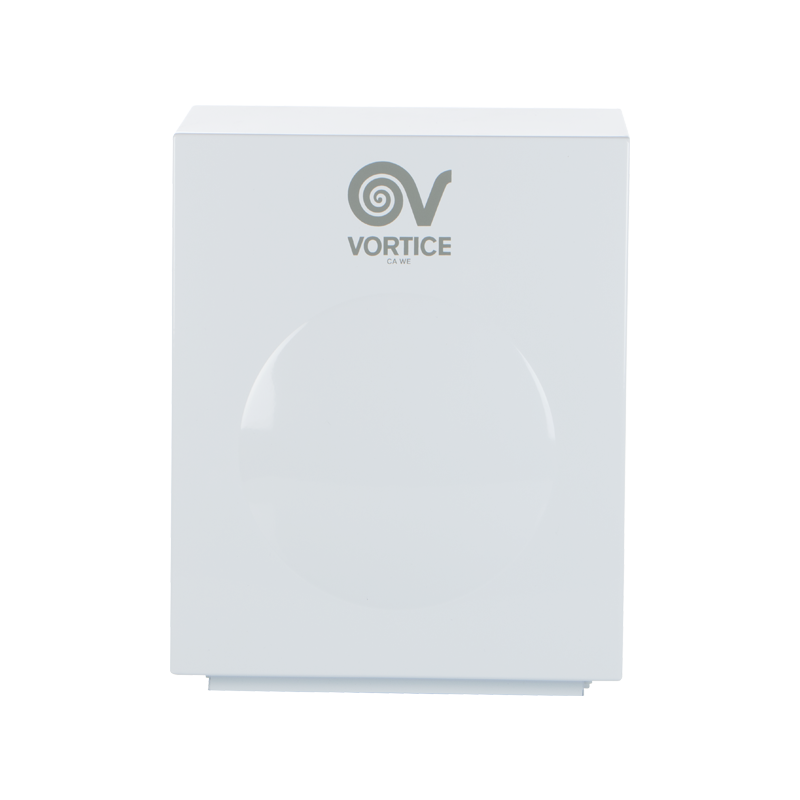

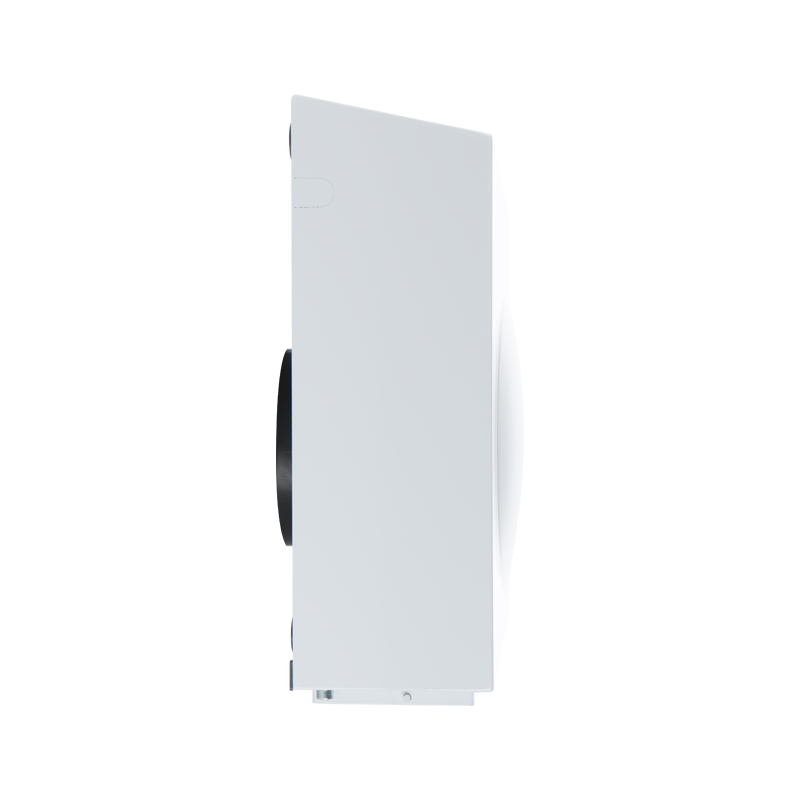

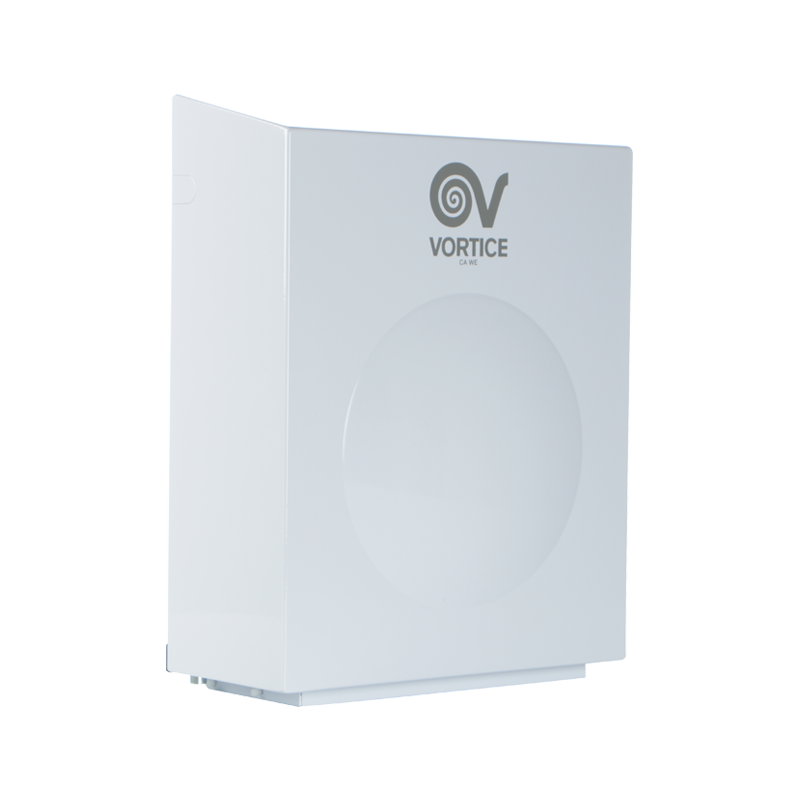

Air and odor extractor fan Vortice model CA 125 WE D centrifugal duct for outdoor installation, in Line wall application, Rated diameter 125 mm.
Vortice Centrifugal Duct Vacuum Cleaner 125 for outdoor use 16092
€301.16
€301.16
Tax included
Tax included
Items Available: 4
: 2
Frequently bought together
Features:
- Outer casing in P04 pressed steel sheet and painted with weather resistant polyester paint
- Rated diameter 125 mm
- 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support, greverse paddle centrifugal dial
- Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence.
Technical specifications:
- Max. current consumption at max. speed (A) 0,23
- Max. current consumption at min. speed (A) 0,13
- Rated Conduit Diameter (mm) 125
- Frequency (Hz) 50
- Degree of Protection IP X5
- Insulation 1st class
- Weight (Kg) 4,5
- Max. power consumption at max speed (W) 50
- Max. power consumption at min speed (W) 12
- Max. ambient temp. continuous operation (°C) 60
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 91.1
- Max. flow rate at max. speed (m³/h) 328
- Max. flow rate at min. speed (l/s) 23,6
- Max. flow rate at min. speed (m³/h) 85
- Max pressure at max speed (mmH2O) 36.7
- Max. pressure at max. speed (Pa) 359.5
- Max. pressure at min. speed (mmH2O) 15,3
- Max. pressure at min. speed (Pa) 150.4
- Sound pressure Lp [dB (A)] 3m - max vel 49.5
- Sound pressure level Lp [dB (A)] 3m - min vel 36.3
- RPM max 2350
- RPM min 880
Già conoscevo il prodotto in quanto ne ho un altro. Il marchio Vortice è sinonimo di qualità!
Data sheet
- Diameter:
- 125
- Type:
- Centrifugal fans
