Vortice Axial fan E 304 T up to 1,400 m3/h 0000040556

Vortice
VOR 0000040556 8010300405568

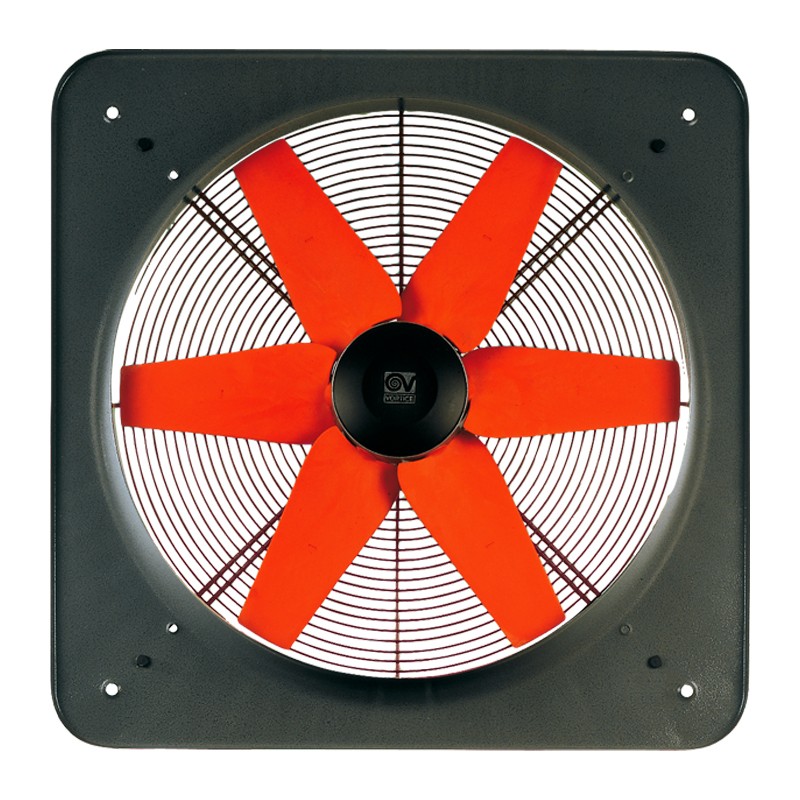

Vortice Axial fan E 304 T up to 1.400 m3/h, Rated diameter 300 mm.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Vortice Axial fan E 304 T up to 1,400 m3/h 0000040556

€336.51
€336.51

Vortice Axial fan E 304 T up to 1,400 m3/h 0000040556

€336.51
Tax included
Items Available: 5
Further availability of the manufacturer

Vortice Axial fan E 304 T up to 1,400 m3/h 0000040556

€336.51

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • Panel for wall mounting made of phosphate-coated steel sheet, painted with grey polyester powder with hammered effect to guarantee resistance to atmospheric agents over time.
  • Mouthpiece which is one with the panel, calibrated to optimise air flow
  • Protection grid (in compliance with UNI ISO 13857) integrating the motor support function, made of electro-welded steel rings and painted with black epoxy paint. The easy removal simplifies the maintenance and cleaning of the fan.
  • Three-phase asynchronous AC motor at 1 speed, with shaft mounted on supports with ball bearings with double sealing shield, with electrical insulation class F
  • Maximum flow rate 1,400 m3/h
  • Impeller with 6 wing profile blades splined to a die-cast aluminium hub, dynamically balanced (UNI ISO 1940, Balancing Class 6.3), optimised to maximise performance and sound levels, moulded in filled polypropylene to achieve high levels of dimensional stability and resistance to atmospheric agents.
  • Speed controllable by Vortex regulator.

Features:

  • Absorbed current at 220 V (A) 0,32
  • Absorbed current at 240 V (A) 0,38
  • Absorbed current at 380 V (A) 0,19
  • Current absorbed at 415 V (A) 0.22
  • Max current consumption (A) 0.38
  • Rated Duct Diameter (mm) 315
  • Frequency (Hz) 50
  • Motor protection IP44
  • Insulation class I
  • Number Poles 4
  • Weight (Kg) 3
  • Absorbed power at 220-380 V (W) 65
  • Absorbed power at 240-415 V (W) 80
  • Maximum power consumption (W) 80
  • Max. ambient temperature for continuous operation (°C) 50
  • Max. inlet air temperature (°C) 50
  • Voltage (V) 220/380 240/415
  • Max. flow rate (l/s) 389
  • Max. flow rate (m³/h) 1400
  • Max pressure (mmH2O) 8,2
  • Max pressure (Pa) 81
  • Sound pressure Lp dB (A) 3 m 53
  • RPM 1400.

There are no reviews

Data sheet

Diameter:
315
Type:
Axial fans
