Afumex Double Insulation Cable FG16OM16 2x10 mmq 1 meter FG16M2X10

Cavi
9X9 FG16M2X10

Afumex Double Insulation Cable 2x10 sq mm FG16OM16 with the following characteristics:

  • Conductor diameter: 4 mm
  • Insulation thickness: 0.7 mm
  • Sheath thickness: 1.8 mm
  • Production diameter: 14.9 mm
  • Max electrical resistance at 20°C: 1.91 ohm/ km
  • Current flow rate In pipe in air 30°: 69A
  • Current flow rate in buried pipe 20°: 66A

The selling price is per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Do you have questions about this product or did you not find what you were looking for? Ask us!

Afumex Double Insulation Cable FG16OM16 2x10 mmq 1 meter FG16M2X10

€4.00
€4.00

Afumex Double Insulation Cable FG16OM16 2x10 mmq 1 meter FG16M2X10

€4.00
Tax included
Items Available: 6820
Further availability of the manufacturer

Afumex Double Insulation Cable FG16OM16 2x10 mmq 1 meter FG16M2X10

€4.00

Buy it within and receive it from Monday, 11 November
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FG16OM cable is suitable for power supply in places with fire hazard and high presence of people such as schools , offices, cinemas, theaters, exhibitions, libraries, hospitals, museums, hotels. For indoor and outdoor fixed installation, even in wet environments; for direct and indirect underground installation. For outdoor installation, on masonry and metal structures, on walkways, pipes, ducts and similar systems. Suitable for bundle installations in environments with higher risk in case of fire.

Reference Construction Products Regulation 305/2011 EU and Standard EN 50575: Given the properties of limiting the development of fire and noxious fumes, the cable is suitable for power supply in buildings and other civil engineering works.

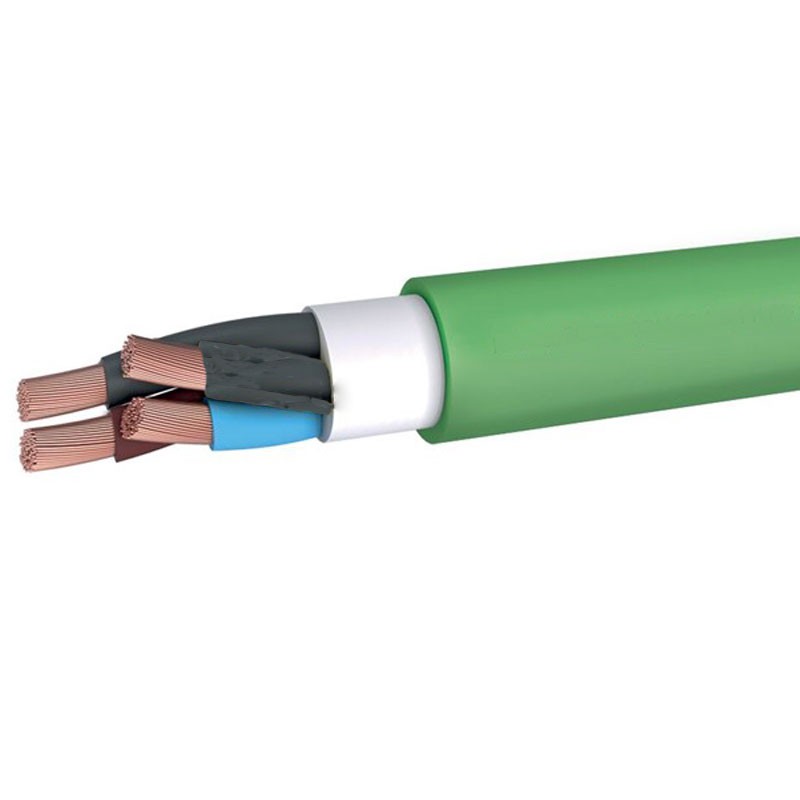

Multi-core energy cable insulated with ethyl propylene rubber, high modulus G16 quality under thermoplastic sheathing M16 quality, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR). Multi-core cable with flexible conductors for fixed laying.

Characteristics:

  • Rated voltage Uo/U: 0.6/1 kV
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (in the absence of mechanical stress)
  • Minimum laying temperature: 0°C
  • Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 4 times the maximum outer diameter
  • Conductor: Flexible annealed red copper cord, class 5
  • Insulator: High-modulus ethyl propylene rubber compound, G16 quality
  • Filler: Compound of non-hygroscopic material

Conditions of use: Particularly suitable in places at risk of fire and with a high presence of people where it is essential to ensure their protection and preserve the systems and equipment from the attack of corrosive gases (offices, schools, supermarkets, cinemas, theaters, discos, etc.) for use indoors in even wet rooms or outdoors. Suitable for fixed installation on masonry and metal structures in free air, in pipe or duct or similar systems. Also permitted for underground installation. (ref CEI 20-67).

There are no reviews

Data sheet

Colour:
Green
Cross-Section:
10mmq
With yellow/green:
No
Number of cables:
2
