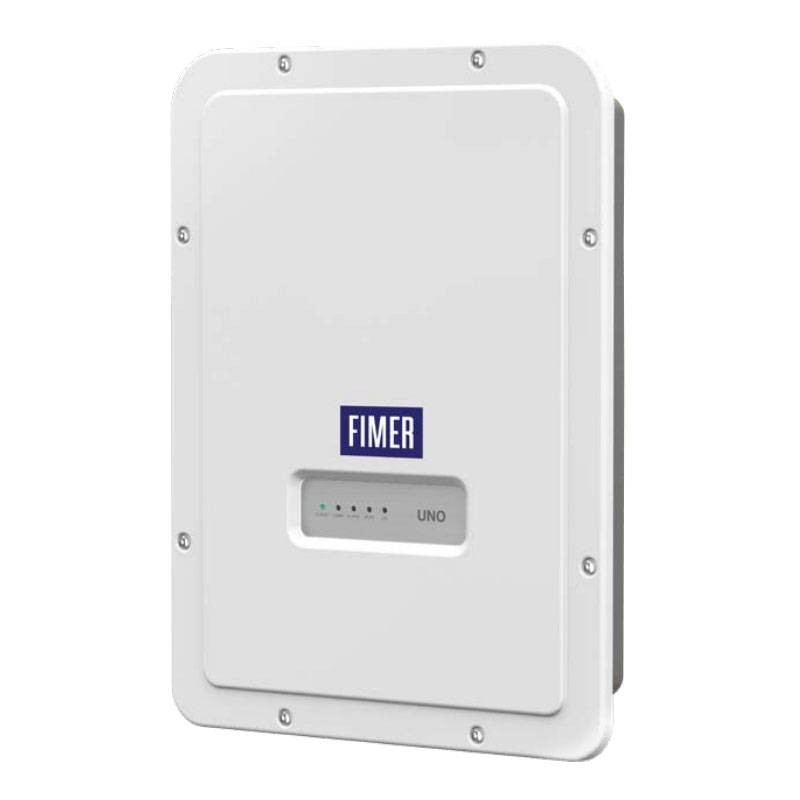

Fimer 5.0KW Photovoltaic Inverter UNO-DM-TL-PLUS-SB-QU 2MPPT Single Phase 3P25990S100F

Brand: Fimer

Code: 06R 3P25990S100F EAN:

Fimer 5.0KW Photovoltaic Inverter UNO-DM-TL-PLUS-SB-QU with the following characteristics:

Rated AC output power 5000W
Type of AC connection to the grid Single-phase
Number of independent MPPTs 2
Model With DC disconnect switch
Integrated Wireless communication interface
Integrated communication protocol ModBus TCP (SunSpec)
Commissioning Web User Interface, Aurora Manger Lite
Monitoring Plant Portfolio Manager, Plant Viewer, Plant Viewer for Mobile, Energy Viewer

Data sheet FIMER 3P25990S100F

Fimer 5.0KW Photovoltaic Inverter UNO-DM-TL-PLUS-SB-QU 2MPPT Single Phase 3P25990S100F

€1,206.34

Fimer 5.0KW Photovoltaic Inverter UNO-DM-TL-PLUS-SB-QU 2MPPT Single Phase 3P25990S100F

€1,206.34
Tax included

Items Available: 2

: 1

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

The new UNO-DM-PLUS-Q family of single-phase inverters, with power classes from 3.3 to 5.0 kW, is the optimal solution for residential installations.

All models, enclosed in the same housing, are equipped with dual MPPT, achieving high performance with minimum space requirements.

Easy to install, quick to set up:

The presence of Plug and Play connectors, on the DC and AC side, as well as wireless communication, makes installation easy, fast and safe, without having to open the front of the inverter.

Connectivity and digital integration:

Built-in data logger capabilities and direct data transfer over the Internet (via Ethernet or WLAN) allow customers to enjoy the benefits offered by the Aurora Vision monitoring portal. Advanced communication interfaces (WLAN, Ethernet, RS485), together with an efficient Sunspec-compatible Modbus (TCP/RTU) communication protocol, enable easy integration of the inverter within any smart environment, and with third-party monitoring and control devices. A comprehensive set of commands, with efficient built-in algorithm, enables dynamic control of grid feed-in (e.g., zero feed-in) making the inverter suitable for worldwide applications and compliant with utility regulatory requirements.

Energy Viewer:

This mobile app is a useful tool for residential users who can remotely monitor the performance of their solar systems, enabling them to increase self-consumption and self-sufficiency.

Key features:

Wireless access to the built-in user interface
Simplified commissioning procedure
Dynamic control of grid feed-in
Remote firmware update for the inverter and its components
Remote monitoring via Aurora Vision cloud.

Input:

Maximum absolute DC input voltage 600V
Input DC trigger voltage 200 V (adj. 120...350 V)
Input DC voltage operating range 0.7 x Vstart...580 V (min 90 V)
Rated input DC voltage 360V
Rated DC input power 5150W
Number of independent MPPTs 2
Maximum DC input power for each MPPT 3500W
MPPT range of DC voltage 170,,,480V
DC power limitation with parallel MPPT configuration Linear derating from max to zero (480 V?VMPPT?580 V)
Maximum DC input current for each MPPT 30.5/19.0-11.5 A - (MPPT 1 - MPPT 2)
Maximum input short-circuit current for each MPPT 22.0A
Number of input DC connection pairs 1
DC connection type PV plug-in connector

Input protections:

Reverse polarity protection Yes, current limited source.
Input overvoltage protection - varistor Yes
Insulation control In accordance with local regulations
DC disconnect characteristics (DC disconnect version) 25 A / 600 V

Output:

Type of AC connection to the grid Single-phase
Rated AC power output 5000W
Maximum AC power output 5000W
Maximum apparent power 5000VA
Nominal AC output voltage 230V
AC output voltage range 180...264V
Maximum AC output current 22A
Contribution to short circuit current 24A
Rated output frequency 50/60 Hz
Output frequency range 47...53/57...63 Hz
Rated power factor and adjustability range > 0.995, adj. ± 0.1 to 1 (inductive/capacitive)
Total current harmonic distortion < 3.5%
Type of AC connections Female panel-mounted connector

Output protections:

Anti-islanding protection In accordance with local regulations.
Maximum external AC overcurrent protection 32 A
Output overvoltage protection - varistor 2 (L - N / L - PE)

Operating performance:

Maximum efficiency 97.4%
Weighted efficiency (EURO/CEC) 97.0% / -
Power supply threshold 8 W
Nighttime consumption <0.4 W

Integrated communication:

Integrated communication interface 5) Wireless
Integrated communication protocol ModBus TCP (SunSpec)
Commissioning Web User Interface, Aurora Manger Lite
Monitoring Plant Portfolio Manager, Plant Viewer, Plant Viewer for Mobile, Energy Viewer

Environmental:

Ambient temperature -25...+60°C / -13...140°F with derating above 45°C/113°F
Relative humidity 0...100 % with condensation
Maximum operating altitude without derating 2000 m / 6560 ft

Physical:

IP 65 environmental protection rating
Cooling system Natural
Dimensions (H x W x D) 553 x 418 x 175 mm / 21.8 x 16.5 x 6.9
Weight 15 kg / 33 lb
Mounting system Wall brackets

Safety:

Isolation level No transformer
Certifications CE , RCM
EMC and safety standards IEC/EN 62109-1, IEC/EN 62109-2, AS/NZS 4777.2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12.
