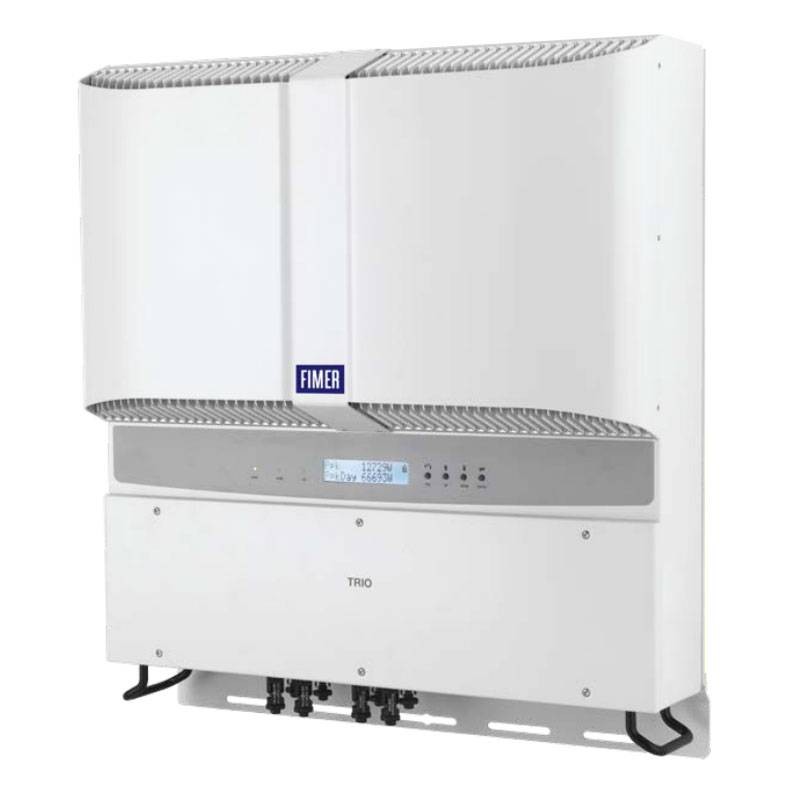

Fimer Photovoltaic Inverter PVI 12.5KW TL OUTD S 3N82990S000A

Brand: Fimer

Code: 06R 3N82990S000A EAN:

Fimer Photovoltaic Inverter model PVI TL OUTD S:

Rated AC output power 12500W
Number of independent MPPTs 2
Type of AC connection to the grid Three-phase 3F+PE or 3F+N+PE
User interface LCD display with 16 characters x 2 lines
Model With integrated DC disconnect switch

Data sheet 3N82990S000A IT

Fimer Photovoltaic Inverter PVI 12.5KW TL OUTD S 3N82990S000A

€2,129.75

Fimer Photovoltaic Inverter PVI 12.5KW TL OUTD S 3N82990S000A

€2,129.75
Tax included

Out of stock

Further availability of the manufacturer

Incoming

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

This three-phase inverter is the link between the residential world and commercial and industrial applications. The fast and accurate MPPT algorithm maximizes energy harvest from PV modules. Two independent MPPTs and constant efficiency over a wide range of power and input voltage ensure high performance under all operating conditions. The wide input voltage range also makes the inverter suitable for systems with short string lengths.

Key features:

DC/AC conversion unit with three-phase bridge topology
Transformerless topology
Each inverter is programmed with specific grid standards that can be configured directly in the field
Wide input voltage range
Dual input section with independent MPPT tracking enables optimal energy harvesting even in the case of strings oriented in different directions
Integrated DC disconnect switch in accordance with international standards (-S and -FS versions)
Natural convection cooling
Outdoor enclosure for use in any environmental conditions
RS- 485 communication interface (for connection with laptops or data loggers)

Features:

Input:

Maximum absolute DC input voltage 900V
Input DC trigger voltage 360V (adj. 250...500V)
Input DC voltage operating range 0.7 x Vstart850 V (min 200 V)
Nominal DC input voltage 580V
Nominal DC input power 12800 W
Number of independent MPPTs 2
Maximum DC input power for each MPPT 8000W
DC voltage range with parallel MPPT configuration at P 360...750 V
DC power limitation with MPPT configuration in parallel Derating from max to zero (750 V?VMPPT?850 V)
DC power limitation for each MPPT with independent MPPT configuration at Pacr, example of maximum unbalance 8000 W (445 V?VMPP?750 V) other channel: Pdcr-8000 W (270 V?VMPPT?750 V)
Maximum DC input current for each MPPT 36.0 A / 18.0 A
Maximum input short-circuit current for each MPPT 22A
Number of input DC connection pairs for each MPPT 2
DC connection type Quick plug-in PV connector

Input protections:

Reverse polarity protection Inverter-only, current-limited source protection
Input overvoltage protection for each MPPT-varisor Yes
Isolation control In accordance with local regulations
DC disconnect characteristics for each MPPT (DC disconnect version) 25 A / 1000 V
Fuse characteristics (where present) 15 A / 1000 V

Output:

Type of AC connection to the grid Three-phase 3F+PE or 3F+N+PE
Rated AC power output 12500 W
Maximum AC power output 13800 W
Maximum apparent power 13800 VA
Nominal AC output voltage 400V
AC output voltage range 320...480V
Maximum AC output current 20A
Contribution to short circuit current 22A
Rated output frequency 50 Hz / 60 Hz
Output frequency range 47...53 Hz / 5763 Hz
Rated power factor and adjustability range > 0.995, adj. ± 0.9 with Pacr =12.5 kW, ± 0.8 with max 13.8 kVA
Total current harmonic distortion < 2%
Type of AC connections Screw terminal block, M40 cable press

Output protections:

Anti-islanding protection In accordance with local regulations.
Maximum external AC overcurrent protection 25.0 A
Output overvoltage protection - varistor 3, plus gas arrester

Operating performance:

Maximum efficiency (?max) 97.8%
Weighted efficiency (EURO/CEC) 97.2% / -
Power supply threshold 30W
Nighttime consumption < 1.0 W

Environmental:

Ambient temperature -25...+60°C (-13...140°F) with derating above 50°C (122°F)
Relative humidity 0...100% with condensation
Noise emission pressure, typical 50 dBA @ 1 m
Maximum operating altitude without derating 2000 m / 6560 ft

Physical characteristics:

IP65 environmental protection rating
Cooling system Natural
Dimensions (H x W x D) 716 mm x 645 mm x 224 mm / 28.2 x 25.4 x 8.8
Weight < 41.0 kg / 90.4 lbs
Mounting system Wall brackets

System:

Isolation level No transformer
Certifications CE (50 Hz only), RCM
EMC and safety standards EN 50178, IEC/EN 62109-1, IEC/EN 62109-2, AS/NZS 3100, AS/NZS 60950.1, EN 61000-6-2, EN 61000-6-3, EN 61000-3-11, EN 61000-3-12
Grid connection standards (check availability through sales channel) IEC 0-21, IEC 0-16, DIN V VDE V 0126-1-1, VDE-AR-N 4105, G59/3, C10/11, EN 50438 (not for all national variants), RD 1699, RD 413, RD 661, P.O. 12.3, AS/NZS 4777, IEC 61727, IEC 62116, BDEW, MEA, NRS 097-2-1, VFR 2014.
