Notifier 3 Relay Board for VGS STS3REL Series Detectors

Notifier
NOT STS3REL

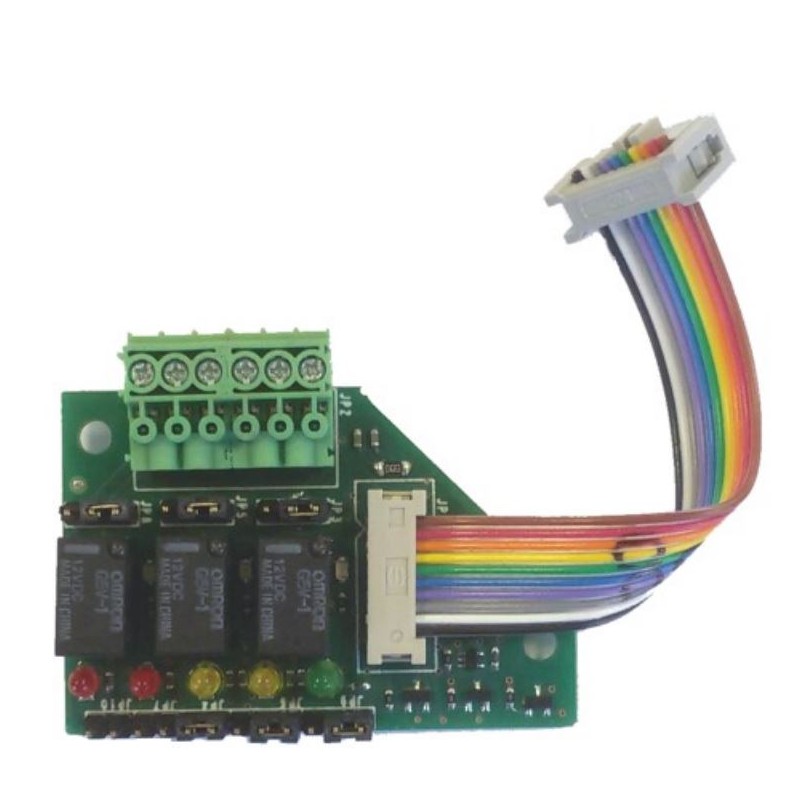

Notifier 3 relay board for VGS series detectors:



  • Relay contact rating: 24 Vdc - 1A
  • Operating voltage: 10.2 Vdc to 28 Vdc




When switching on, check that the detector power supply is between the values described above. Simple to connect to the detector motherboard.



Compatible for direct installation inside detectors series: S2096, S2097, S2130, S2155, S23xx, S14xx, S24xx.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Notifier 3 Relay Board for VGS STS3REL Series Detectors

€39.20
€39.20

Notifier 3 Relay Board for VGS STS3REL Series Detectors

€39.20
Tax included
Items Available: 1
Further availability of the manufacturer

Notifier 3 Relay Board for VGS STS3REL Series Detectors

€39.20

Buy it within and receive it from Thursday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The 3 relay board (STS3REL) for SMART3/SMARTS series gas detectors provides outputs with voltage-free contacts:

  • The first output is associated with Fault and Watch-dog signalling
  • The second output can be associated with detector alarm 1 or alarm 2
  • The third output can be associated with detector alarm 2 or alarm 3



The board is equipped with a flat cable with connector for insertion into the appropriate connector on the detector base board.



NOTE: when used with SMARTS series detectors the function associated with the 3 relays can be changed in the detector.



Mounting instructions:

  • The STS3REL must be fitted with the detector switched off.
  • Insert the posts into the holes on the detector base circuit where indicated
  • Insert the connector at the end of the flat cable of the 3 relay board into the appropriate connector on the base of the SMART; point the protrusion on the connector towards the inside of the circuit
  • Tighten the screws on the posts to secure the relay board. Once assembly is complete, you will notice that the terminal board is facing upwards, i.e. towards the detector terminal board
  • Carry out the wiring
  • Switch on the detector





The STS3REL board is designed with the aim of being able to be inserted in systems where a SIL2 functional safety level is required. Three steps are required to ensure this:

  • The relays must be normally energised
  • During installation, a 1.33 A fuse must be connected to the output of each relay
  • Verify the function of the relay contacts at least once a year by testing the gas detector and checking the relays for tripping
