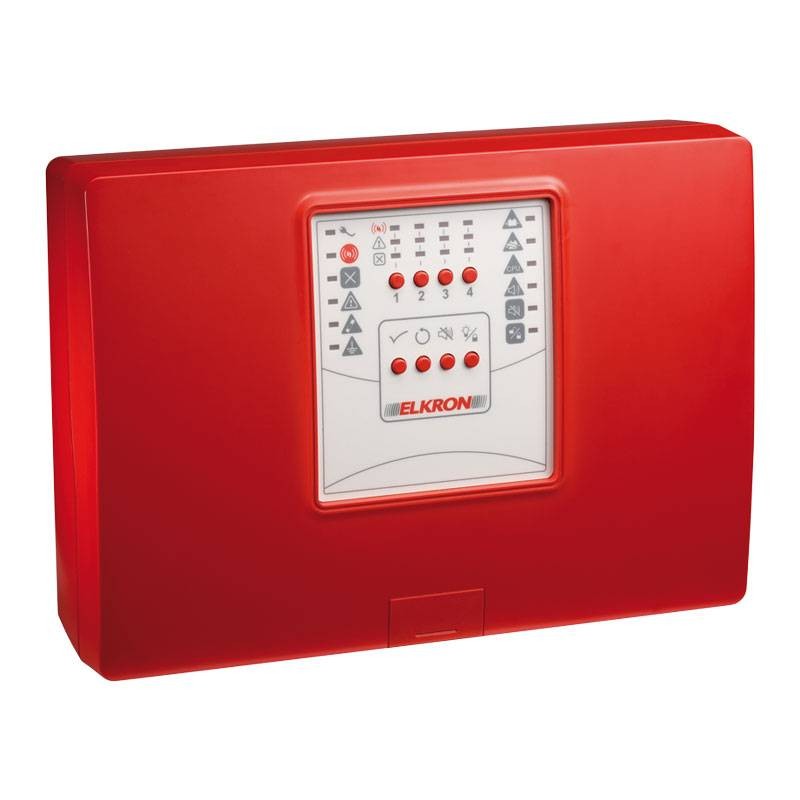

Elkron C404 conventional fire alarm control panel 4 zones 80SC8400121
EKO 80SC8400121
8034034440602
Elkron C404 4 zone microprocessor-based conventional fire alarm control panel:
- Microprocessor-based
- Capacity from 4 to 20 zones
- Nonvolatile memory
- Programmable alarm threshold
- Simple and intuitive user interface
- Up to 32 conventional detectors per zone
- 1 programmable relay output per input
Elkron C404 conventional fire alarm control panel 4 zones 80SC8400121
€233.41
€233.41
Tax included
Tax included
Items Available: 4
: 2
Frequently bought together
The 400 Series control panels are compatible with Elkron's entire range of conventional detectors.Finally, as is now a well-established tradition, the intuitive user interface, simplifies and accelerates all programming and management operations of the fire alarm system.
Simple and complete:
- Elkron's 400 Series conventional fire protection system is easy to install and manage, thanks to its features and wide range of accessories. Designed to meet the installation needs for small and medium-sized systems in the civil, industrial, and service sectors. System events are collected on a nonvolatile memory and displayed by means of immediately understandable icons. The system is programmed using function keys on the control panel faceplate. The versatility of the 400 Series makes it possible, for example, to set an alarm threshold for each zone (single and double/multiple consensus), to expand capacity up to 20 zones, and to have a programmable relay output for each control panel input.
Advantages:
- Each line is considered as a zone and can be turned on or off by a keypad command. The control panel has two outputs: a general alarm siren output, which is activated with at least one zone in alarm, and a general fault output, which is activated when a fault condition occurs in the control panel or on a zone
- The general alarm siren output can be activated or deactivated via keypad
- Other relay outputs, general alarm and zone alarm, are available on optional relay board
- It is possible, independently for each zone, to decide whether to obtain alarm signaling with only one device in alarm (single consent) or with at least two devices in alarm (double consent). This allows you to limit false alarms.
Features:
- Number of zones 2
- EN54 part 2 AND part 4 certified
- Power supply 26.4 VDC
- Absorption in pre-alarm (single consensus) 20 mA
- Current consumption in alarm (double consensus) 40 mA
- Supervised siren output 24 Vdc @ 500 mA
- Field output 24 Vdc @ 500 mA
- Fault relay output 24 Vdc @ 1 A
- ABS material
- LED zone signals
- Battery housings 2 batteries 7A - 12Vdc
- Operating temperature -5 °C ÷ +50 °C
- Dimensions WxHxD 340 x 240 x 96 mm
There are no reviews
Data sheet
- Type: Control units
- Zone: 4
