Elkron P440 conventional alarm button with reset 80SB3800121
EKO 80SB3800121
8033959744802
Elkron P440 conventional alarm button with red color reset:
- Dimensions: 110(W) x 110(H) x 42(D) mm
- Weight: 100 grams
- Power consumption in alarm: 20 mA @ 18 Vdc
- Drive Type: Reset Usable only with ELKRON/SIRA Conventional Systems
Elkron P440 conventional alarm button with reset 80SB3800121
€12.35
€12.35
Tax included
Tax included
Items Available: 35
: 28

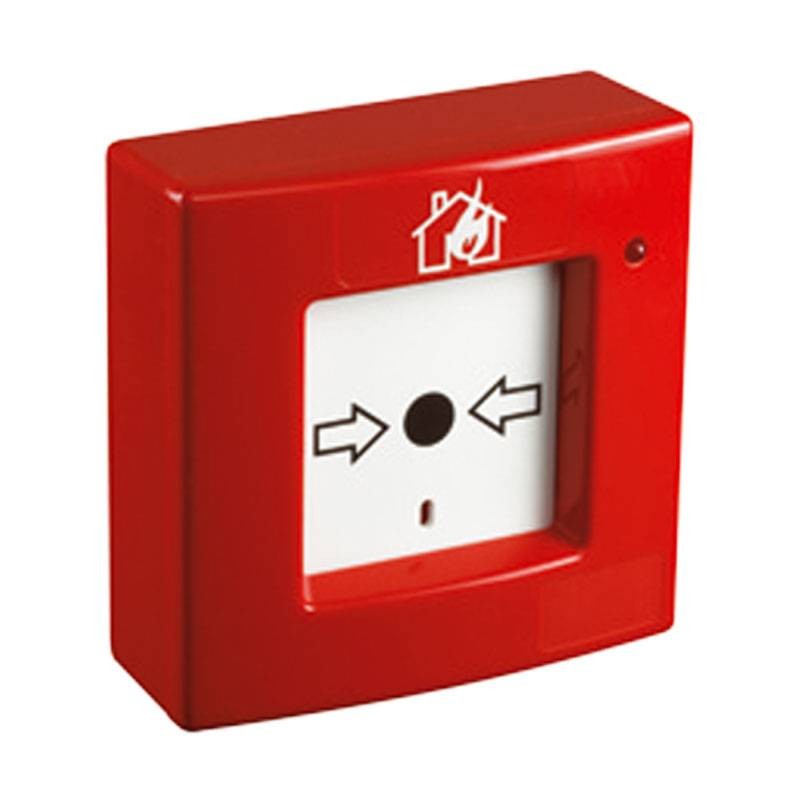

The P440 fire button is used for manual alarm signaling on conventional type fire alarm systems. The button is a rearmable type: by making a pressure on the middle part of the front panel, it will move inward, actuating the switch and generating the alarm condition. Turning on the red LED indicates the alarm condition. Resetting from the alarm condition can be done by inserting the provided key into the slot.
Features:
- Operating voltage 20 VDC (-15%, +10%)
- Current consumption in alarm condition (JP1 open) 26 mA @ 20Vdc
- Current consumption in alarm condition (JP1 closed) 53 mA @ 20Vcc
- LED indicator Steady red: alarm condition
- Operating temperature -10 ? 55°C ± 2°C (14 / 131°F)
- Relative humidity 93 % ± 2% noncondensing
- Storage temperature -30 / 70°C (-22 / 158°F)
- Alarm condition Type A
- Environmental class Indoor
- Dimensions 110x110x42 mm
- Weight 100 g
- Container material ABS V0
- Complies with EN54-11: 2001/A1:2005 standard
There are no reviews
Data sheet
- Type:
- Buttons
