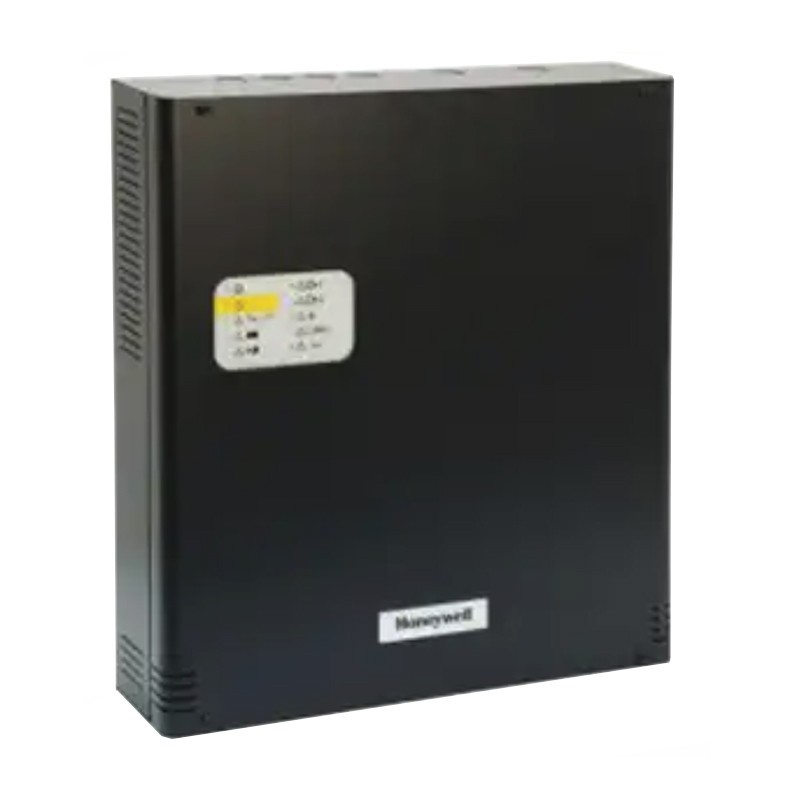

Notifier HLSPS50 5A 24VDC Auxiliary Power Supply
NOT HLSPS50
Notifier microprocessor-based auxiliary power supply with the following features:
- Input voltage: 115-230VAC 50/60 Hz
- Number of Outputs: 2 x 2.2A or 1.4 x 4.4A
- Output voltage: 28VDC +/- 2%
- Output current: 5 Amps with batteries disconnected
- Battery charging current: 300mA (7.2Ah Batteries) - 600mA (17Ah)
- Fault relay contact 1A 24VDC
- Dimensions: 377(W) x 408(H) x 92(D) mm
- Mounting holes: 337mm (Horizontal), 352mm (Vertical)
Notifier HLSPS50 5A 24VDC Auxiliary Power Supply
€273.54
€273.54
Tax included
Tax included
Items Available: 59
: 5
Installation:
- The power supply unit consists of a steel box with pre-truncated cable passages located at the top and bottom for easy installation and wiring.
Strengths:
- Suitable for use in fire detection systems where an off-center power source is needed relative to the location of the power unit
- Consists of a steel box designed for ease of installation and use
- Equipped with an input that can be used to disable battery charging when an alarm condition arises, increasing the available current on the output by an additional 300mA
- Optimizes and increases available current while still allowing full monitoring and protection of outputs
- Ability to select standby time from 24 to 72 hours depending on batteries fitted
- Compatible with line voltages from 110Vac up to 230Vac
There are no reviews
Data sheet
- Type:
- Power supplies
