PH120 cable FTE29OHM16 2x2.5 mmq skein 100 meters RSH25002M100

Brand: Cavi

Code: BDS RSH25002M100 EAN:

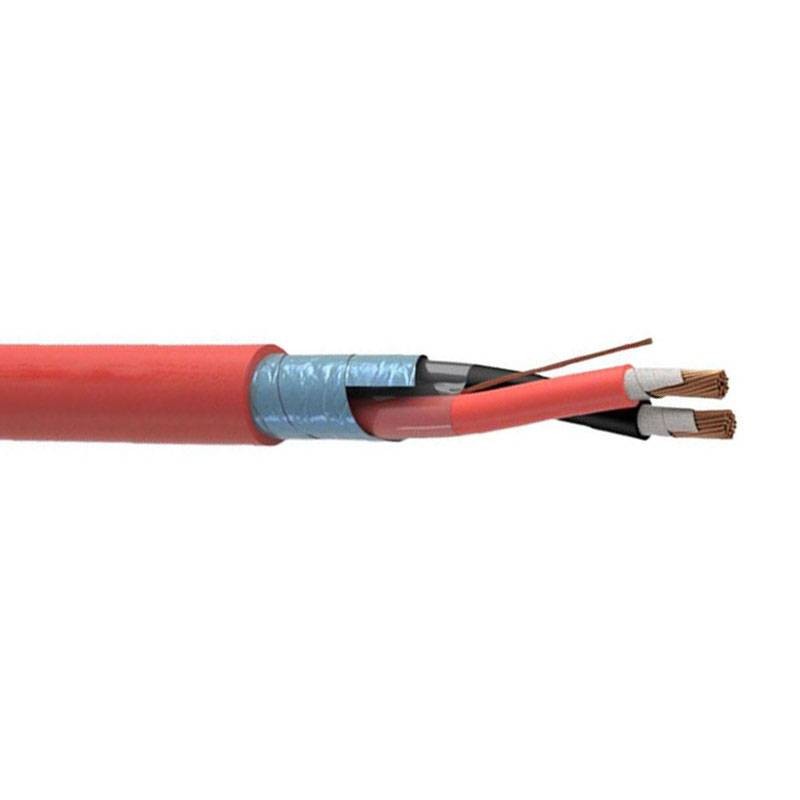

PH120 FTE29OHM16 2x1.5 sq mm cable with the following characteristics:

Outer diameter: 10 mm
Maximum conductor resistance at 20°C: 7.98 Ohm/km
Conductor: flexible red copper, class 5
Fire barrier: Glass/mica tape
Insulation: Halogen-free cross-linked compound E29
Cordage: Twisted/concentrically corded cores
Wrapping and protection: Polyester tape on total
Shielding: Aluminum/polyester tape on total, with flexible red copper continuity conductor
Outer sheathing: LSZH compound based on thermoplastic material, M16 quality
Core colors: Red Black
Outer sheath color: Red (based on RAL 3000)

The selling price is intended per meter.

Minimum saleable quantity: hank of 100 meters.

Data sheet RSH25002M100 IT

PH120 cable FTE29OHM16 2x2.5 mmq skein 100 meters RSH25002M100

€1.76

PH120 cable FTE29OHM16 2x2.5 mmq skein 100 meters RSH25002M100

The minimum purchase order quantity for the product is 100.

€1.76
Tax included

Items Available: 1400

: 1120

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Cable complying with the requirements of the Construction Products Regulation (CPR EU 305/11), with the aim of limiting the production and spread of fire and smoke. Shielded LSZH cable for signaling and control, fire resistant (PH120), in accordance with IEC 20-105 and UNI 9795:2013.

Can be used for equipment connections of fixed automatic fire detection and manual fire alarm signaling systems, whether or not connected to extinguishing systems or another protection system (both active and passive type), intended to be installed in buildings, regardless of the intended use.

Suitable for connections of fire-fighting systems and actuators (e.g., electric locks, natural smoke and heat evacuators, electromagnets for release of fire doors, etc.) with operating voltages between 12V and 24V AC.

This cable, when used to supply category 0 systems (rated voltage less than or equal to 50V, if AC, or 120V, if DC or non-corrugated), can also be installed in coexistence with 450/750V or 0.6/1kV energy cables supplying loads having rated voltage 230/400V. The cable, if stored/placed outdoors, must be UV protected. Underground laying, even if protected, is not allowed.
