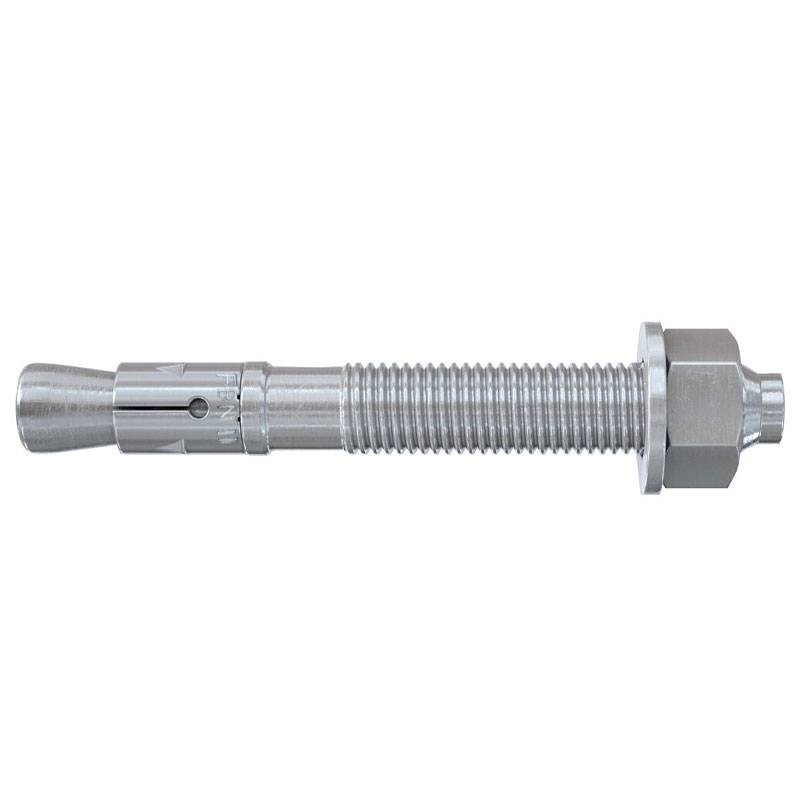

Fischer FBN II static load anchor diameter 6 mm 100 pieces 00505527

Fischer
FIS 00505527 4048962070248

Fischer FBN II 6/10 high-performance beat-through plug for static loads on non-cracked concrete with the following characteristics:



  • Hole diameter: 6 mm
  • Minimum hole depth for through-hole installation: 50 mm
  • Useful length hef,stand/hef,red max: 10 mm
  • Clamping key: 10 mm



Applications: Steel structures, Balustrades, Consoles, Stairs, Cable walkways, Machinery, Steps, Gates, Facades.



Pack of 100 pieces.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Fischer FBN II static load anchor diameter 6 mm 100 pieces 00505527

€0.40
€0.40

Fischer FBN II static load anchor diameter 6 mm 100 pieces 00505527

The minimum purchase order quantity for the product is 100.

€0.40
Tax included
Items Available: 400
Further availability of the manufacturer

Fischer FBN II static load anchor diameter 6 mm 100 pieces 00505527

€0.40

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The expansion anchor, is a steel anchor for non-cracked concrete. Its long thread and two anchorage depths make FBN II particularly flexible. In addition to pre-positioning and through installation, this expansion anchor is also suitable for spaced installation.



Advantages:

  • Specifically designed for applications in dry, unpolluted environments
  • High tensile performance in non-cracked concrete allows fewer attachment points and consequently smaller plate sizes
  • Long threading allows fastening of objects of various thicknesses and permits possible spaced installation, also allowing off-plumb adjustments
  • Remarkably simple through installation is very fast due to the few hammer blows and reduced number of wrench turns required by the anchor to achieve the required torque
  • The end of the anchor protects the thread from damage, ensuring faster installation (and eventual removal) of the object to be fastened
  • FBN II achieves maximum load capacity with a standard anchor depth. This reduces the number of fastening points needed and allows smaller plates to be used
  • Few hammer blows and a very low number of turns to torque ensure easy assembly
  • The shaped end protects the thread from damage. and thus ensures faster installation and removal of the object to be fastened



Assembly:

  • Drill through the substrate using a suitable concrete drill bit, observing the diameter prescribed in Technical data for the size of the dowel to be installed
  • In the case of holes drilled by rotopercussion, clean the hole itself by blowing (use the ABG pump or alternatively the AB-K bellows)
  • In the case of holes drilled with FHD drills (simultaneously performs both drilling and cleaning the hole), no cleaning is necessary
  • Tap the dowel deep with a hammer until the washer hits the object to be fastened
  • For series installations, the use of the FABS striker is recommended
  • Apply the tightening torque prescribed in Technical data by using a torque wrench
  • When the tightening torque is applied, the tapered end of the anchor is drawn into the clamp, which expands against the hole wall
  • FBN II is also suitable for spaced installation due to the long thread that allows the use of a nut/locknut (not included) to adjust the distance from the support. To bring the dowel into torque, apply tightening to the support through the washer and nut provided

There are no reviews

Data sheet

Diameter:
6mm
Type:
Dowels
Installation:
Concrete
