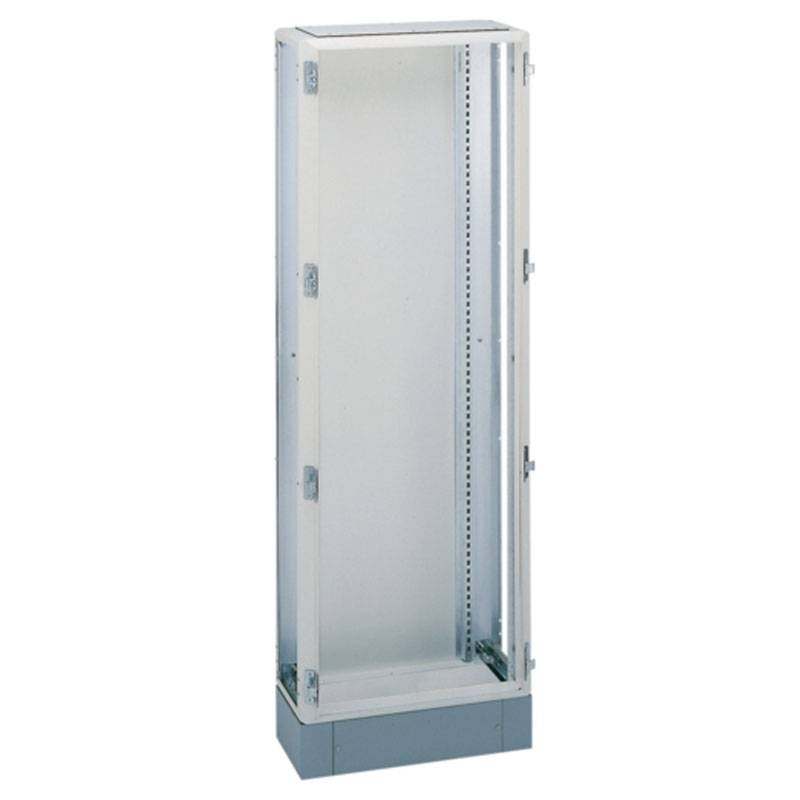

Hager Floor Panel for Quadro 5 IP55 H1860 L685 P260 FM208
HAG FM208
3250612632084
Hager floor-standing switchboard for Quadro 5 series with the following features:
- Rated current: 630 amps
- Quantity of rows in the enclosure: 12
- Quantity of the section in width: 2
- Number of flanged sides: 2
- Removable
- Degree of protection of the enclosure: IP55
- Fire resistance
Hager Floor Panel for Quadro 5 IP55 H1860 L685 P260 FM208
€788.31
€788.31
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1
Frequently bought together
Hager quadro 5 IP55 switchboards and enclosures allow the installation of modular equipment and molded case circuit breakers up to 630A in all civil and tertiary environments. The range includes one-piece, modular, side-by-side and stackable switchboards and enclosures from 72 to 432 DIN modules composed of one-piece structure with open sides , closed back, cable entry plates, plinth (cabinets) to be completed with side panels and blind or transparent doors color RAL 9010. Main advantages are complete accessibility on all 4 sides, cabinets with double depth 260 and 400mm, built-in or side-by-side cable/bar compartment, real use up to 630A thanks to 400mm deep cabinets, easy and quick assembly, single kit internal system for all series, elegant and personal design. Use is suitable for short-circuit currents up to 35kA.
Features:
- Mounting mode: Pedestal (underground mounting)
- Cover type: Blind door
- Lock with key
- Color: White
- Material: Steel
- Surface treatment: powder coated
- Suitable for outdoor use: No
- Mounting plate included: no
- With lock: yes
- Depth: 260 mm
- Height: 1860 mm
- Width: 700 mm
- Width in units of division: 24
- Thickness of side wall material: 2 mm
There are no reviews
Data sheet
- Type:
- Switchboards
- Degree of protection:
- IP55
- Model:
- Without door
- Installation:
- Floor
- Amps:
- 630A
