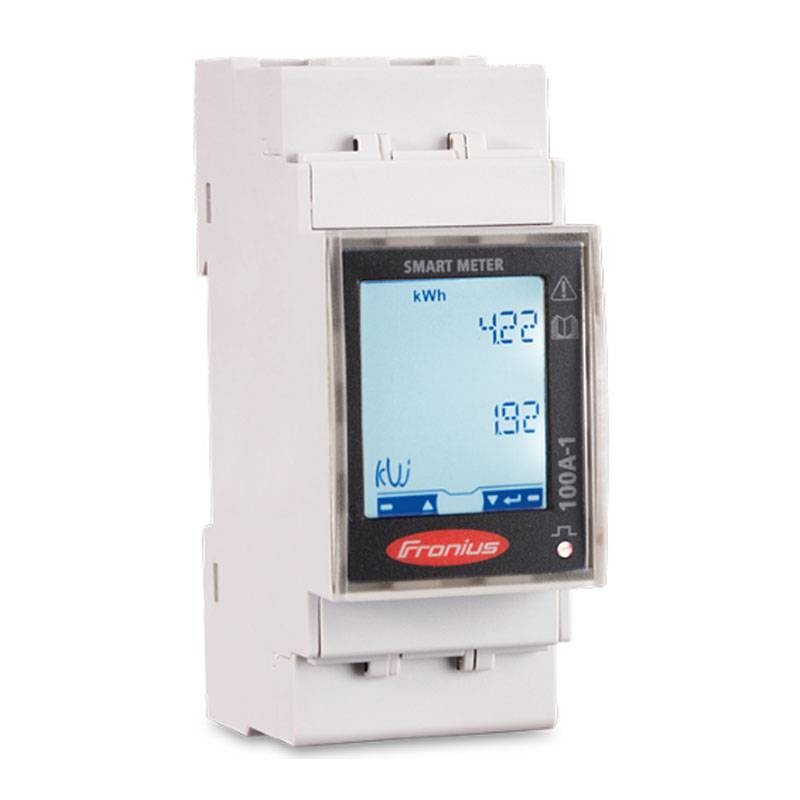

Fronius Smart Meter TS 100A-1 42.0411.0344

Fronius
FRO 42.0411.0344 9000012468233

Fronius Smart Meter, model TS 100A-1 bidirectional meter for detecting household current consumption:


  • Rated voltage 230V
  • Max. current 100 amps
  • Section of current path connections 1-25mm²
  • Cross section of communication and neutral conductor connections 0.05mm²
  • Self-consumption 1 Watt
  • Starting current 40 mA
  • Accuracy class 1
  • Overload (for short time) 3000A@10ms
  • Working range -25 bis +65°C
Do you have questions about this product or did you not find what you were looking for? Ask us!

Fronius Smart Meter TS 100A-1 42.0411.0344

€99.50
€99.50

Fronius Smart Meter TS 100A-1 42.0411.0344

€99.50
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Fronius Smart Meter TS 100A-1 42.0411.0344

€99.50

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Overview:

Fronius Smart Meter is a bidirectional meter that optimizes self-consumption, senses the load curve of the household grid, and controls various energy flows. In the presence of power constraints, the high measurement accuracy and fast communication of the Modbus RTU interface enable faster and more accurate dynamic adjustment of fed energy than S0 meters.


Together with Fronius Solar.web, Fronius Smart Meter enables clear and concise display of self-consumption of power. In Fronius storage solutions, Fronius Smart Meter ensures perfectly harmonized management of various energy flows, thus optimizing the entire energy management. Fronius Smart Meter is perfect for use with Fronius GEN24 Plus inverters and all Fronius inverters equipped with Fronius Datamanager 2.0.


Features:

  • Dimensions/width 35.8 mm - Dimensions (height) 91.5 mm - Dimensions (depth) 63 mm
  • Weight 0.16 kg

There are no reviews

Data sheet

Type:
Energy Meters
