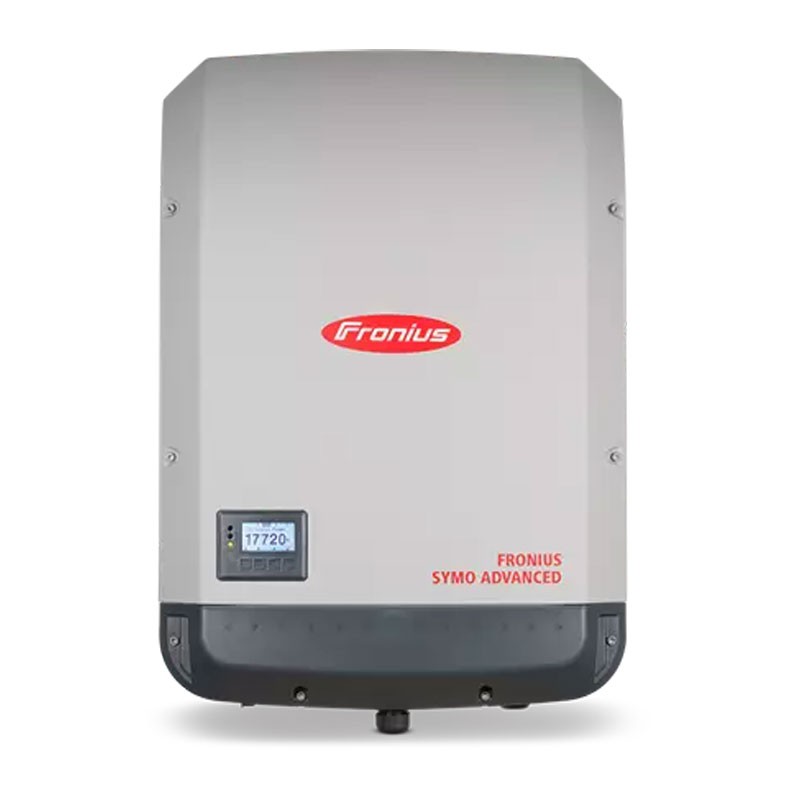

Fronius Symo Advanced Photovoltaic Inverter 12.5kW 3-M 2 MPP 4,210,160

Fronius
FRO 4.210.160

Fronius Symo Advanced photovoltaic inverter:



  • Rated output power 12.5kW
  • Number of MPPT trackers 2
  • Max. input current 27.0 / 16.5 A
  • Number of DC connections 3-3
  • Grid connection 3~NPE 400/230, 3~NPE380/220V
Do you have questions about this product or did you not find what you were looking for? Ask us!

Fronius Symo Advanced Photovoltaic Inverter 12.5kW 3-M 2 MPP 4,210,160

€2,575.15
€2,575.15

Fronius Symo Advanced Photovoltaic Inverter 12.5kW 3-M 2 MPP 4,210,160

€2,575.15
Tax included
Items Available: 1
Further availability of the manufacturer

Fronius Symo Advanced Photovoltaic Inverter 12.5kW 3-M 2 MPP 4,210,160

€2,575.15

Buy it within and receive it from Friday, 15 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Characteristics:




Input data:

  • Number of MPPT trackers 2
  • Max. input current (Idc max) 27.0 / 16.5 A
  • Max. short-circuit current solar module range 55.7 / 34.0 A
  • DC input voltage range (Udc min - Udc max) 200 - 1000 V
  • Supply start voltage (Udc start) 200 V
  • Nominal input voltage (Udc,r) 600 V
  • MPP voltage range (Umpp min - Umpp max) 320 - 800 V
  • Usable MPP voltage range 200 - 800
  • Number of DC connections 3 + 3
  • Max. output power of PV generator (Pdc max) 18.8 kWpeak



Output data:

  • Rated AC power (Pac,r) 12.5 kW
  • Max. output power (Pac max) 12.5 kVA
  • AC output current. (Iac nom) 18 A
  • Grid connection (Uac,r) 3~NPE 400/230, 3~NPE380/220 V
  • AC voltage range (Umin - Umax) 150 - 280 V
  • Frequency (fr) 50 / 60 Hz
  • Frequency range (fmin - fmax) 45 - 65 Hz
  • Distortion factor <3% @Pnom (230/400VAC 50Hz)
  • Power factor (cos ?ac,r) 0 - 1 ind,/cap



General data:

  • Dimensions/width 510 mm
  • Dimensions (height) 725 mm
  • Dimensions (depth) 225 mm
  • Weight 32 kg
  • Weight with packaging 38.4 kg
  • Protection class IP 66
  • Safety class 1
  • Overvoltage category (DC/AC) 2 / 3
  • Nighttime consumption <1W
  • Cooling Regulated ventilation
  • Mounting Indoor and outdoor
  • Ambient temperature range -25°C - +60°C
  • Allowable air humidity 0 - 100 %
  • Max. height above sea level 2,000 m / 3,400 m
  • DC connection technology 6 DC+ screw terminals and 6 DC- screw terminals 2.5-16 mm²
  • AC connection technology 5-pole AC screw terminals 2.5-16 mm²
  • Certifications and regulatory compliance IEC 62109-1/-2, IEC 62116, IEC 61727, VDE 0126-1-1/A1, VDE AR-N 4105, G98/1, G99/1, AS/NZS 4777.2, UNE 206007-1, IEC 0-21, IEC 0-16, NRS 097-2-1, TOR Erzeuger Typ A, EN 50549-1/-2, IEC 61683, IEC60068



Efficiency grade:

  • Max. efficiency grade (PV - mains) 97.8 %.
  • European (?EU) efficiency grade 96.0 / 97.4 / 96.7 %
  • with 5% Pac,r 90.6 / 93.0 / 89.6%
  • with 10% Pac,r 93.8 / 95.5 / 93.8%
  • with 20% Pac,r 95.5 / 97.1 / 96.0%
  • with 25% Pac,r 95.9 / 97.3 / 96.5%
  • with 30% Pac,r 96.2 / 97.5 / 96.8%
  • with 50% Pac,r 96.5 / 97.7 / 97.3%
  • with 75% Pac,r 96.4 / 97.8 / 97.4%
  • with 100% Pac,r 96.5 / 97.7 / 97.5%
  • Degree of efficiency of MPP adaptation >99.9%



Protection devices:

  • DC insulation measurement Yes
  • Overload behavior Working point shifting, power limitation
  • DC disconnect switch Yes
  • DC Reverse polarity protection Yes
  • Arc detection - AFCI (Fronius Arc Guard) Yes



Interfaces:

  • WLAN/Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
  • 6 inputs and 4 digital inputs/outputs Connection to centralized control signal receiver, energy management
  • USB (type A connector)
  • Datalogging, inverter update via USB flash drive
  • 2 RS422 (RJ45 connector) Fronius Solar Net
  • Signal output Energy management (potential-free relay output)
  • Datalogger and Web server Integrated
  • External input Connection to S0 meter/overvoltage protection analysis
  • RS485 Modbus RTU SunSpec or connection to the meter

There are no reviews

Data sheet

Type:
Inverter
Power:
11 to 15KW
MPPT:
2
Connection:
Three-phase
