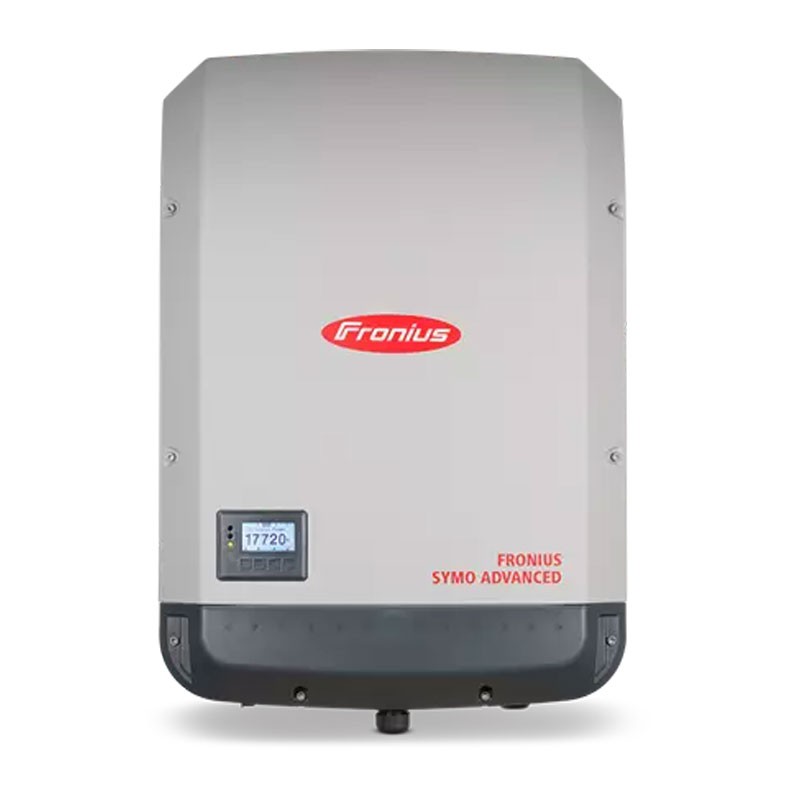

Fronius Symo Advanced Photovoltaic Inverter 20.0kW 3-M 2 MPP 4,210,163
FRO 4.210.163
Fronius Symo Advanced photovoltaic inverter:
- Rated output power20 kW
- Number of MPPT trackers 2
- Max. input current 33.0 / 27.0 A
- Number of DC connections 3-3
- Grid connection 3~NPE 400/230, 3~NPE380/220 V
Fronius Symo Advanced Photovoltaic Inverter 20.0kW 3-M 2 MPP 4,210,163
€2,891.65
€2,891.65
Tax included
Tax included
Items Available: 9
: 3
Characteristics:
Input data:
- Number of MPP trackers 2
- Max. input current (Idc max) 33.0 / 27.0 A
- Max. short-circuit current range of solar modules 68.0 / 55.7 A
- DC input voltage range (Udc min - Udc max) 200 - 1000 V
- Supply start voltage (Udc start) 200 V
- Nominal input voltage (Udc,r) 600 V
- MPP voltage range (Umpp min - Umpp max) 420 - 800 V
- Usable MPP voltage range 200 - 800 V
- Number of DC connections 3 + 3
- Max. power of PV generator (Pdc max) 30 kWpeak
Output data:
- Nominal AC power (Pac,r) 20 kW
- Max. output power (Pac max) 20 kVA
- AC output current. (Iac nom) 28.9 A
- Grid connection (Uac,r) 3~NPE 400/230, 3~NPE 380/220 V
- AC voltage range (Umin - Umax) 150 - 280 V
- Frequency (fr) 50 / 60 Hz
- Frequency range (fmin - fmax) 45 - 65 Hz
- Distortion factor <3% @Pnom (230/400VAC 50Hz)
- Power factor (cos ?ac,r) 0 - 1 ind,/cap
General data:
- Dimensions/width 510 mm
- Dimensions (height) 725 mm
- Dimensions (depth) 225 mm
- Weight 39.8 kg
- Weight with packaging 46.2 kg
- Protection class IP 66
- Safety class 1
- Overvoltage category (DC/AC) 2 / 3
- Nighttime consumption <1 W
- Cooling Regulated ventilation
- Mounting Indoor and outdoor
- Ambient temperature range -25°C - +60°C
- Allowable air humidity 0 - 100 %
- Max. height above sea level 2,000 m / 3,400 m
- DC connection technology 6 DC+ screw terminals and 6 DC- screw terminals 2.5-16 mm²
- AC connection technology 5-pole AC screw terminals 2.5-16 mm²
- Certifications and regulatory compliance IEC 62109-1/-2, IEC 62116, IEC 61727, VDE 0126-1-1/A1, VDE AR-N 4105, G98/1, G99/1, AS/NZS 4777.2, UNE 206007-1, IEC 0-21, IEC 0-16, NRS 097-2-1, TOR Erzeuger Typ A, VDE AR-N 4110, EN 50549-1/-2, IEC 61683, IEC60068
Efficiency grade:
- Max. efficiency grade (PV - mains) 97.8 %.
- European (?EU) efficiency grade 96.7 / 97.6 / 97.2%
- with 5% Pac,r 93.6 / 95.5 / 82.5%
- with 10% Pac,r 95.5 / 96.7 / 95.6%
- with 20% Pac,r 96.6 / 97.6 / 97.0%
- with 25% Pac,r 96.8 / 97.7 / 97.2%
- with 30% Pac,r 96.9 / 97.7 / 97.2%
- with 50% Pac,r 96.9 / 97.8 / 97.3%
- with 75% Pac,r 96.8 / 97.8 / 97.5%
- with 100% Pac,r 96.7 / 97.7 / 97.4%
- Degree of efficiency of MPP adaptation >99.9%
Protection devices:
- DC insulation measurement Yes
- Overload behavior Working point shifting, power limitation
- DC disconnect switch Yes
- DC Reverse polarity protection Yes
- Arc detection - AFCI (Fronius Arc Guard) Yes
Interfaces:
- WLAN/Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
- 6 inputs and 4 digital inputs/outputs Connection to centralized control signal receiver, energy management
- USB (type A connector)
- Datalogging, inverter update via USB flash drive
- 2 RS422 (RJ45 connector)
- Fronius Solar Net
- Signal output
- Energy management (potential-free relay output)
- Datalogger and Web server Integrated
- External input
- Connection to S0 meter/Surge protection analysis
- RS485 Modbus RTU SunSpec or connection to the meter
There are no reviews
Data sheet
- Type:
- Inverter
- Power:
- 20 to 30KW
- MPPT:
- 2
- Connection:
- Three-phase
