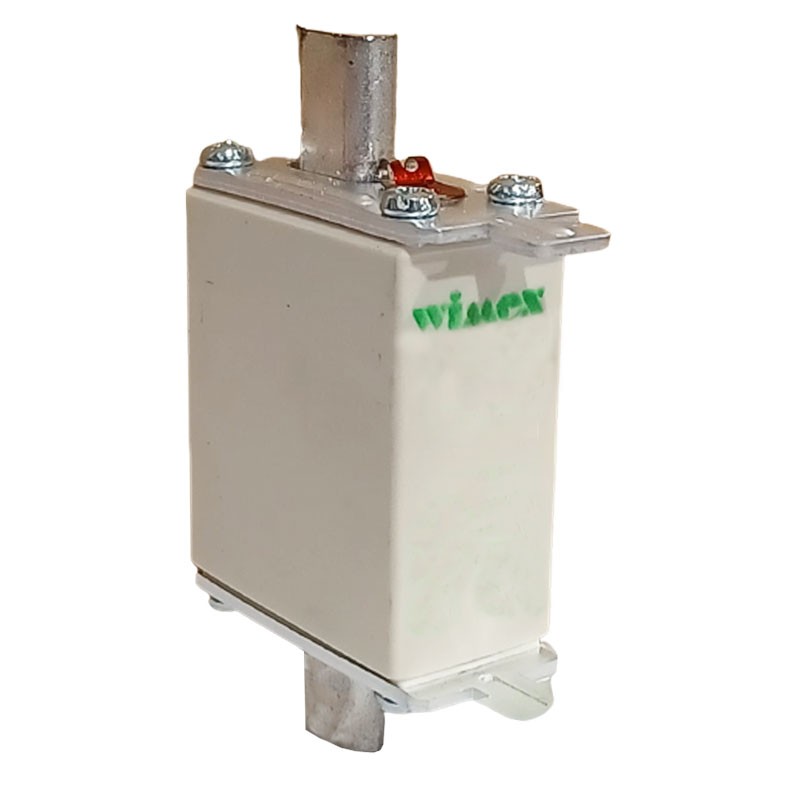

Wimex NH aM Standard low-dissipation fuse 80A 5505080
WIM 5505080
Wimex NH aM Standard low-dissipation fuse, 80 amperes, 690V, 100KA.
NH fuses with operating class aM are used especially for motor protection, and unlike the gG types, are capable of interrupting only currents between a certain value of overcurrent and that corresponding to its interrupting power value.
Wimex NH aM Standard low-dissipation fuse 80A 5505080
€4.82
€4.82
Tax included
Tax included
Items Available: 6
: 2
NH fuses with operating class aM are used especially for motor protection, and unlike gG types, they are capable of interrupting only currents between a certain value of overcurrent and that corresponding to its interrupting power value.
This feature is essential when high inrush currents are involved. However, the use of additional protective devices (e.g., thermal overload relays) in back-up is recommended for the protection of overcurrents below Kln. Special solutions adopted on NH aM fuse strips allow high resistance against aging caused by motor heating processes.
There are no reviews
Data sheet
- Type: Blade fuses
- Voltage: 690V
- Breaking capacity: 100KA
- Amps: 80A
- Material: Steatite
