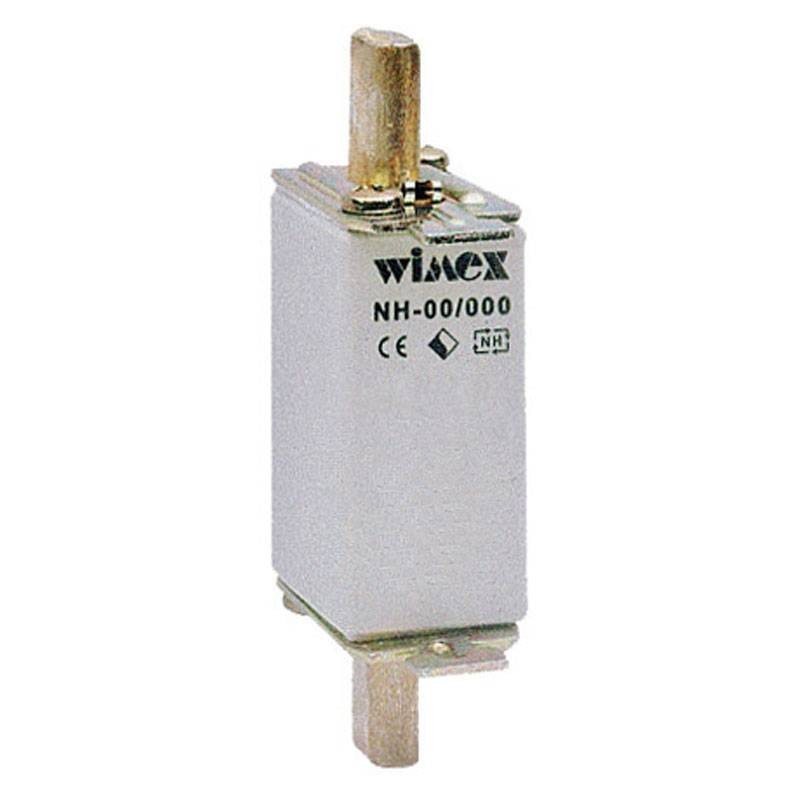

Wimex NH Blade Fuse NH000 100A 500V AC curve gG 5500081
WIM 5500081
8025241120111
Wimex NH000 Blade fuse with the following characteristics:
- Rated current: 100A
- Rated voltage: 500V AC
- Interrupting capacity: 120 KA
- Interrupting characteristic: Delayed
- Interrupting range: GG
- Material: Steatite Insulator Silver-plated Copper Conductor
NH fuses, are suitable for overload and short-circuit protection of lines, motors, transformers and for industrial applications.
Wimex NH Blade Fuse NH000 100A 500V AC curve gG 5500081
€3.89
€3.89
Tax included
Tax included
Items Available: 45
: 10
NH industrial fuses of type gG are normally used to protect cables, power lines and equipment against overloads and short circuits. NH Kombi fuses are equipped with a double tripping-to signal device, one of which is placed in the middle part of the fuse, while the other is placed in the upper part. The latter device can be associated with a microswitch to achieve remote signaling of tripping. NH/I fuses provide additional protection from accidental contacts because they are made by placing insulating plastic plates near the blades of the fuse.
There are no reviews
Data sheet
- Type: Blade fuses
- Voltage: 500VAC
- Breaking capacity: 120KA
- Amps: 100A
- Material: Steatite
