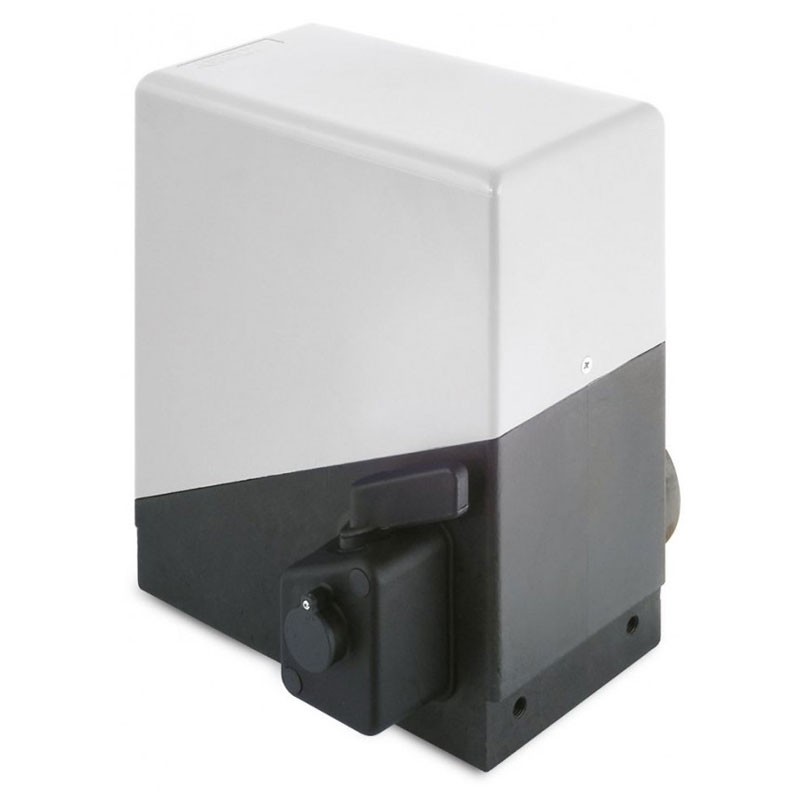

Gibidi PASS 2500E sliding gate 380V three-phase 939025AN
GIB 939025AN
Gibidi PASS 2500E sliding gate, irreversible electromechanical 380V three-phase for large and heavy (up to 2,500 kg) sliding gates suitable for intensive use.
Without equipment, with limit switch card and encoder.
Gibidi PASS 2500E sliding gate 380V three-phase 939025AN
€793.17
€793.17
Tax included
Tax included
Items Available: 2
: 1
Frequently bought together
Advantages:
- Easy to install: Control unit in optimal position for the installer. Encoder technology for self-learning of parameters. Possibility of adjustments on the horizontal and vertical axis.

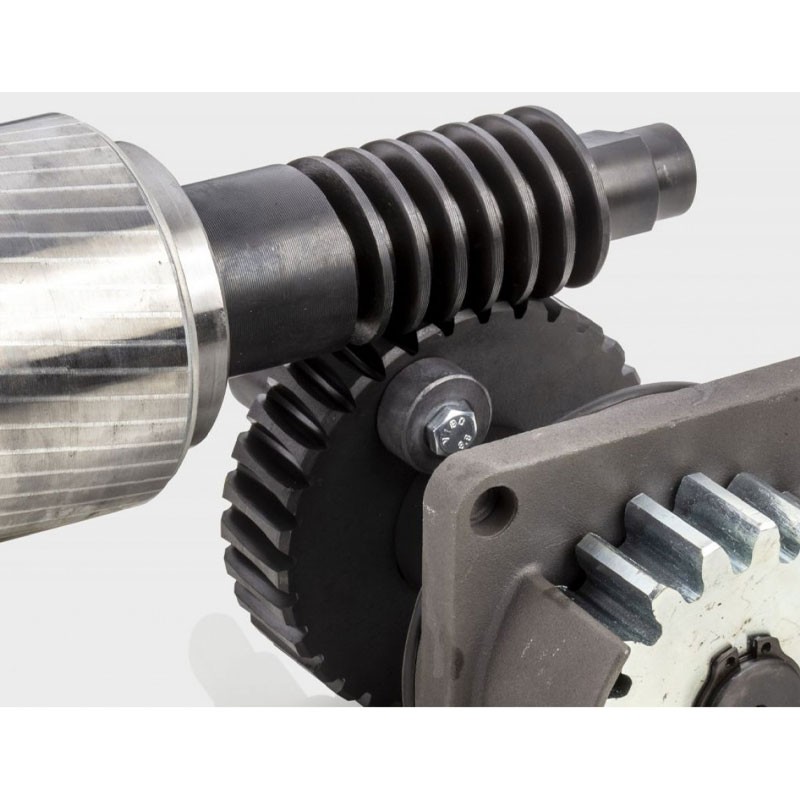

- Quiet and robust: Made with large gears made of heat-treated steel and in complete dolio bath (1 Kg Oil). Painted aluminum body that also ensures reliability over time

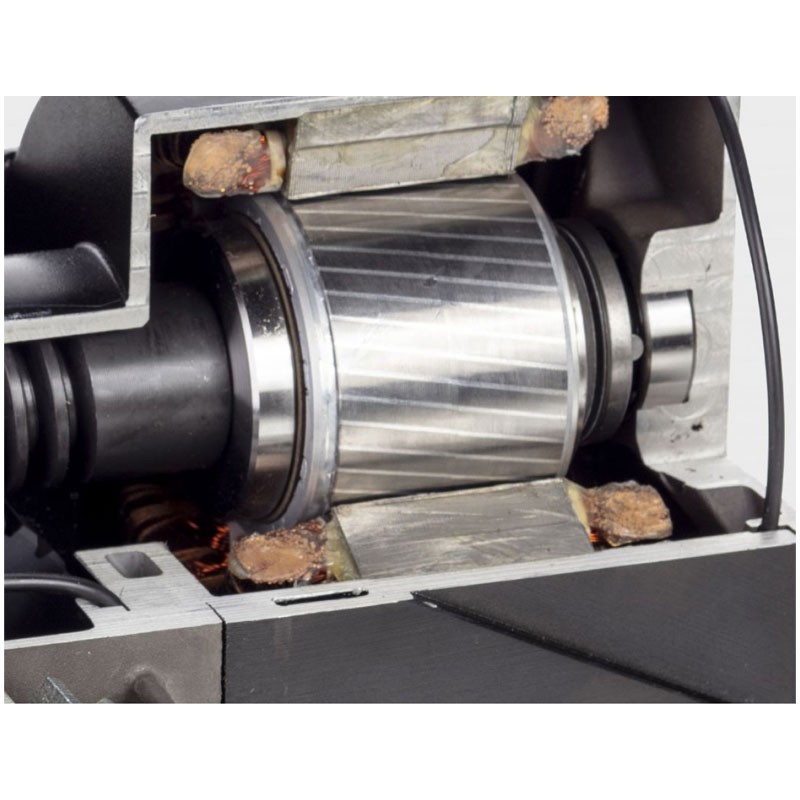

- Performance: Special dolio-bath motors for excellent performance even with heavy use, versions with mechanical bi-disc clutch. New irreversible and anti-slip gearboxes
- Technological and safe: Built-in control unit equipped with all inputs for safeties, Built-in encoder for easy programming and anti-crushing sensitivity adjustment. The highest level of safety, as required by EN 12453

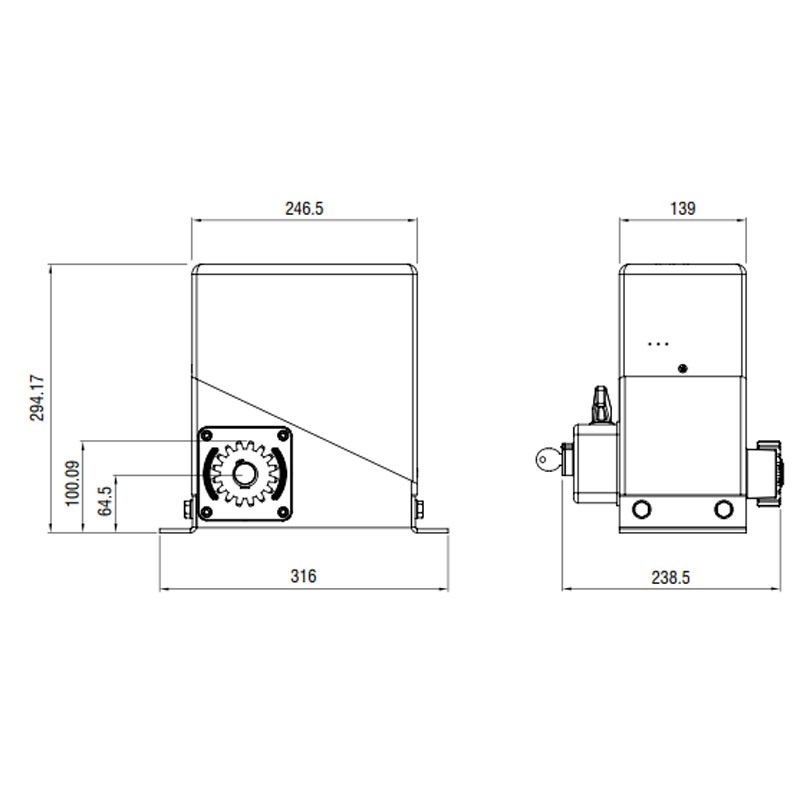

- Design: The most compact in its class thanks to the direct-drive horizontal motor, only 14 cm thick

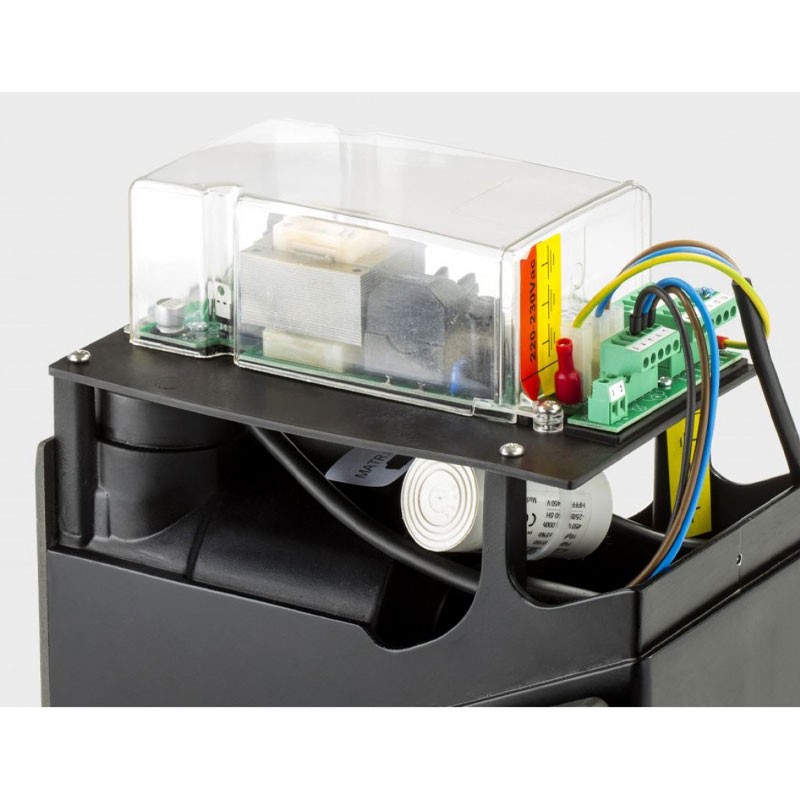

- Built-in control unit
- Mechanics made of treated steel and oil bath
- Unlocking device with treated steel balls
- Bi-disc clutch in oil bath
Features:
- Intensive use
- Frequency of use 70%.
- Motor power supply 380 Vac/Three phase
- Power consumption 750W
- Degree of protection IP55
- Speed 150 mm/s (9 m/min) - Z=16 M4
- Max torque 90 Nm
- Mechanical torque adjustment
- Max. leaf weight 2500 kg
- Not enabled for speed regulation
- Operating temperature -20°C +60°C
- Thermal protection 140°C
- GBD PH-02 oil lubrication (1 Kg)
- Operator weight 15 Kg
There are no reviews
Data sheet
- Type: Engines Gates
- Model: Sliding gate
