Gibidi PASS 841E 230V automatic sliding gate kit K8256LN/BFSLT

Gibidi
GIB K8256LN/BFSLT

The Gibidi PASS 841E K8256LN/BFSLT Sliding Gate Automation Kit is a complete solution for automating sliding gates up to 800 kg, ideal for residential and condominium settings. This kit offers reliability, safety and ease of use, ensuring smooth and quiet operation of the gate.

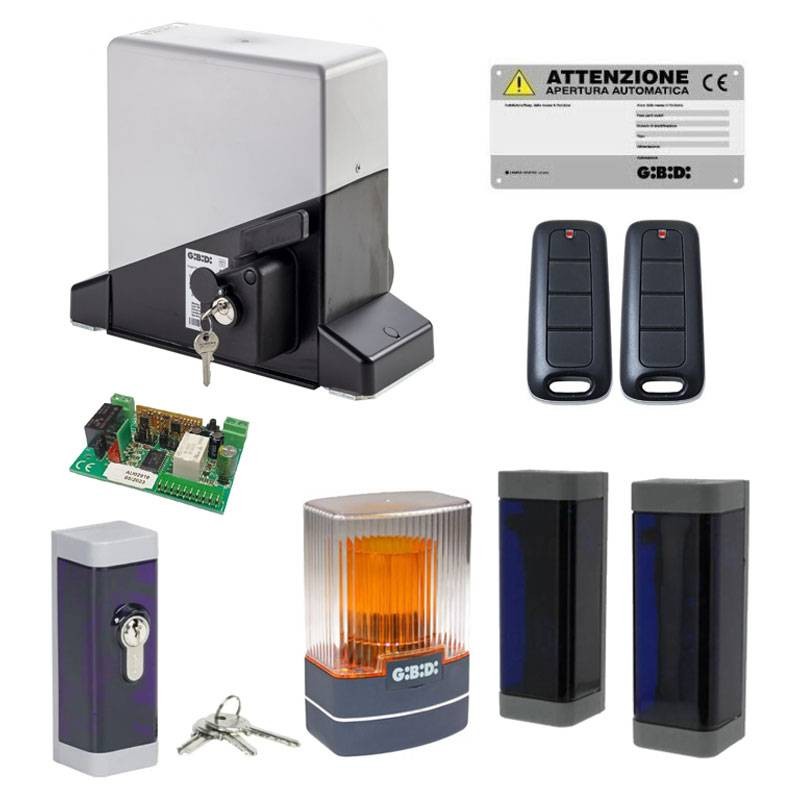

Kit contents:

  • 1 PASS 841E motor with SC230E slowdown, anti-crushing control unit

  • 1 Gibidi DRS4332 2-channel 433MHZ AU02910 plug-in receiver

  • 1 DSL70750 230 Vac complete flashing light.

  • 1 Gibidi DCS100 wall-mounted key switch AU01940

  • 1 Pair of Gibidi DCF180 180-degree synchronized photocells AU02250

  • 2 MAKO Rolling Code radio controls, 4 channels, 433 MHz frequency

  • 1 "Automatic Gate" plate

To be completed with Gibidi foundation plate for SL and Pass sliding motors AJ92190 not included in the Kit.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Gibidi PASS 841E 230V automatic sliding gate kit K8256LN/BFSLT

€417.24
€417.24

Gibidi PASS 841E 230V automatic sliding gate kit K8256LN/BFSLT

€417.24
Tax included
Items Available: 11
Further availability of the manufacturer

Gibidi PASS 841E 230V automatic sliding gate kit K8256LN/BFSLT

€417.24

Buy it within and receive it from Wednesday, 5 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Specifications of components in the Kit:

PASS 841E sliding motor with SC230E control unit:

  • EASY TO INSTALL: Control unit in optimal position for the installer. Possibility of adjustments on the Horizontal and Vertical Axis.

  • QUIET AND ROBUST: Made with generously sized gears, heat-treated and in complete dolio bath. Painted aluminum body that guarantees reliability over time

  • PERFORMANCEFUL: Special dolium-bath motors for excellent performance even with heavy use, versions with mechanical bi-disc clutch. New irreversible and anti-skid gear unit

  • TECHNOLOGY AND SAFE: Built-in control unit equipped with all inputs for safeties, Built-in encoder for easy programming and anti-crushing sensitivity adjustment. The highest level of safety as required by EN 12453.

  • DESIGN: The most compact in its class thanks to the direct horizontal motor, only 10 cm thick

Detailed technical specifications:

FeatureDetail
Intensive use Yes
Usage frequency 40%
Motor power supply 230 Vac - 50/60 Hz
Power consumption 400W
Degree of protection IP55
Speed 160 mm/s (9.6 m/min) - Z=16 M4
Max torque 24 Nm
Torque adjustment Mechanical / electronic
Speed adjustment Yes
Max sash weight 800Kg
Operating temperature -20°C +60°C
Thermal protection 140°C
Lubrication GBD oil PH-01
Operator weight 12 Kg


Gibidi DSL70750 flashing light for automatic gates 70750:

  • With 12/24/115/230V Power Supply

  • With unified LED board for different power supplies

Pair of Gibidi DCF180 180 degree synchronized photocells AU02250:

  • Synchronized photocells

  • 180 degree rotation

  • Power supply 12/24Vdc

  • Maximum range 30 meters

  • IP54 degree of protection

They are also equipped with the very interesting ANTINEVE function, which prevents the detection of very small objects that pass in front of the photocell quickly, such as birds, snowflakes or foliage, guaranteeing good operation in any environmental situation.
