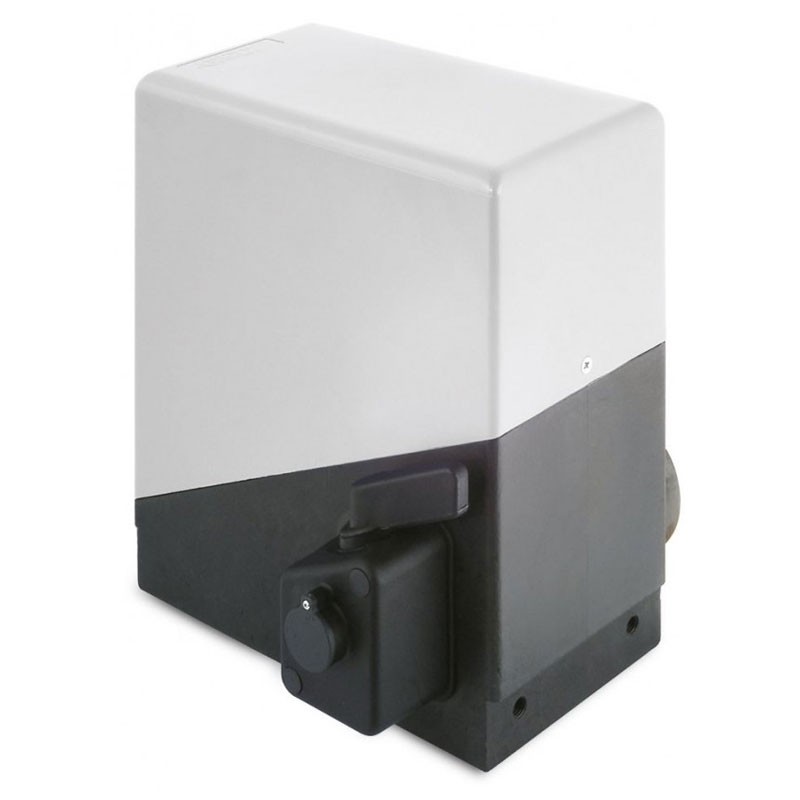

Gibidi PASS sliding gate 1241E 230V 939812A9L/N
GIB 939812A9L/N
Gibidi PASS 1241E sliding gate, irreversible electromechanical 230 Vac, with SC230E equipment, slowdown, anti-crushing, no mechanical clutch, suitable for intensive use, leaf weight up to 1200 kg.
Gibidi PASS sliding gate 1241E 230V 939812A9L/N
€750.95
€750.95
Tax included
Tax included
Items Available: 1
Frequently bought together
Advantages:
- Easy to install: Control unit in optimal position for the installer. Encoder technology for self-learning of parameters. Possibility of adjustments on the horizontal and vertical axis.
- Quiet and robust: Made with large gears made of heat-treated steel and in complete dolio bath (1 Kg Oil). Painted aluminum body that also ensures reliability over time
- Performance: Special dolio-bath motors for excellent performance even with heavy use, versions with mechanical bi-disc clutch. New irreversible and anti-slip gearboxes
- Technological and safe: Built-in control unit equipped with all inputs for safeties, Built-in encoder for easy programming and anti-crushing sensitivity adjustment. The highest level of safety, as required by EN 12453
- Design: The most compact in its class thanks to the direct-drive horizontal motor, only 14 cm thick
- Built-in control unit
- Mechanics made of treated steel and oil bath
- Unlocking device with treated steel balls
- Bi-disc clutch in oil bath
Features:
- Intensive use
- Frequency of use 90%.
- Motor power supply 230 Vac - 50/60 Hz
- Power consumption 700W
- Degree of protection IP55
- Speed 150 MM/S (9 M/MIN) - Z=16 M4
- Max torque 50 Nm
- Mechanical/electronic torque adjustment
- Speed adjustment
- Max. leaf weight 1,200 kg
- Operating temperature -20°C +60°C
- Thermal protection 140°C
- GBD PH-02 oil lubrication (1 Kg)
- Operator weight 15 Kg
There are no reviews
Data sheet
- Type:
- Engines Gates
- Model:
- Sliding gate
