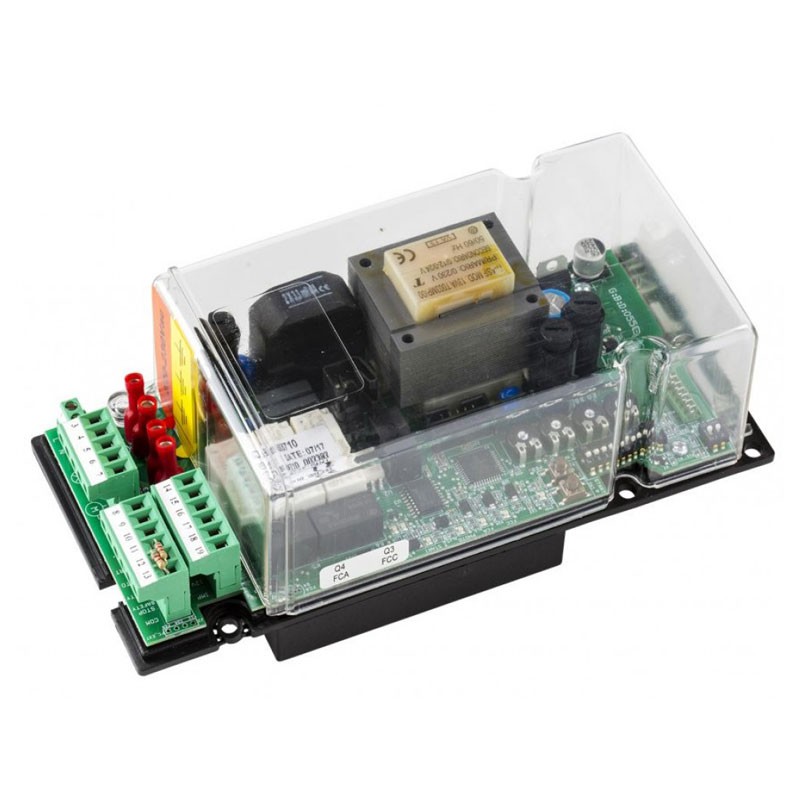

Gibidi SC230E electronic board for sliding gates 230Vac A90984P
GIB A90984P
Gibidi electronic board for automation of a sliding gate with 230Vac power supply compatible with PASS800-1200-1800 motors:
- Number of motors 1
- 230VAC power supply
- Flashing light 230VAC 40W Max
- Indicator lamp 24VAC 3W max
- Accessories power supply 24 VAC 8W max
- Plug-in radio receiver
- Operating temperature -20°C +60°C
- Sash length 25 meters max
Gibidi SC230E electronic board for sliding gates 230Vac A90984P
€157.71
€157.71
Tax included
Tax included
Items Available: 3
: 1
Frequently bought together
Technical features and functions:
- Red LEDs signaling N.C. contacts (photo, safety, fcc, fca, stop/safety)
- Green LEDs for signaling N.O. contacts (start and ped)
- Blue LEDs for signaling
- STARTand PED buttons on board
- Timed operation with limit switch or encoder operation with limit switch
- Total stroke learning via dedicated procedure
- Pedestrian opening adjustable via dedicated procedure
- Slowdown in opening and closing adjustable and excludable
- Soft start function that can be enabled
- Stop and reverse motion for 1 s after safety devices are tripped. At the next Start impulse the motion restarts in the direction of obstacle release
- Anti-crushing function via encoder, both in normal operation and in slowed down mode
- Safety test performed before opening and closing motion
- ENERGY SAVING terminal. Devices powered by this terminal will be powered only during the operation cycle.Connection to this power supply will allow the TESTof devices before motion
- 1 input for safety device selectable NC or 8K2
- 1 input selectable as safety device or STOP, selectable NC or 8K2
There are no reviews
Data sheet
- Type:
- Electronic Cards
