Gibidi swing gate kit TOP 291E EVO 230V K291E/BFSLT
GIB K291E/BFSLT

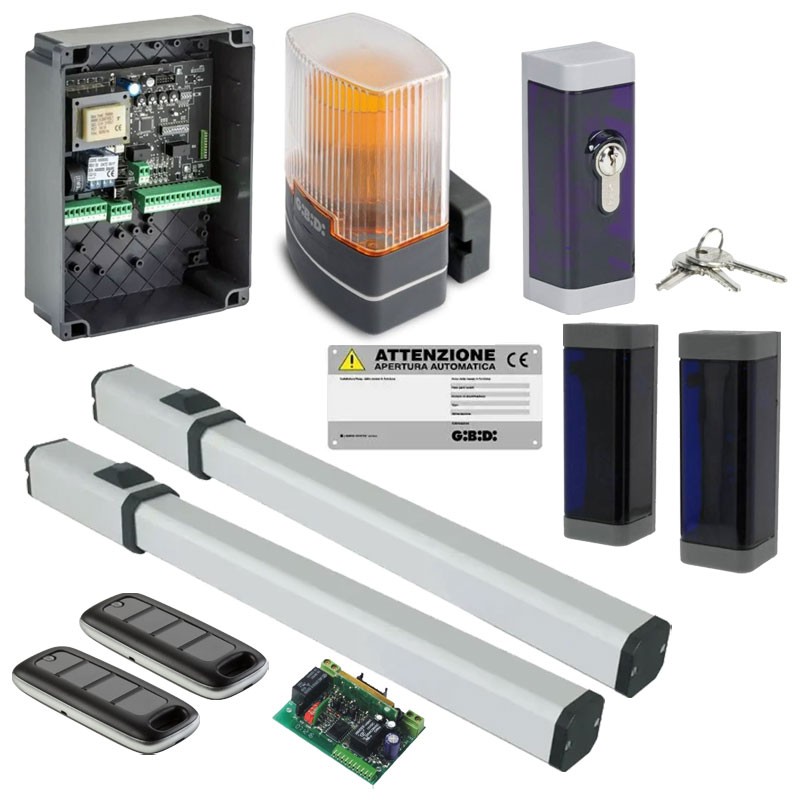

Gibidi TOP 291E EVO swing gate kits dedicated to medium and large size and weight swing gates, suitable for both residential and intensive use. The Kit consists of:

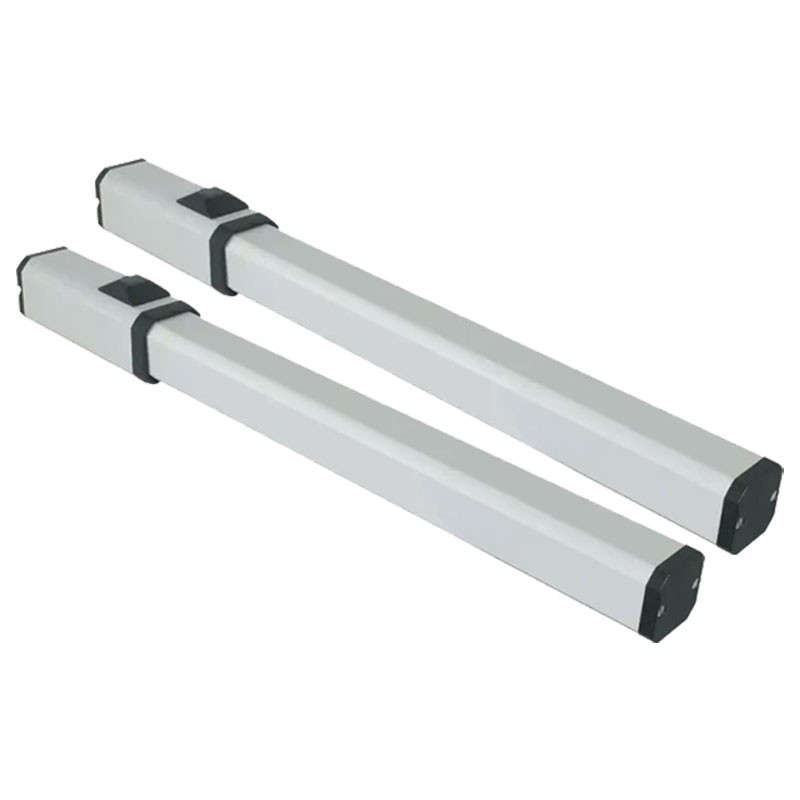

- 2 TOP EVO Operators For gates up to 3.5 m.
- 1 Gibidi F4 single-phase control unit AS06320

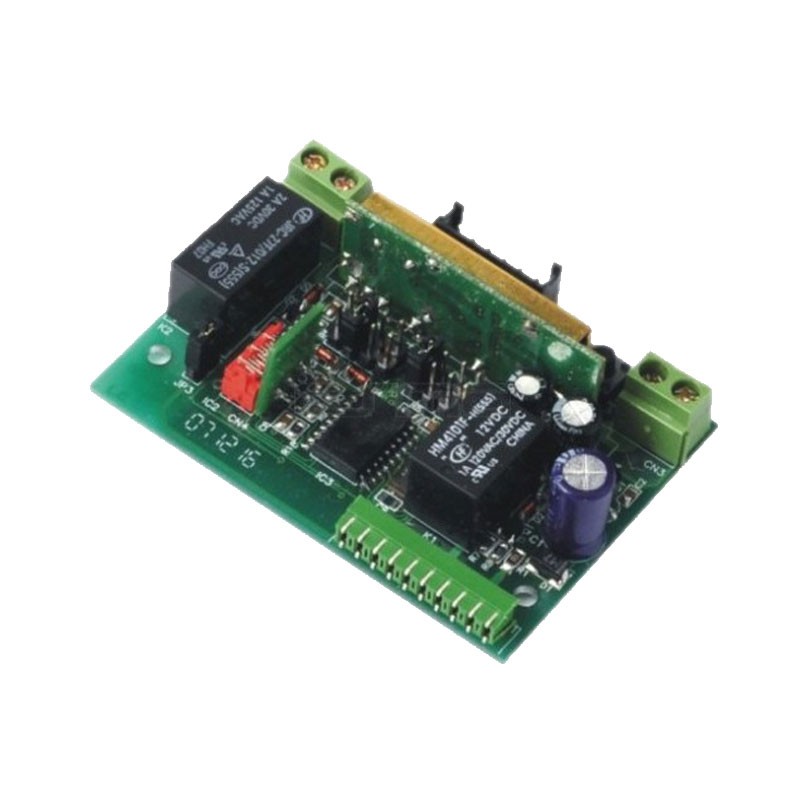

- 1 Gibidi DRS4332 2-channel 433MHZ plug-in receiver AU02910

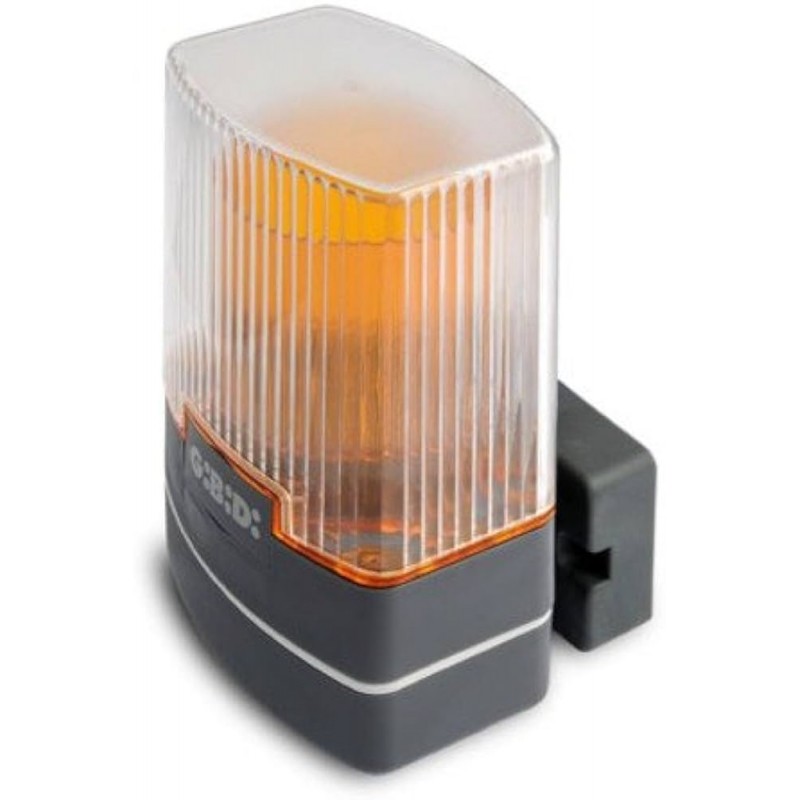

- 1 Complete flashing light DSL70710 230 Vdc 70710

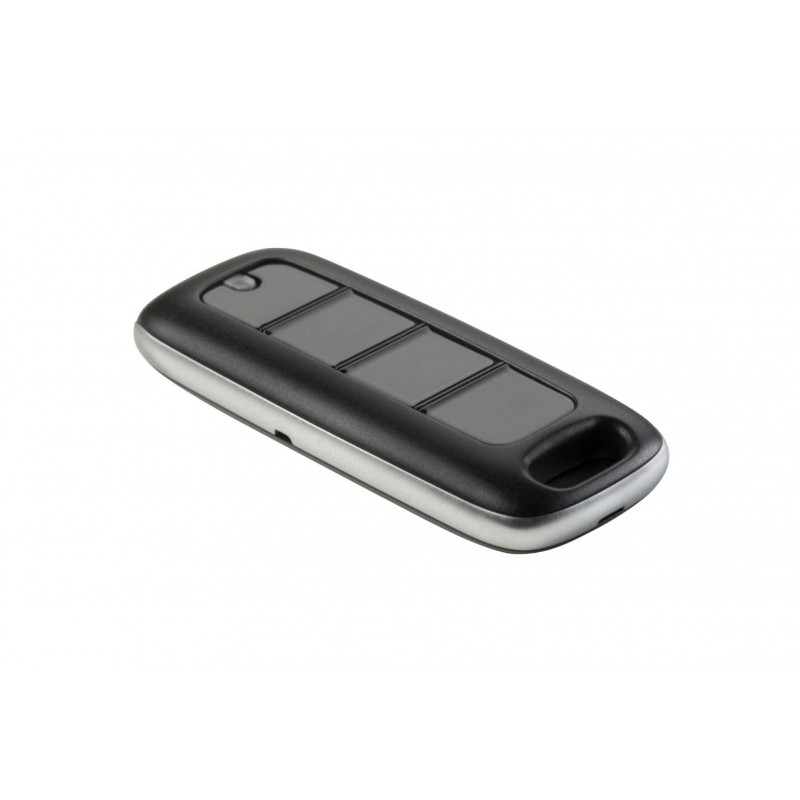

- 2 MAKO Rolling Code radio remote controls, 4 channels, frequency 433 MHz

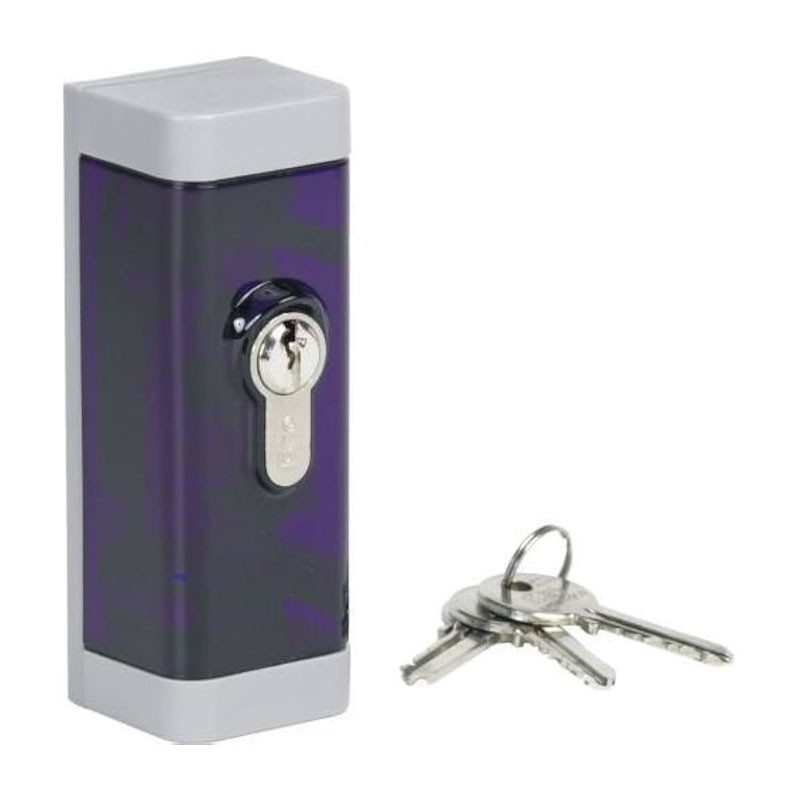

- 1 Wall-mounted key switch DCS100
- 1 Pair of photocells DCF180 AU02250
- 1 Automatic gate plate AJ75800
Gibidi swing gate kit TOP 291E EVO 230V K291E/BFSLT
€799.20
€799.20
Tax included
Tax included
Items Available: 5
: 2
Advantages:
- Easy to install: TOP EVO is already precharged and adjusted at the factory, ready to use, no bleed valve, no oil to top up. Mounting brackets included
- Quiet and fast: Extremely quiet and fast. Built-in limit switch slowdowns in the last 3 cm of travel
- Technological and safe: TOP EVO is built with unique technology, vacuum loading leaves no air residue inside, so no condensation and emulsion. The distributor pump coupling is without any gasket. A unique system intended to remain unchanged over time. New die-cast aluminum rear header. Complete with force regulators and also the new device for selecting reversible, irreversible or mixed mode
- Hydraulic slowdowns
- Reversible or irreversible mode selection
- Die-cast aluminum flange
- Force adjustment valves

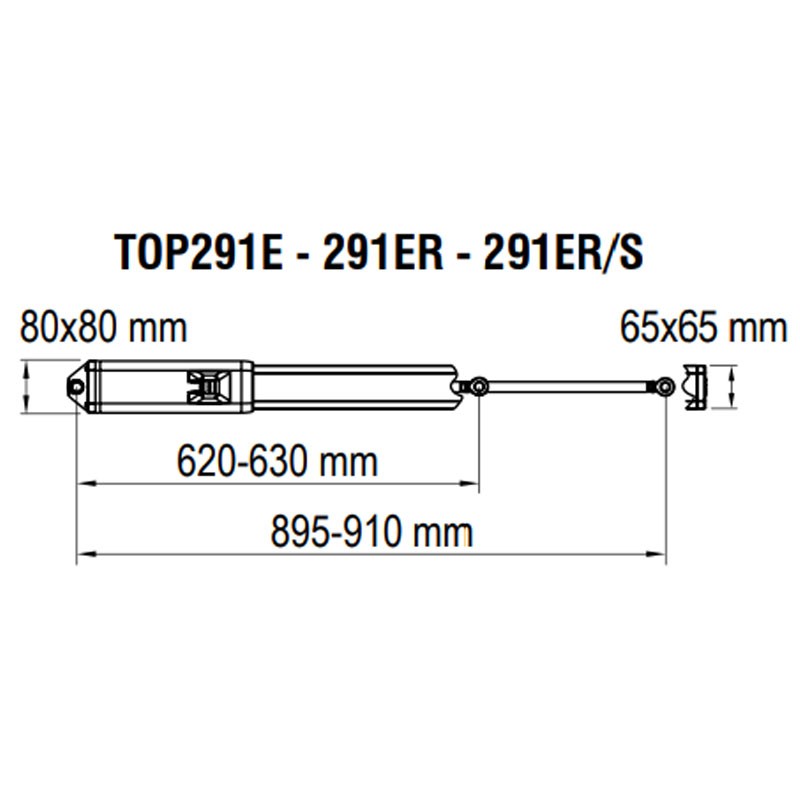

Features of TOP291E operators:
- Intensive use
- Frequency of use 55%.
- Motor power supply 230 Vac - 50/60 Hz
- Power consumption 170W
- IP65 degree of protection
- Stem speed 10 mm/s
- Max. stem stroke 265 mm
- Max. thrust force 3000 N
- Hydraulic force regulation
- Electronic speed regulation by special control equipment
- Hydraulic slowdowns
- Max. leaf length 3.5 meters
- Operating temperature -20°C +60°C
- Stem diameter 16 mm
- Lubrication Oil GBD PH-03
- Operator weight 7.7 kg
Kit parts specifications:

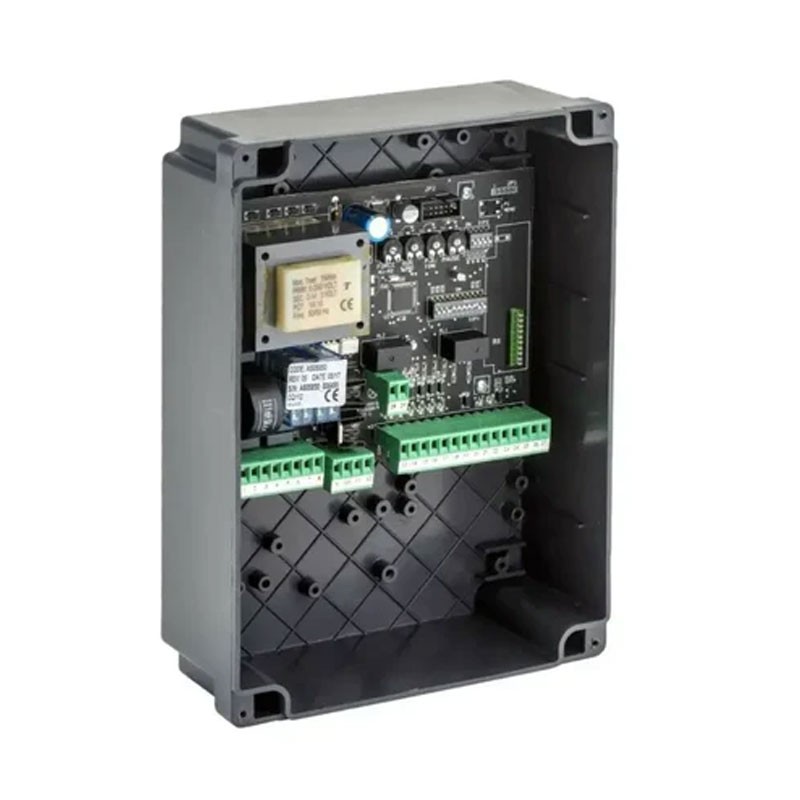

Gibidi F4 single-phase control unit AS06320 with enclosure included:
- Motors 1 or 2 at 230 Vac (max. 700W)
- 220-230 Vac power supply
- Force adjustment YES
- Slowdown YES
- Anti-crushing NO
- Safety device input YES
- Photocells input YES
- Limit switch-Encoder Limit switch
- Programming type Analog-learning times
- Electric lock YES
- Built-in radio receiver NO
- Degree of protection IP55

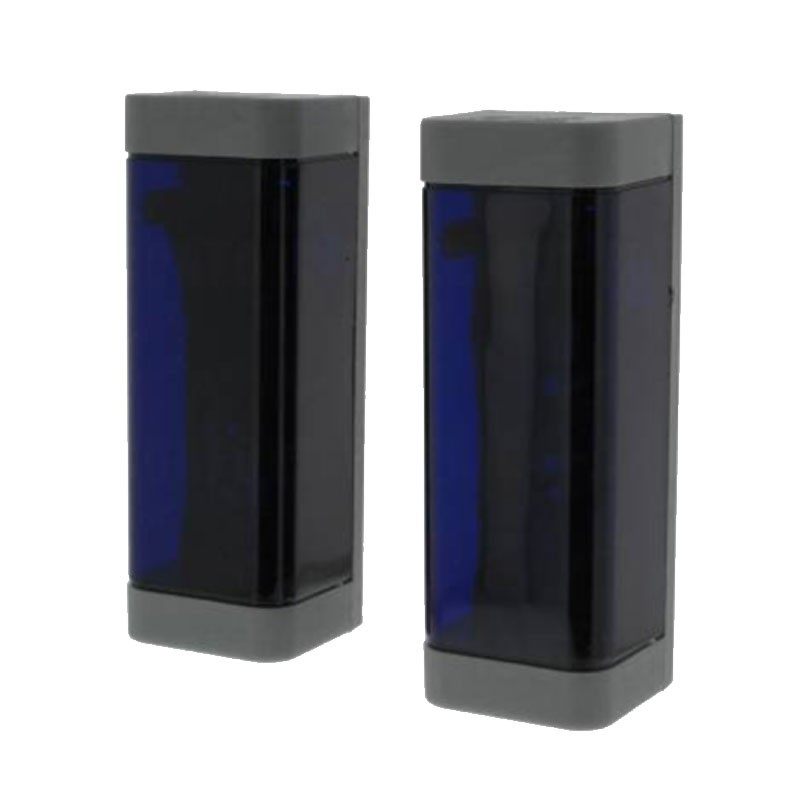

Pair of Gibidi DCF180 180-degree synchronized photocell AU02250:
- Synchronized photocells
- 180 degree rotation
- Power supply 12/24Vdc
- Maximum range 30 meters
- IP54 degree of protection
They are also equipped with the very interesting ANTINEVE function, which prevents the detection of very small objects that pass in front of the photocell quickly, such as birds, snowflakes or foliage, guaranteeing good operation in any environmental situation.
