Faac Double swing gate kit 230V 412 ECOKIT 105632445

Brand: Faac

Code: FAA 105632445 EAN: 8055195035612

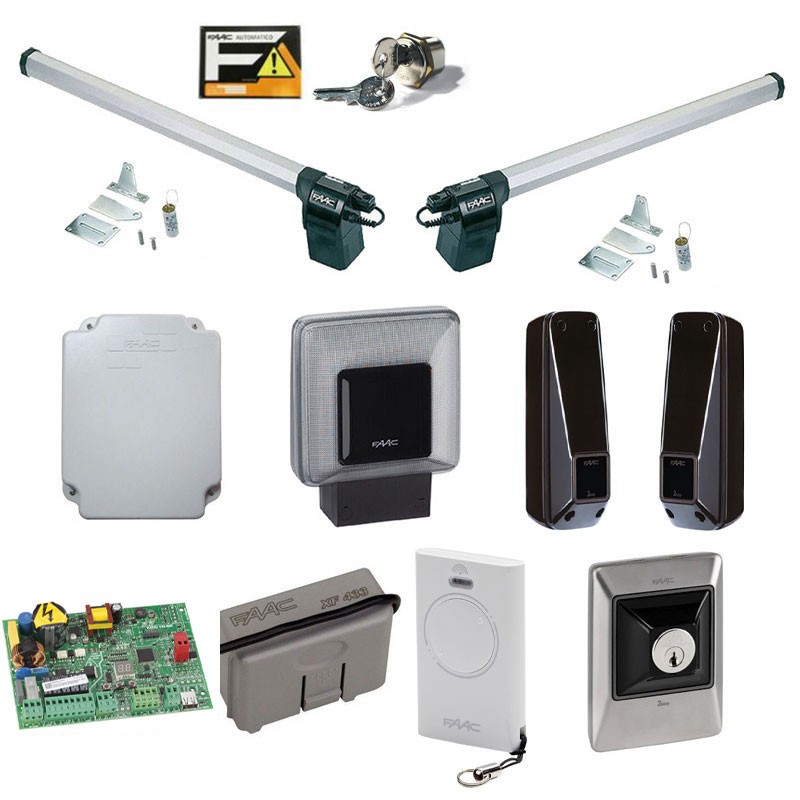

Faac Double Gate Kit 230V 412 ECOKIT consisting of:

2 pieces Actuator 412 right/left (104470/104471)
1 piece Electronic board E045 (790005)
1 piece E-model housing for circuit boards (720119)
1 piece XLED flasher (410029)
1 piece Pair of XP 20B D photocells (785103)
1 piece Key and control button XK10 B (401304)
1 piece Key lock (71275101)
1 piece Receiver XF 433 MHz (787831)
1 piece 2-channel transmitter XT2 433 SLH LR (787007)
1 piece "automatic FAAC" sign

Faac Double swing gate kit 230V 412 ECOKIT 105632445

€515.97

Faac Double swing gate kit 230V 412 ECOKIT 105632445

€515.97
Tax included

Items Available: 21

: 4

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Electromechanical automation for swing gates with a maximum width of 3.6 metres (1.80 metres per leaf) for residential use.

Technical specifications of kit components

1 piece Actuator 412 dx irreversible, does not require an electric lock - Reduced manoeuvring intensity applications - Simplified installation and maintenance - Accessible release device on the rear side of the actuator Mains power supply voltage: 230V~ 50 Hz Electric motor: Single-phase asynchronous Max power: 280 W Max thrust force 3500 N Max stem speed: 16 mm/s Stem stroke: 290 mm Max leaf opening angle: 110° Model: 412 dx Ambient operating temperature: -20°C ÷ + 55°C Thermal protection: 140°C Protection class: IP44 Weight: 6,5 Kg Fixing brackets: Weld/screw-on rear connection - Weld/screw-on front connection Dimensions (WxDxH): 1000 x 90 x 195 mm (104470)
1 piece Actuator 412 sx irreversible, does not require an electric lock - Reduced manoeuvring applications - Simplified installation and maintenance - Accessible release device on the rear side of the actuator Mains voltage: 230V~ 50 Hz Electric motor: Single-phase asynchronous Max. power: 280 W Max. thrust force 3500 N Max rod speed: 16 mm/s Rod travel: 290 mm Max leaf opening angle: 110° Model: 412 dx Ambient operating temperature: -20°C ÷ + 55°C Thermal protection: 140°C Protection class: IP44 Weight: 6,5 Kg Fixing brackets: Weld/screw-on rear connection - Weld/screw-on front connection Dimensions (WxDxH): 1000 x 90 x 195 mm (104471)
1 piece Electronic board E045: Mains power supply: Switching power supply 220/240V, frequency 50/60 Hz Max power: 4W Stand by W Max motor power: 800W Max accessory load: 500 mA 24V - 500 mA BUS 2easy Max electric lock load: FAAC lock (12V-24V ) Programming mode: LED display and buttons, via Simply Connect connectivity devices. Status indication: Display and LED
Inputs on terminal board: Open, Open pedestrian door, Stop (closed), BUS 2easy, Power supply + Earth. Terminal board outputs: Flashing light, Motor, 24V accessory power supply. Quick connector: XF 433/868 module for OmniDEC decoding, USB Protection fuses: 1 (2.5A) Ambient operating temperature: -20+55°C.
1 piece Enclosure mod. E for electronic boards Degree of protection: IP55 Type of installation: wall-mounted or flush-mounted Prearrangement for DIN rail mounting: Yes Fuse holder: Yes Prearrangement for door lock switch installation: Yes Opening: right or left (removable hinges) Seats for capacitor support: Yes Cover closure: With 4 self-tapping screws Hole plugs: Ø 29 (x2) Break-out holes: Ø 29 (x2) - Ø 19 (x2) Dimensions (WxDxH): 246 x 142 x 353 mm (720119)
1 piece XLED blinker (410029): Italian design suitable for every architectural context, Equipped with 40 LEDs to ensure visibility even in broad daylight, One version for 24VDC, 230VAC, 115VAC power supply. Thanks to its integrated antenna, XLED is compatible with both 433Mhz and 868 Mhz frequency receivers. Suitable for column or side mounting. Mains voltage 230 - 115 - 24 V, Protection class IP54, Ambient operating temperature -20°C to +55°C, Dimensions (WxDxH) 135 x 55 x 165 mm, Number of high-brightness LEDs 40.
1 piece Pair of XP 20B D photocells Supply voltage: BUS 2easy, 2 non-polarised wires 24V Max. photocell distance: 20 m Type of installation: wall-mounted Protection class: IP54 Self-alignment angle ± 7° (20 m) ± 13.5° (5 m) Horizontal orientation angle: -90° +90° Obstacle detection time: 20 ms Dimensions (WxDxH): 41.5 x 42.5 x 130 mm Absorbed current: Rx (10 mA) + Tx (10 mA) Operating ambient temperature: -20°C ÷ +55°C (785103)
1 piece Key and control button XK10 B wall or column mounted, 1 changeover microswitch, Contact rating 100 mA, Protection class IP54, Dimensions (WxDxH) 72 x 35 x 100 mm (401304)
1 piece Key lock (71275101)
1 piece Receiver XF 433 MHz Frequency module compatible with all FAAC equipment equipped with OmniDEC universal decoding system, recognisable by the dedicated logo. Model XF 433 (319006)
1 piece 2-channel XT2 transmitter Lithium battery power supply: 3Vdc (CR 2032) - Working frequency: 433.92MHz - Coding: 66 bit rolling code - Max. consumption: <20ma (787007)
1 piece "automatic FAAC" sign
