Faac electronic card remote control installation 790922


FAA 790922 8055195013191

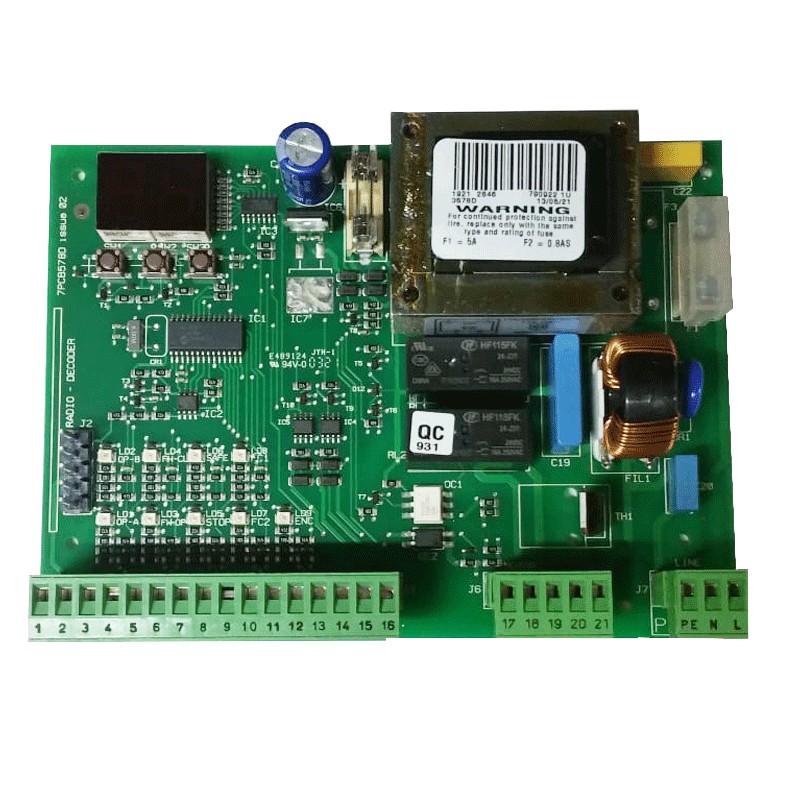

Faac 578D electronic board, remote installation for 230V gearmotor.

Installation in separate box

Replaces the old 844 MPS board

Do you have questions about this product or did you not find what you were looking for? Ask us!
Faac electronic card remote control installation 790922
€270.87
€270.87

€270.87
Tax included

€270.87

Buy it within and receive it from Tuesday, 25 March
Two-year warranty
Easy return within 14 days

Features:

  • Type of power supply: Integrated
  • Supply voltage: 230V ~ (+6%-10%) 50(60) Hz
  • Max power: 10W
  • Max motor power: 1.000W
  • Max accessory load: 0,5A
  • Programming mode: Nr. 3 keys (+, -, F) and display, 'basic' and 'advanced' mode
  • Status indication: On display
  • Operating logics: Automatic, Automatic 'step', Semiautomatic, Semiautomatic 'step', Safety, Semiautomatic B, Man present C, Mixed logic B / C
  • Programmable functions: Logic of operation, Pause time, Thrust force, Direction of opening/closing, Starting torque, Braking, Failsafe, Pre-flashing, Warning light, Timed output, Electric lock in opening/closing, Safety logic in opening and closing, Encoder, Anti-crushing sensitivity, Slowdown, Partial opening time, Working time, Assistance request, Cycle counter
  • Working time: Programmable (from 0 to 4 minutes)
  • Pause time: Programmable (from 0 to 4 minutes)
  • Motor force adjustment: Adjustable on 50 levels
  • Terminal inputs: Open, Partial open, Opening safeties, Closing safeties, Stop, Coast, Power supply + ground, Limit switches open and ch, Encoder
  • Terminal board outputs: Blinker, Motor, 24V accessory power supply, 24V indicator lamp, Timeout_|r|_, Electric lock command, Traffic light, Failsafe
  • Quick connector: Plug in to 5-pin boards, MINIDEC, DECODER or RP receivers
  • Protection fuses: 2
  • Working environment temperature: -20°C ÷ +55°C
  • Enclosure compatibility: Mod. E - L - LM

Data sheet

Type:
Electronic Cards
