Faac Handy electromechanical swing automation kit 24V 105998
FAA 105998
8055195002942
Faac Handy SAFE 24V electromechanical swing automation kit consisting of:
- 2 pieces actuators S418 24V (code 104301)

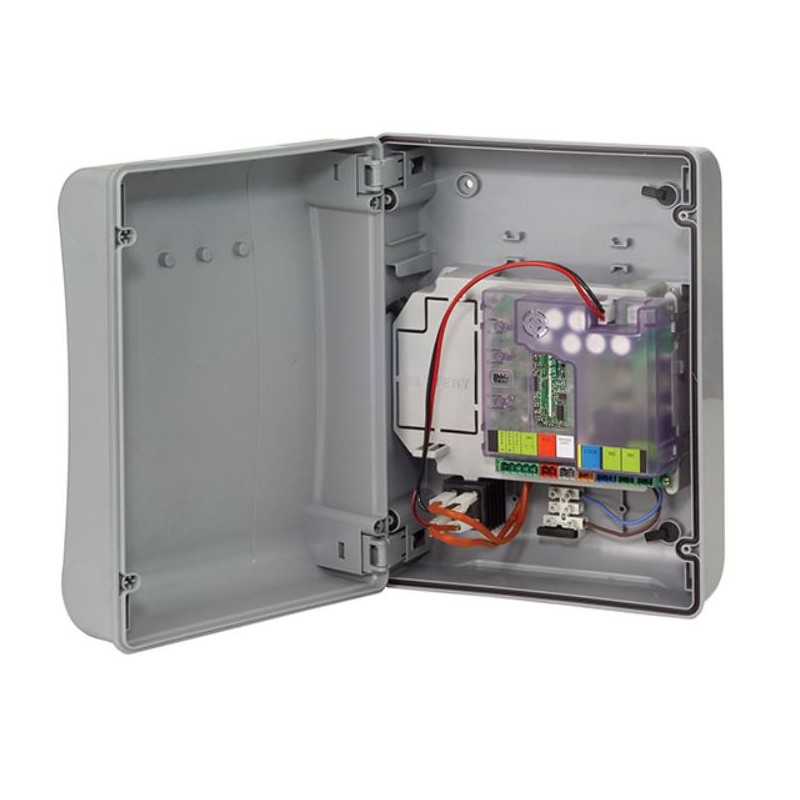

- 1 piece electronic equipment E024S with case (code 790286)

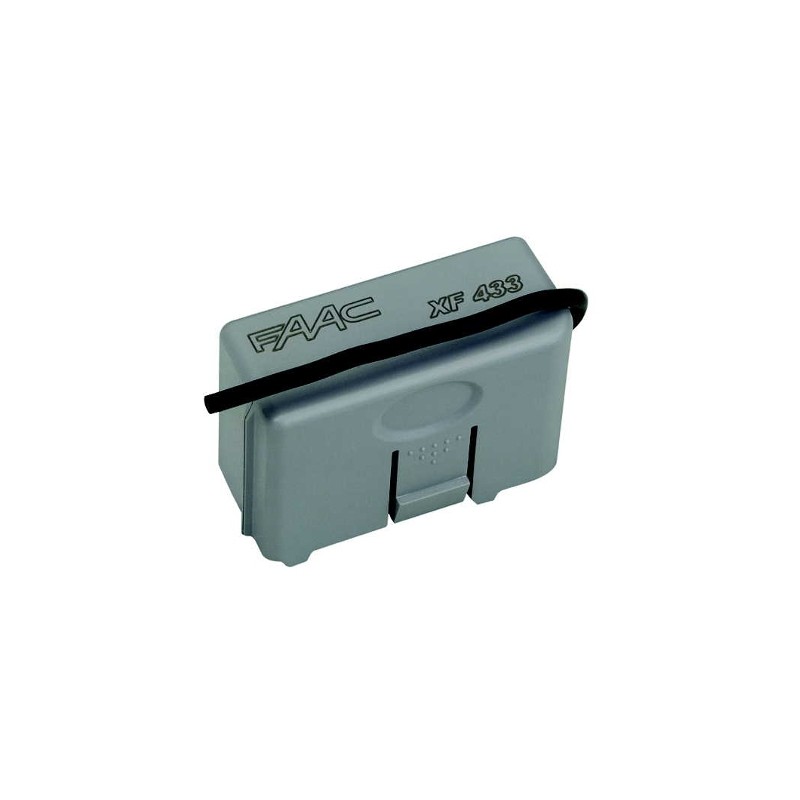

- 1 piece XF 433 MHz receiver (code 787831)
- 1 piece XLED flasher (code 410029)

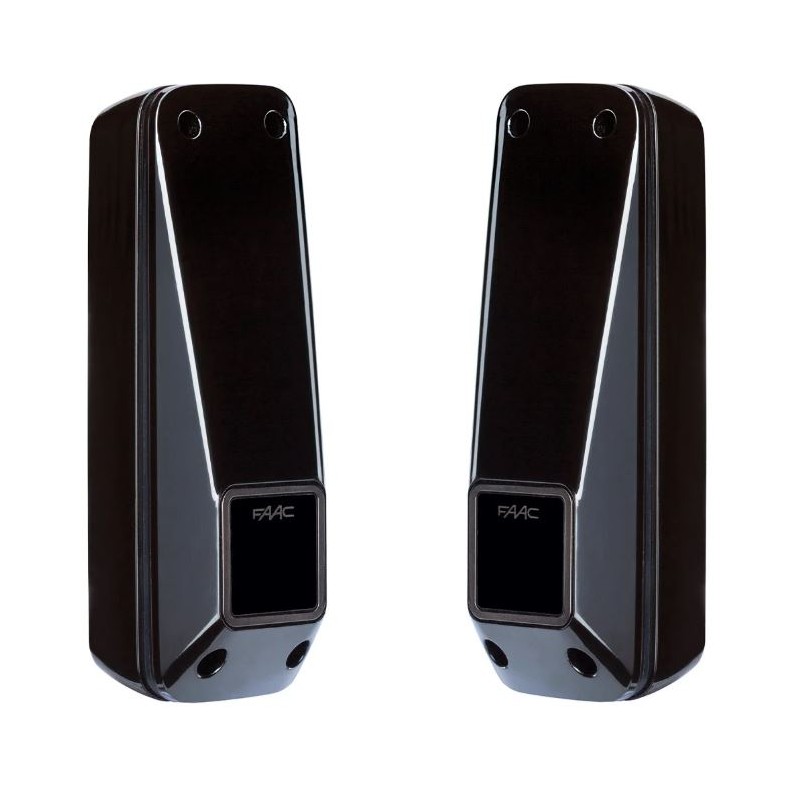

- 1 pair of XP 20B D photocells (part number 785103)
- 1 piece key and control button XK10 B (code 401304)
- 1 piece custom key lock (code 71275101)
- 1 piece 2-channel XT2 433 SLH LR transmitter (code 787007)
- 1 piece automatic "FAAC" sign
Frequency of use continuous use Max single leaf width 2.3 - 2.7 m (with electric lock).
Faac Handy electromechanical swing automation kit 24V 105998
€555.70
€555.70
Tax included
Tax included
Items Available: 52
: 30
Kit component specifications:

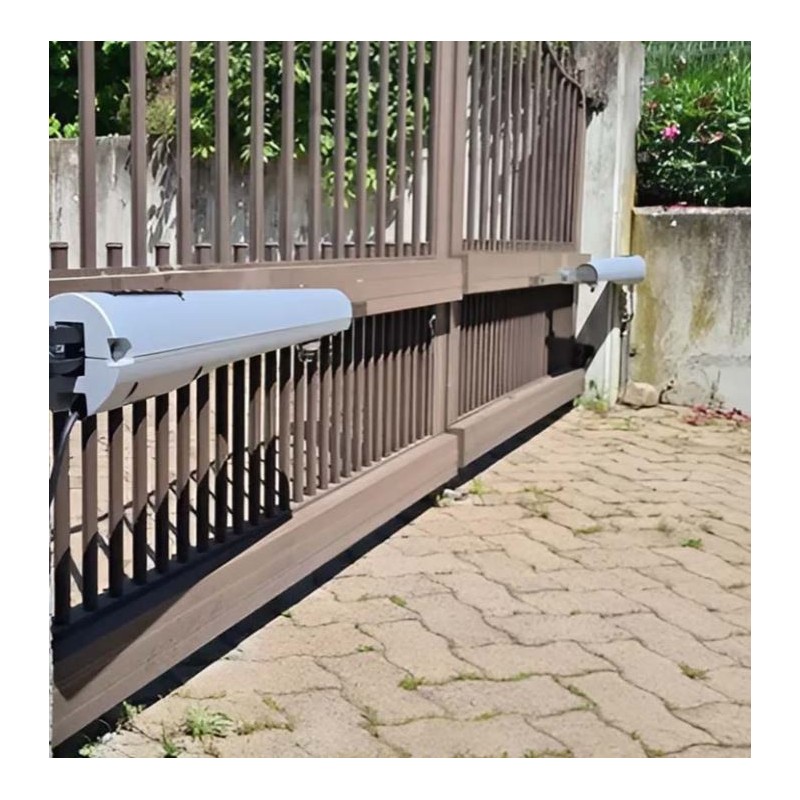

2-piece S418 24V actuators (part number 104301): High adjustable movement speed, non-welding "multi-position" mounting bracket, built-in mechanical stops on opening and closing (possibility of not installing mechanical stops).
- Mains supply voltage: 220-240V~ 50/60 Hz
- Electric motor: with brushes 24V
- Max power: 35 watts
- Max pushing force: 1800 N
- Max stem speed: 37 mm/s (with E124)
- Stem stroke: 350 mm (390 mm without stops)
- Max leaf opening angle: 110°
- Ambient operating temperature: -20°C ÷ + 55°C
- Degree of protection IP54
- Weight 6 kg
- Frequency of use: Continuous use
- Max leaf width: 2.3 m (2.7 m with electric lock)
- Fixing brackets: rear screw-on and adjustable attachment - front screw-on and adjustable attachment
- Dimensions (WxDxH): 823 x 104 x 137 mm
- Mains supply voltage: 220-240V~ 50/60 Hz
- Max power: 4 watts
- Max motor power: 150 W x 2
- Max accessory load: 250 mA - 400 mA BUS 2easy
- Programming: Programming via push buttons
- Operating logics: A, E, AP, EP, A1, B, C
- Programmable functions: (*) Logic (A, E, AP, EP, A1, B, C), Speed (high/low)*, Pause time, Door 2 delay in closing
- Working time (time-out): 5 minutes (fixed)
- Pause time: Variable according to learning (max 10 min)
- Inputs in terminal block: Open A, Open B, Stop, BUS (I/O)
- Terminal board outputs: Motors, Flashing lights, Accessory power supply, Electric lock, Service light contact (90 sec fixed)
- Quick connector: Battery power supply, XF 433 or XF 868 module
- Built-in radio coding: DS, SLH, RC, LC (max 250 channels)
- Protection fuses: F1 = self-resetting - F2 = T2A-250V
- Ambient operating temperature: -20°C ÷ +55°C

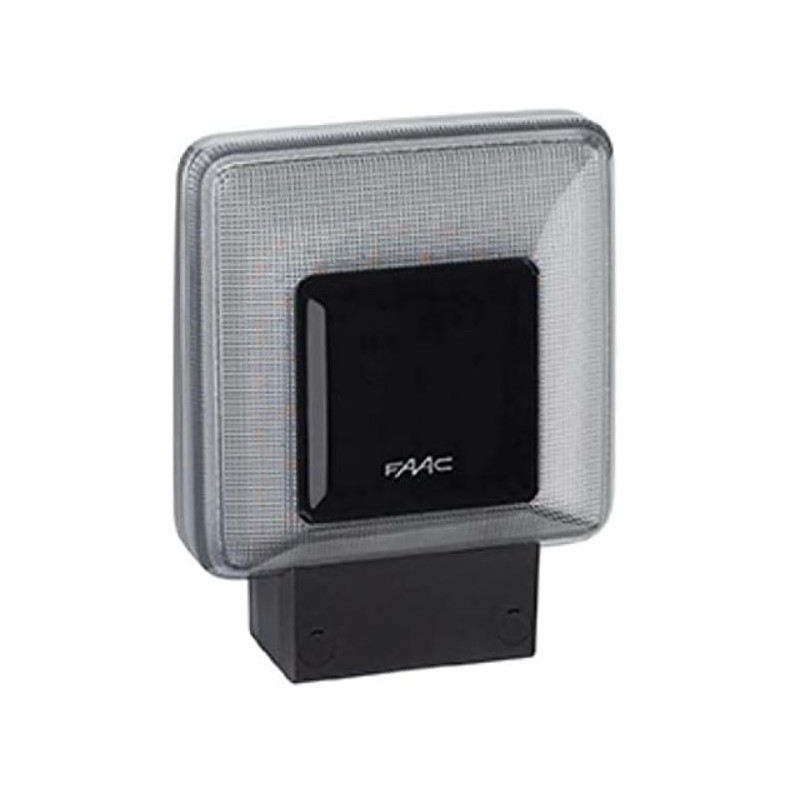

1 piece XLED flasher (code 410029): Italian design suitable for any architectural context, equipped with 40 LEDs to ensure visibility even in broad daylight. One version for power supply 24VDC, 230VAC, 115VAC, thanks to the integrated antenna, XLED is compatible with both 433Mhz and 868 Mhz frequency receivers. Suitable for column or side-mounted installations.
- Mains supply voltage: 230 - 115 - 24V
- Degree of protection IP54
- Ambient operating temperature -20°C to +55°C
- Dimensions (WxDxH) 135 x 55 x 165 mm
- Number of high-brightness LEDs: 40
- Supply voltage: BUS 2easy, 2-wire non-polarized 24V
- Max photocell distance: 20 meters
- Type of installation: wall-mounted
- Degree of protection: IP54
- Self-alignment angle: ± 7° (20 m) ± 13.5° (5 m)
- Horizontal orientation angle: -90° +90°
- Dimensions (WxDxH): 41.5 x 42.5 x 130 mm
- Current consumption: Rx (10 mA) + Tx (10 mA)
- Ambient operating temperature: -20°C ÷ +55°C

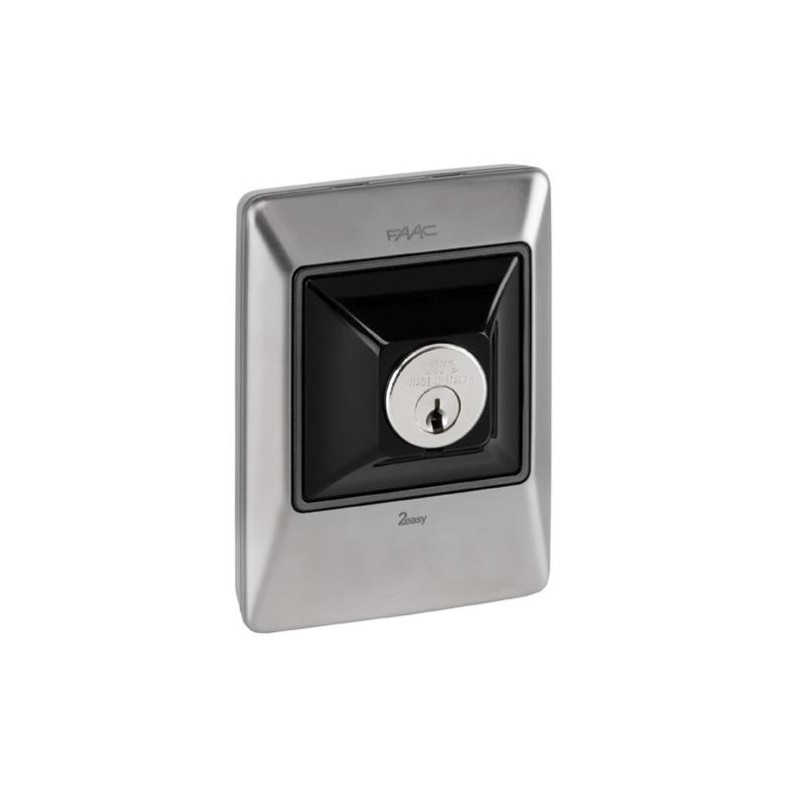

1 piece key and control button XK10 B (part number 401304): System type: simple pulse employers.
- Type of installation: wall-mounted or column-mounted
- Changeover microswitches: 1
- Contact rating: 100 mA
- Degree of protection: IP54
- Ambient operating temperature: -20/+45°C
- Dimensions (WxDxH): 72 x 35 x 100 mm
SLH (self Learning Hopping code): code changes each time the transmitter is used. an algorithm recognizes and validates. Advantages: cloning almost impossible. Ability to replicate coded transmitters, even remotely from the receiver, with the patented SELF LEARNING system (transmitter to transmitter), simply by pressing keys according to a suitable sequence.
LR = LONG RANGE: transmitters are able to cover almost DOUBLE the current distance thanks to an additional FAAC patent on the electronics; the SLH LONG RANGE transmitter, each time the control buttons are pressed, in real time performs a sensing of the surrounding environment (e.g., hand position, presence of electrical noise, etc...) and automatically reconfigures the electronics maximizing, with each transmission, the radiated power. Fully compatible with previous SLHs.
How to choose your remote control?
First check if the remote in your possession is a Master, press any button and check the flashing of the led: if it emits a short flash before turning on steady light then it is a MASTER, if on the other hand the led turns on steady light immediately then it is a SLAVE, in this case you cannot use it to activate the new remote control, you must contact the installer or administrator of the system or get a Master.
Faac produced almost identical remote controls in both 868 Mhz and 433 Mhz frequency, first check the writing on the back, if it was no longer readable pay attention to these small differences:
for the XT2 and XT4 models that exist in both white and black color, in the white remote control if the FAAC logo and the circle that surrounds the buttons are in black color the frequency is 868 Mhz, if they are in gray color the frequency is 433 Mhz;;; in the black remote control if the FAAC logo and the circle that surrounds the buttons are in white color the frequency is 868 Mhz, if they are in gray color the frequency is 433 Mhz. The previous version of the XT2 433 model with dicoe 787003 did not have the LR abbreviation and did not have the small silkscreen print above the LED, but it is the same product;
for the TML2 and TML4 models if the FAAC logo is gray in color the frequency is 868 Mhz, if it is blue in color the frequency is 433 Mhz;
for the models T2 and T4 if the remote control is anthracite gray with black keys the frequency is 868 Mhz, if the remote control is black with ner keys the frequency is 433Mhz;
there is a similar remote control, the XT4 433 RC (not SLH) not compatible, you can distinguish it by the different dorma of the keys circle and by the led that is round instead of oval.

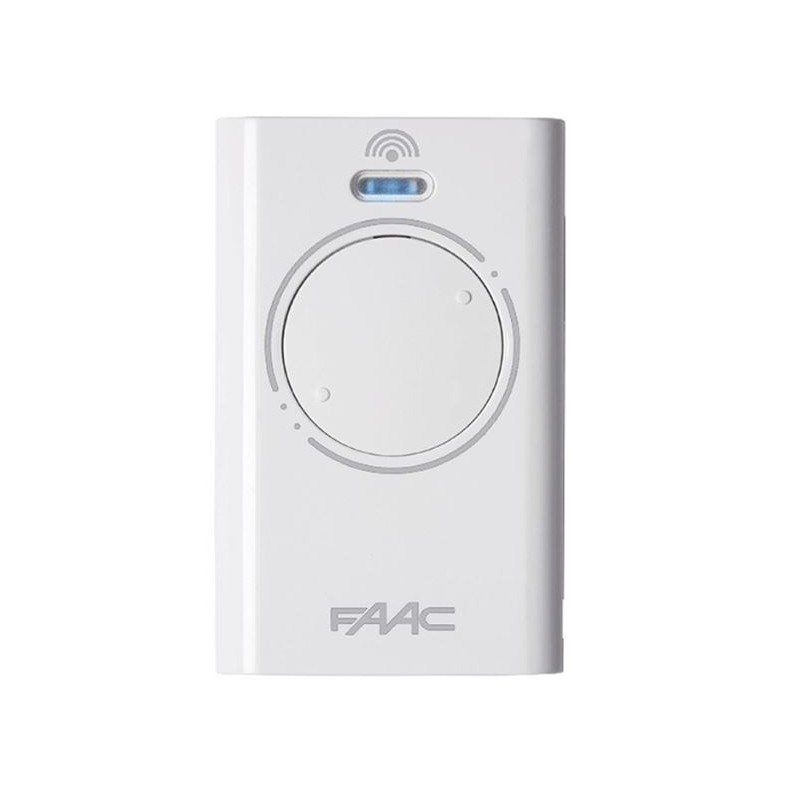

Features:
- Working frequency 433.92 MHz
- Number of keys 2
- Remote control color white
- Faac inscription color gray
