Faac 844 sliding gate motor up to 1800 kg 109926


FAA 109926 8055195064490

The FAAC 844 sliding gate motor is a robust and reliable solution for the automation of large, heavy-duty gates. Thanks to its oleodynamic technology and the power of its 230V motor, it can handle gates weighing up to 1,800 kg, ensuring safety, smoothness and durability.

  • Hydraulic motor designed for intensive use

  • Compatible with gates up to 1800 kg

  • Sliding speed up to 12 m/min

  • 230V power supply for high performance

  • Compatible with 578D and E145S electronic boards (not included)

  • Compact dimensions: 388 x 277 x 155 mm

  • Sprocket not included, compatible with Z16 or Z20


This item replaces the previous model 844R (part number 109838).

Do you have questions about this product or did you not find what you were looking for? Ask us!
Faac 844 sliding gate motor up to 1800 kg 109926
€697.84
€697.84

€697.84
Tax included

€697.84

Buy it within and receive it from Tuesday, 25 March
Two-year warranty
Easy return within 14 days

Faac 844 motor power and high performance


High performance for intensive use

The FAAC 844 is designed for maximum reliability in residential, industrial and commercial settings. Thanks to its hydraulic technology, it offers smooth and quiet movements, reducing wear and tear over time and improving system life.


Power and versatility

With a 230V power supply, this motor offers high power to move sliding gates up to 1,800 kg. The opening speed varies between 9.5 and 12 m/min, ensuring fast and safe opening.


Accessories compatible with Faac 844 motor

Compatibility with electronic boards

The FAAC 844 motor is compatible with the 578D (part number 790922) and E145S (part number 790076) electronic boards, which provide advanced motion management and safety features. The boards are not included and must be purchased separately.


Sprocket to be purchased separately

The motor does not include the sprocket, but it is compatible with models:

  • Z16 (part number 719130)
  • Z20 (part number 719167)


Technical specifications of the 844 motor:

  • Power supply: 230V
  • Max leaf length 40 m
  • Stop space 30 mm
  • Degree of protection IP44
  • Max. thrust force 1300 N
  • Inrush capacitor 18 µF not included
  • Ambient operating temperature -20° ÷ +55°C
  • 120°C self-restoring thermal protection
  • Weight 16.9 kg
  • Maximum leaf weight: 1800 kg
  • Opening speed: 9.5 to 12 m/min
  • Technology: Hydraulic
  • Electronic board compatibility: 578D, E145S (not included)

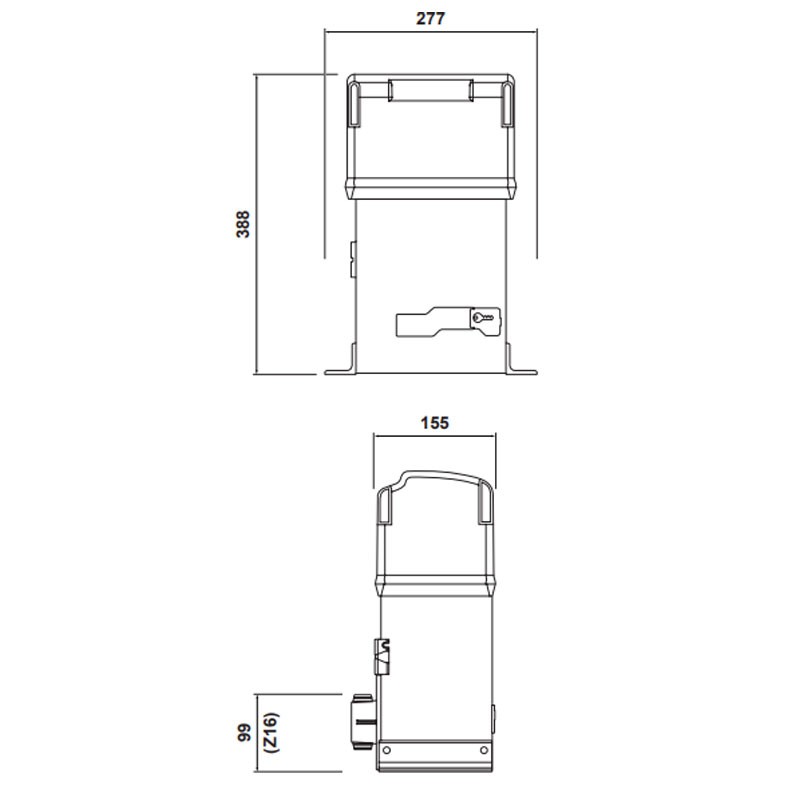

  • Dimensions: 388 x 277 x 155 mm
  • Pinion: Not included (compatible with Z16 and Z20)
